51 16... Removing and installing / replacing front insert (on storage compartment trim)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR STORAGE COMPARTMENT .

Security version:

Remove INTERCOM SYSTEM SWITCH

Build date up to 03/2007:

Release screws (1) and remove insert (2).

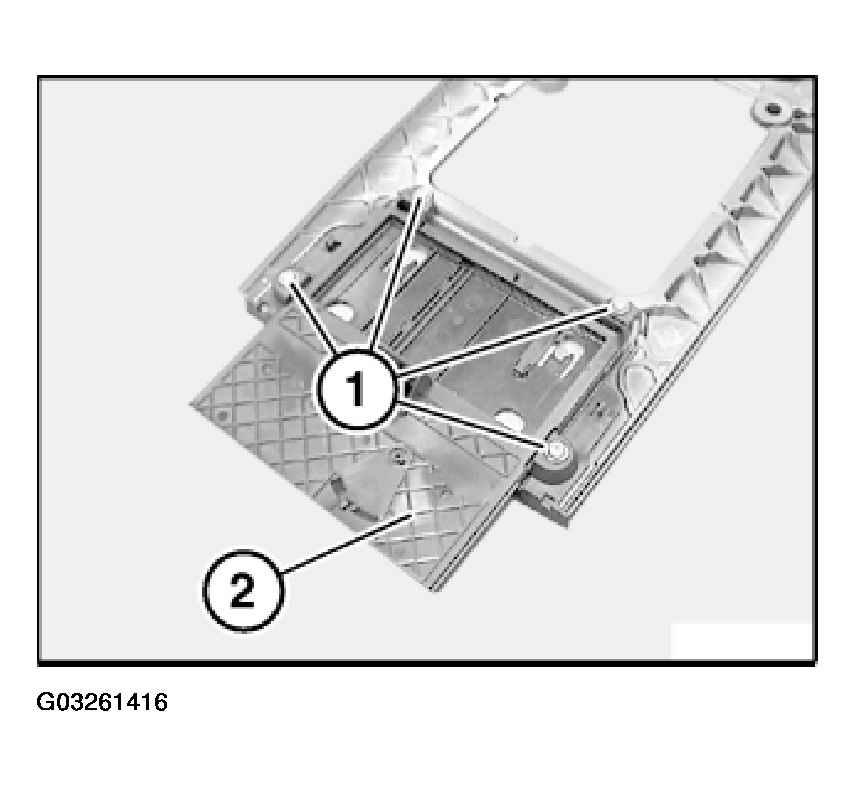

Fig 1: Removing Screws

G03261416

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully release pin (1) from catch (2) and remove decorative trim from insert (3).

Installation:

Pin (1) and catch (2) must not be damaged.

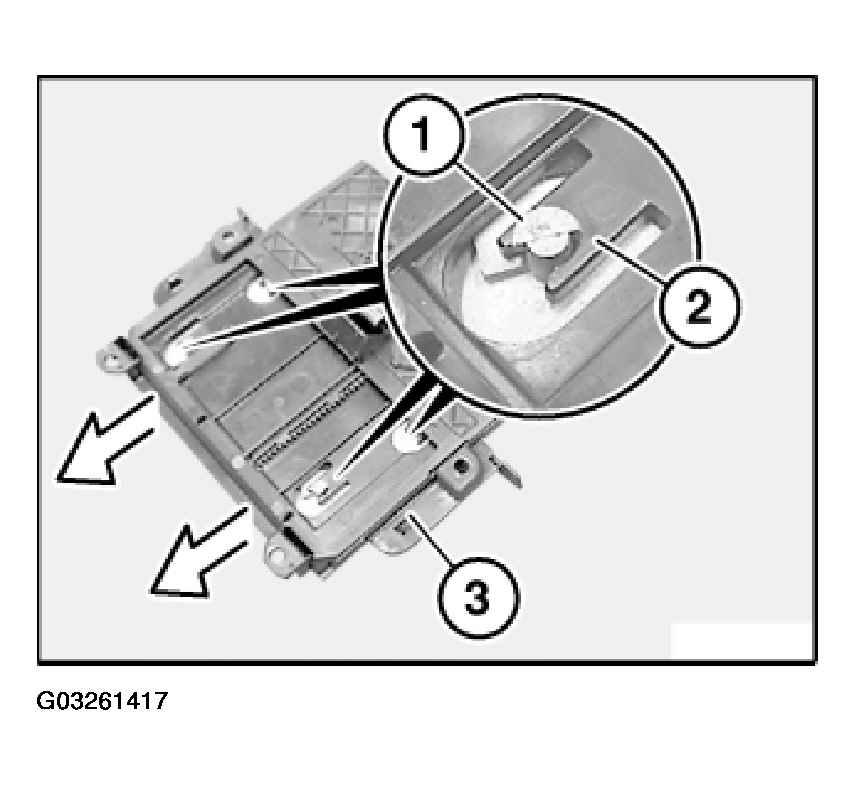

Fig 2: Removing Decorative Trim

G03261417

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 03/2007:

Release screws (1) and remove insert (2).

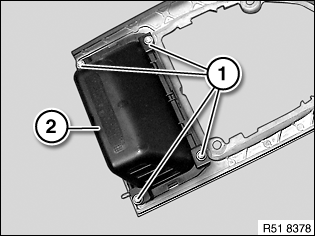

Fig 3: Identifying Insert And Screws

G00460765

Courtesy of BMW OF NORTH AMERICA, INC.
