51 16 201 Replacing storage compartment

Necessary preliminary tasks:

• Remove STORAGE COMPARTMENT .
• Remove CONTROLLER .

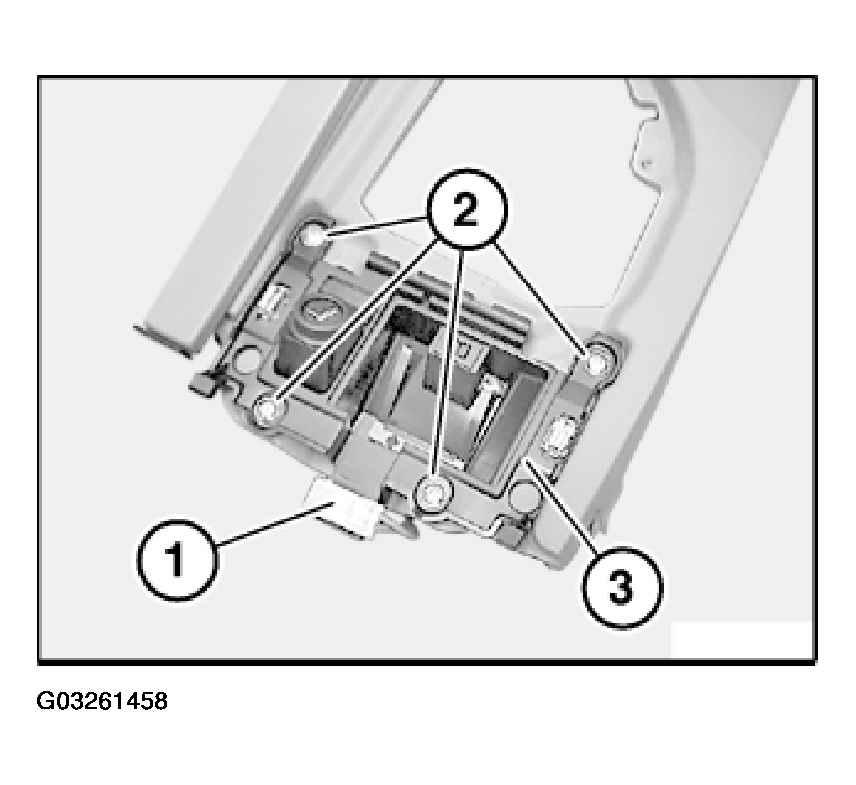

Disconnect plug (1).

Release screws (2) and lift out insert (3).

Fig 1: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

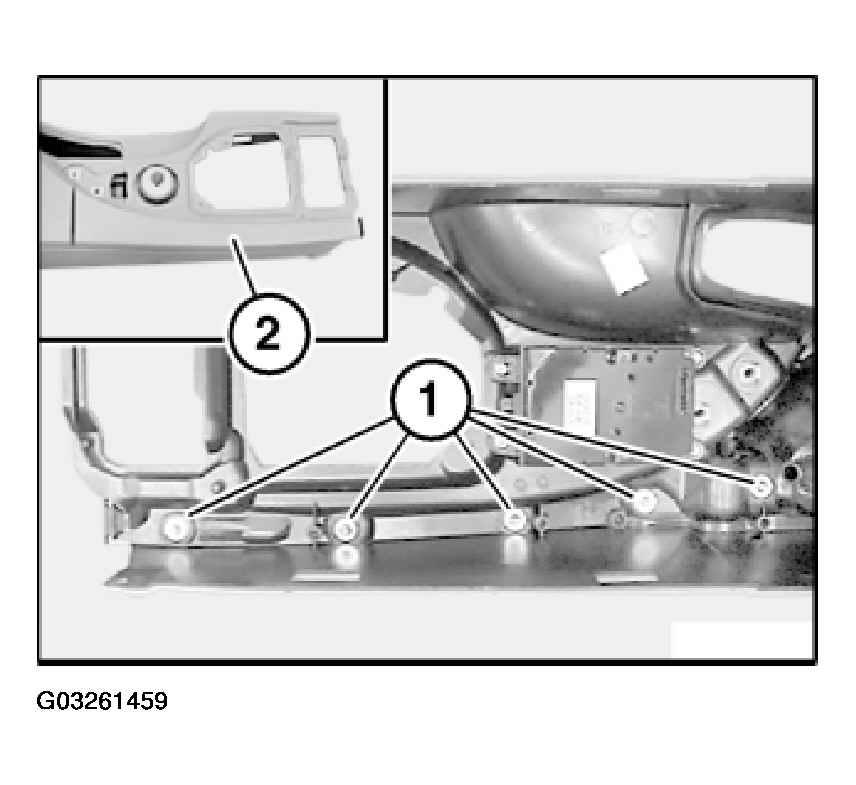

Release screws (1) on inside of storage compartment and remove trim (2).

Fig 2: Removing Screws On Inside Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

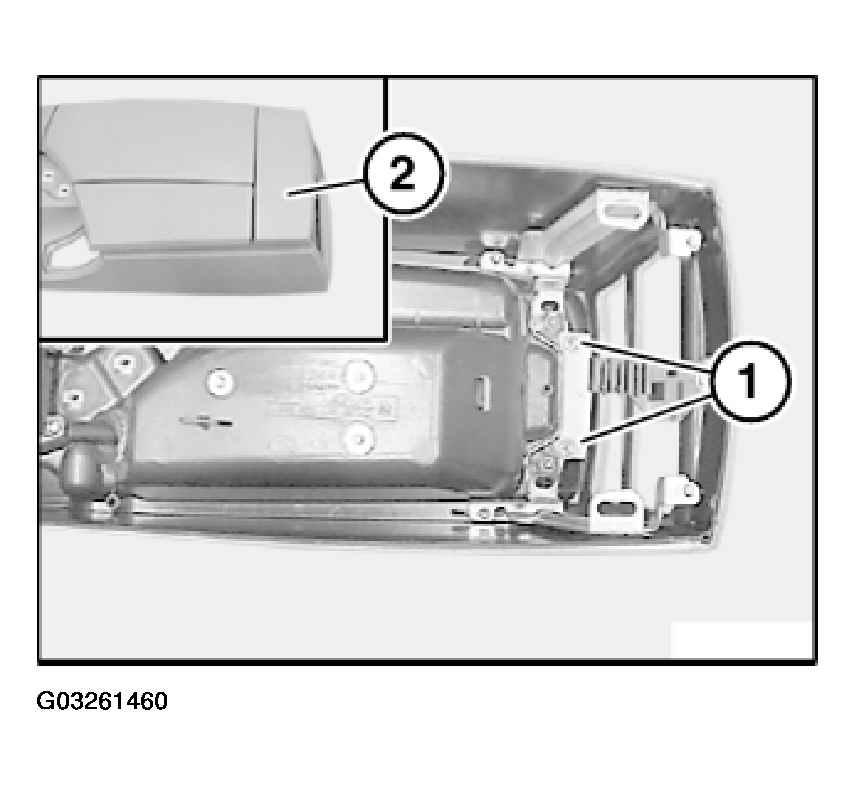

Release nuts (1) on inside of storage compartment and remove trim (2).

Fig 3: Removing Nuts On Inside Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

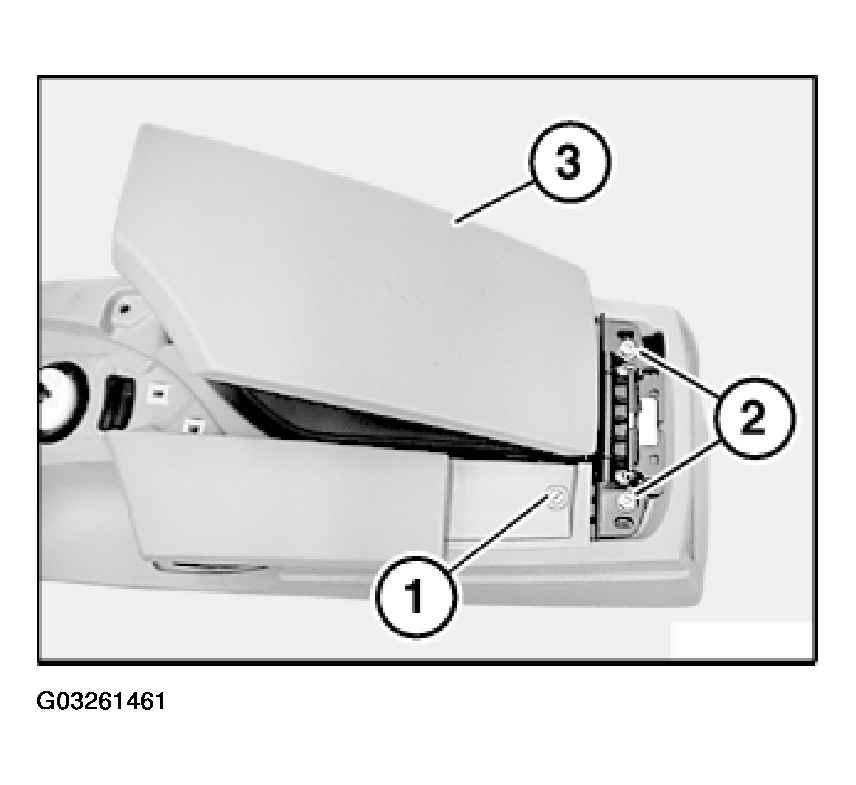

If necessary, lever out trim (1) and release screw underneath.

Release screws (2) and feed out guide cover (3) towards rear.

Fig 4: Removing Guide Cover

Courtesy of BMW OF NORTH AMERICA, INC.

If equipped with center armrest/storage tray:

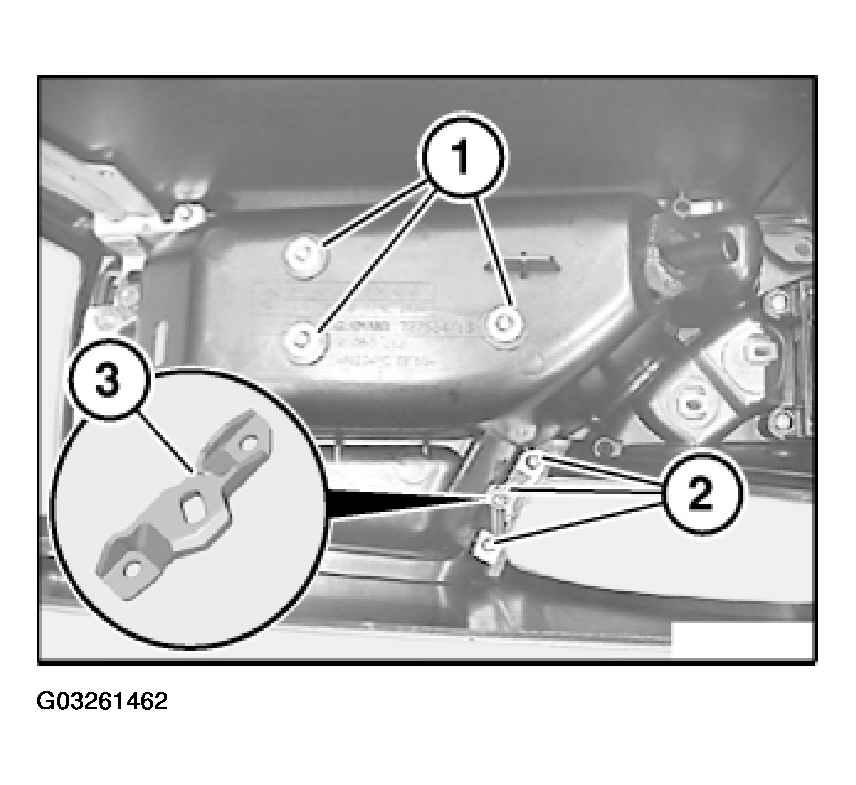

Release screws (1).

Release screws (2) and remove holder (3).

Fig 5: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

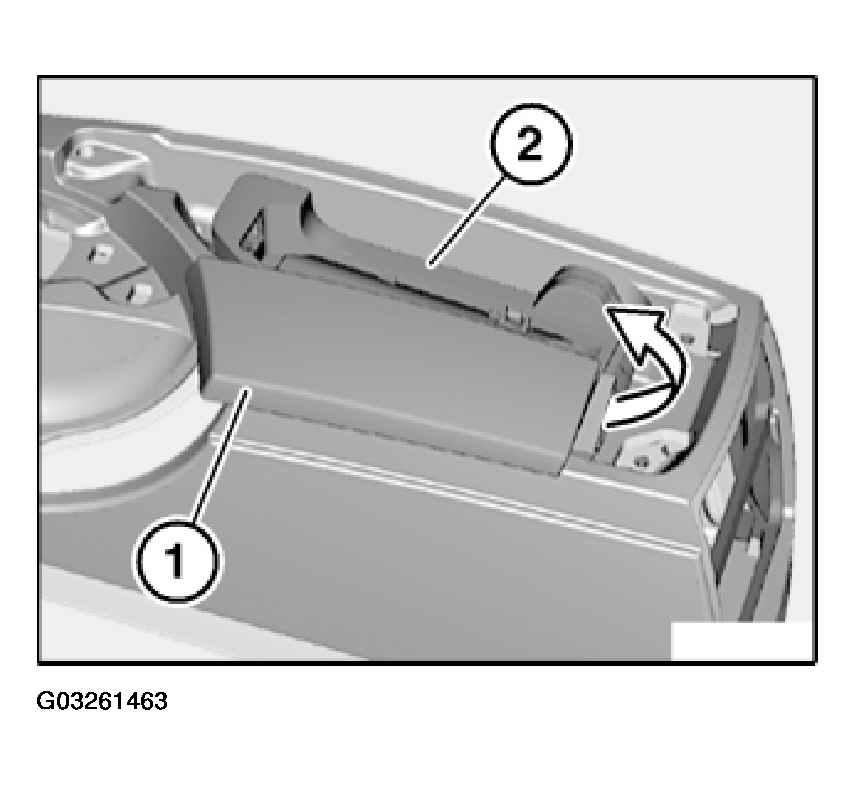

Feed out center armrest (1) with storage tray (2) towards top rear.

Fig 6: Removing Centre Armrest With Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Security version:

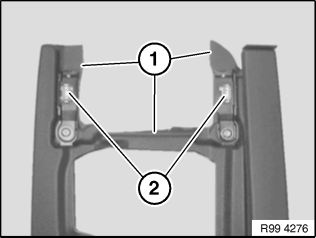

Cut storage compartment as illustrated (1).

If necessary, replace faulty retaining clips (2).

Fig 7: Identifying Cut Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
