51 71... Removing and installing/replacing multifunction pan (M5)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BATTERY

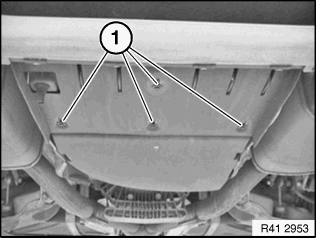

Release screws (1).

Fig 1: Identifying Screws

G00530651

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

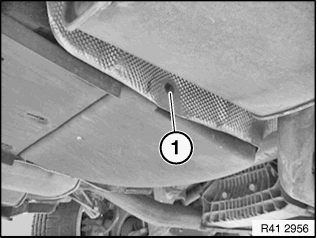

Release screws (1).

Fig 2: Identifying Screws

G00530652

Courtesy of BMW OF NORTH AMERICA, INC.

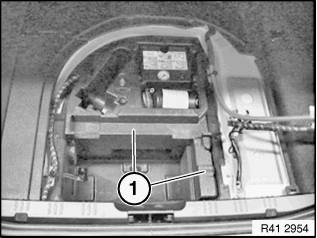

Remove insert shells (1).

Fig 3: Identifying Insert Shells

G00530653

Courtesy of BMW OF NORTH AMERICA, INC.

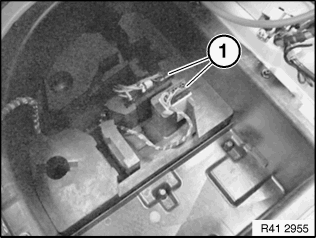

Remove control units (1), lay to one side and secure.

Fig 4: Identifying Control Units

G00530654

Courtesy of BMW OF NORTH AMERICA, INC.

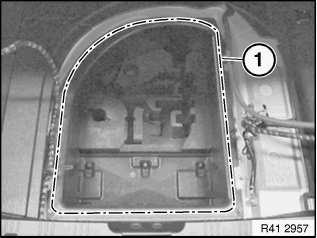

Release nuts along line (1) and remove multifunction pan.

Tightening torque: 3 Nm

Fig 5: Locating Nuts Along Line

G00530655

Courtesy of BMW OF NORTH AMERICA, INC.

Gasket (1) on multifunction pan must not be damaged; replace multifunction pan if necessary.

Fig 6: Identifying Gasket

G00530656

Courtesy of BMW OF NORTH AMERICA, INC.
