51 17 400 Removing and installing/replacing bump stop with ejector for filler flap

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Release cover (1).

Press catches (2) together and pull out ejector (3).

Installation:

Install ejector (3) with fitted cover (1).

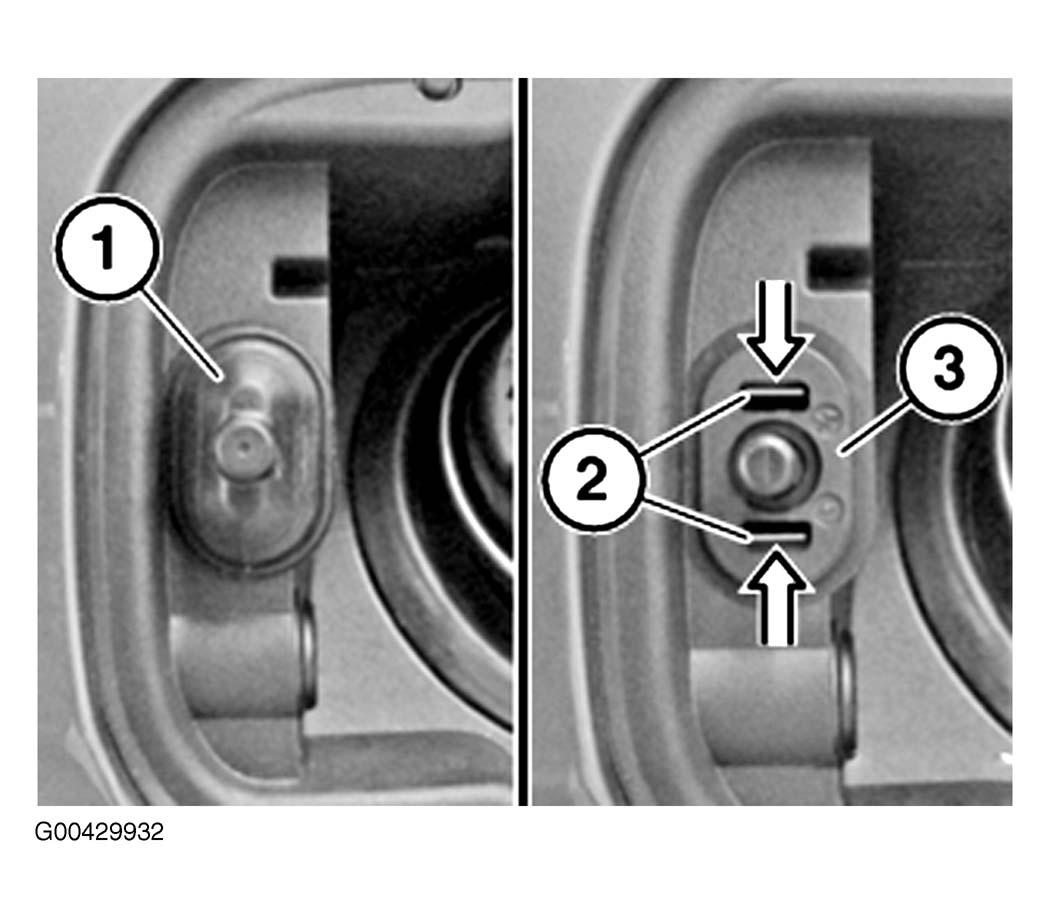

Fig 1: Pulling Out Ejector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Make sure cover (3) is correctly seated on ejector (2).

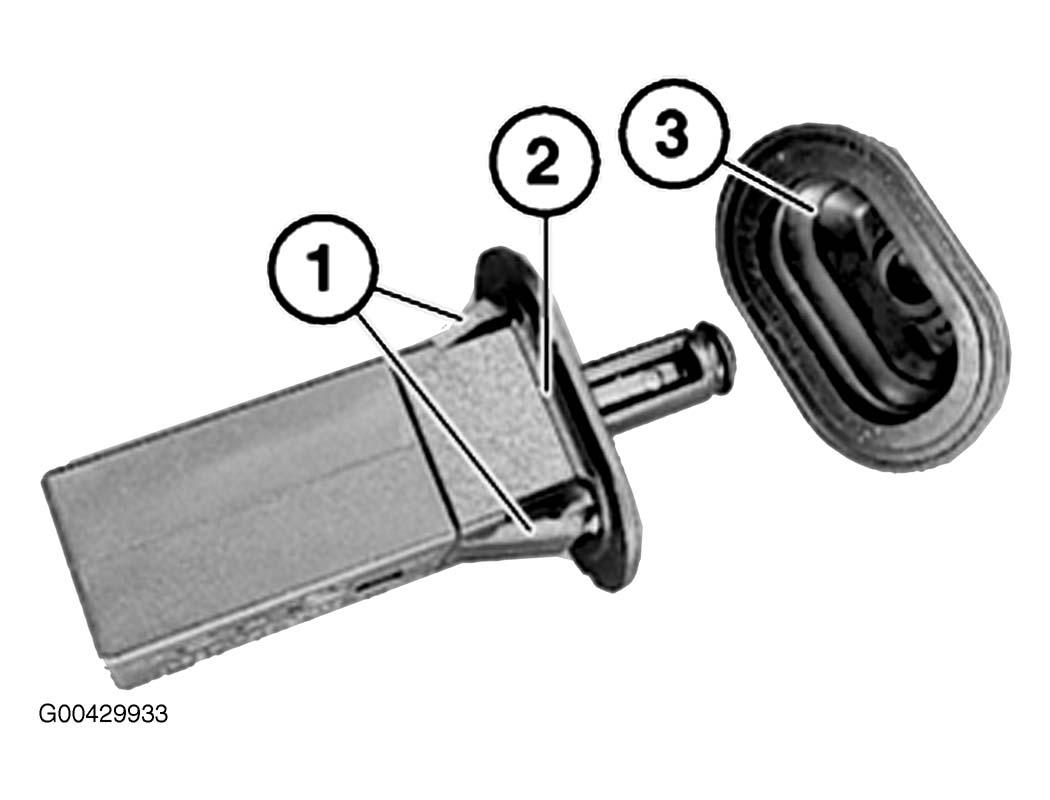

Fig 2: Ensuring Cover Is Correctly Seated On Ejector

Courtesy of BMW OF NORTH AMERICA, INC.
