51 45... Overview of instrument panel
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

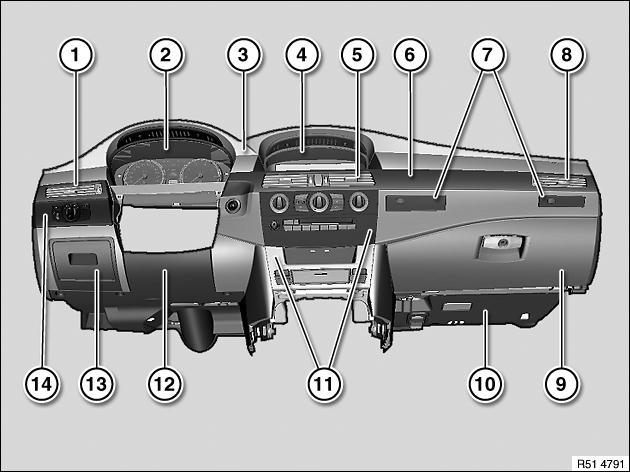

OVERVIEW OF INSTRUMENT PANEL - DESCRIPTION
| 1 | Fresh-air grille, left/decorative strip | 8 | Fresh-air grille, right |
| 2 | Instrument cluster | 9 | Glovebox |
| 3 | Dashboard trim panel | 10 | Instrument panel trim, bottom right |
| 4 | On-board monitor | 11 | Trim on instrument panel, middle |
| 5 | Fresh-air grille, middle | 12 | Panel for pedals |
| 6 | Decorative strip on instrument panel, right | 13 | Storage compartment, driver's side |
| 7 | Cup holder, front | 14 | Light operating unit |
