51 23 160 Removing and installing/replacing arrester hook on engine hood

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Raise bonnet/hood lid.

Release screws (1) and remove arrester hook (2).

Tightening torque: see 1AZ in 51 23 HOOD/BONNET LOCKS .

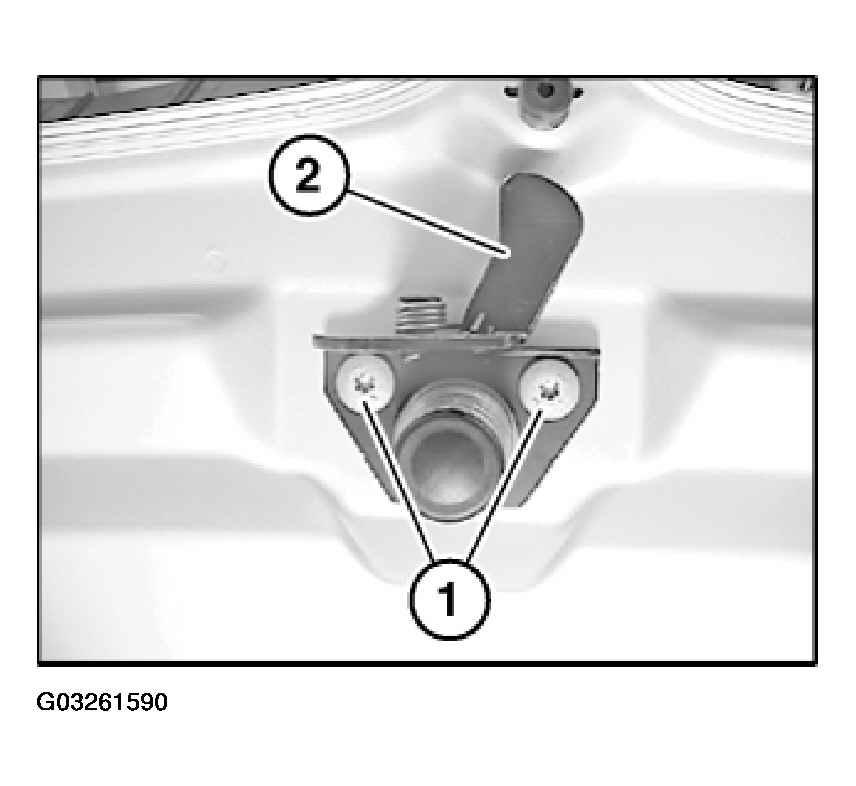

Fig 1: Removing Arrester Hook

Courtesy of BMW OF NORTH AMERICA, INC.
