51 23 110 Removing and installing/replacing left hood/bonnet lock

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

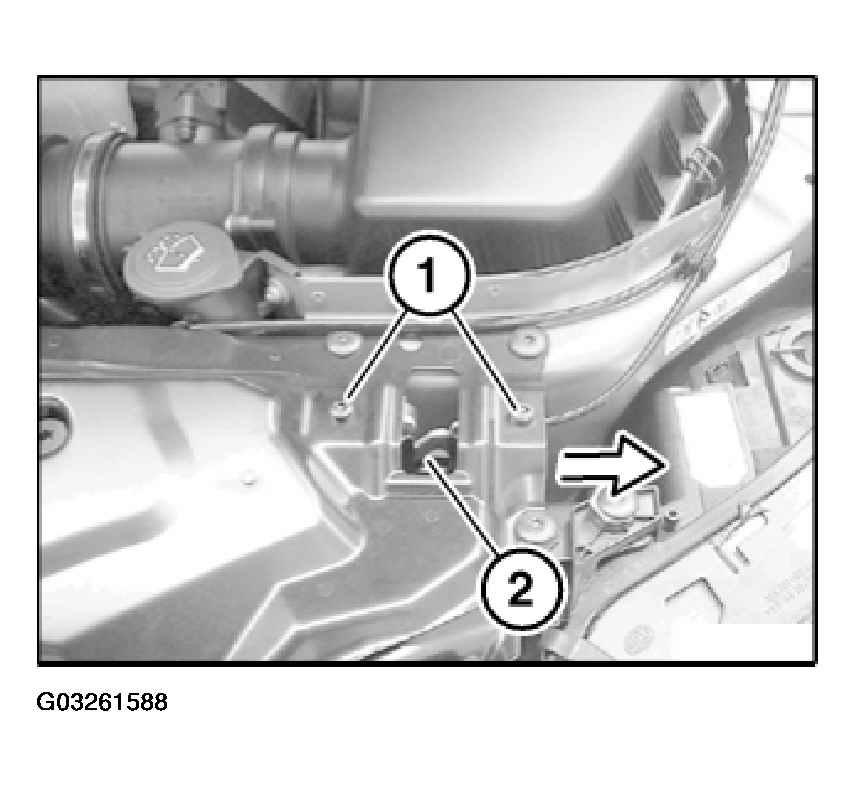

Release screws (1) and remove hood/bonnet lock (2) in direction of arrow.

Tightening torque: see 2AZ in 51 23 HOOD/BONNET LOCKS .

Fig 1: Removing Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

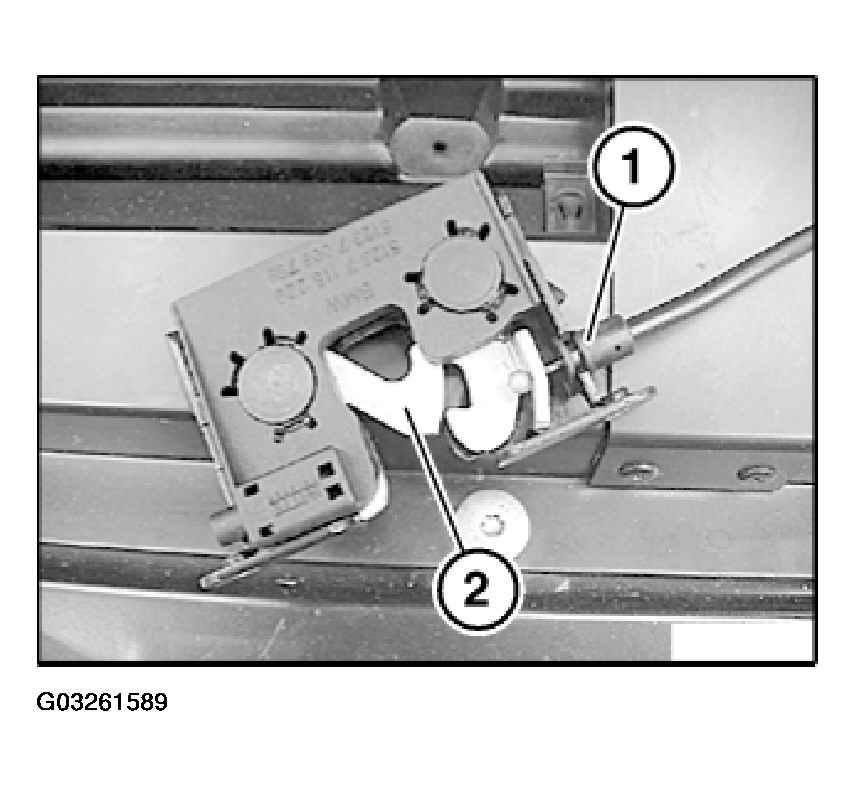

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (2).

Fig 2: Disconnecting Bowden Cable From Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
