51 32 420 Removing and installing/replacing trim on front door window frame, left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WINDOW CAVITY COVER STRIP ON OUTSIDE OF FRONT DOOR .

Partially detach rubber window seal (1) at rear.

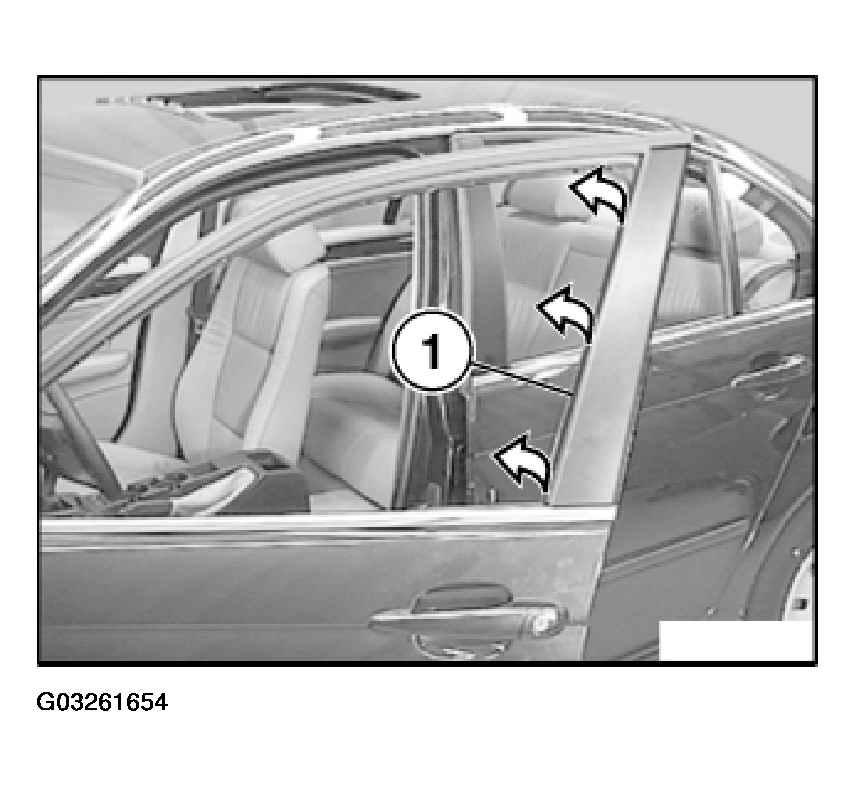

Fig 1: Removing Window Cavity Cover Strip On Outside Of Front Door

G03261654

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove finisher (2) and press approx. 3 mm towards rear.

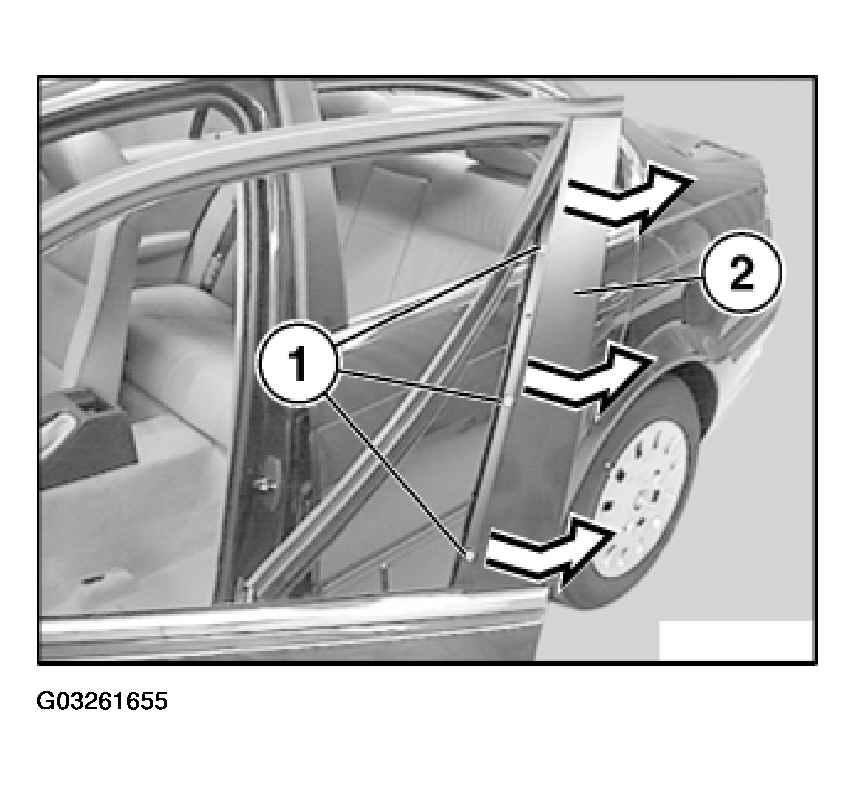

Fig 2: Removing Finisher

G03261655

Courtesy of BMW OF NORTH AMERICA, INC.

Remove finisher (1) towards top.

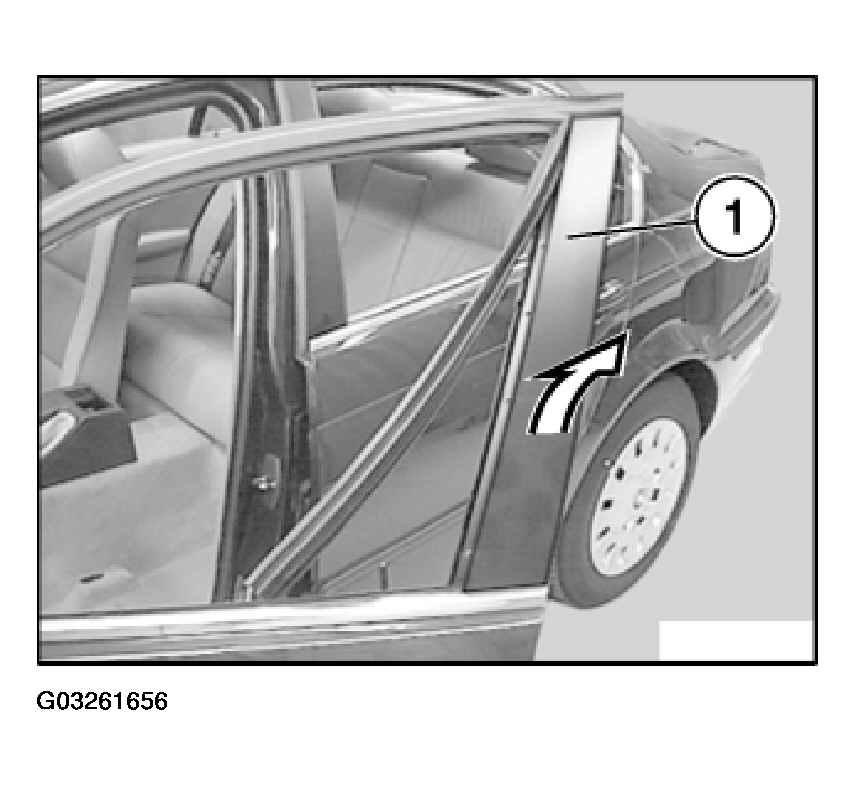

Fig 3: Removing Finisher Towards Top

G03261656

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All except Security version.

Following parts must not be damaged or missing:

1 Plastic nuts

2 Felt strip

3 Seal

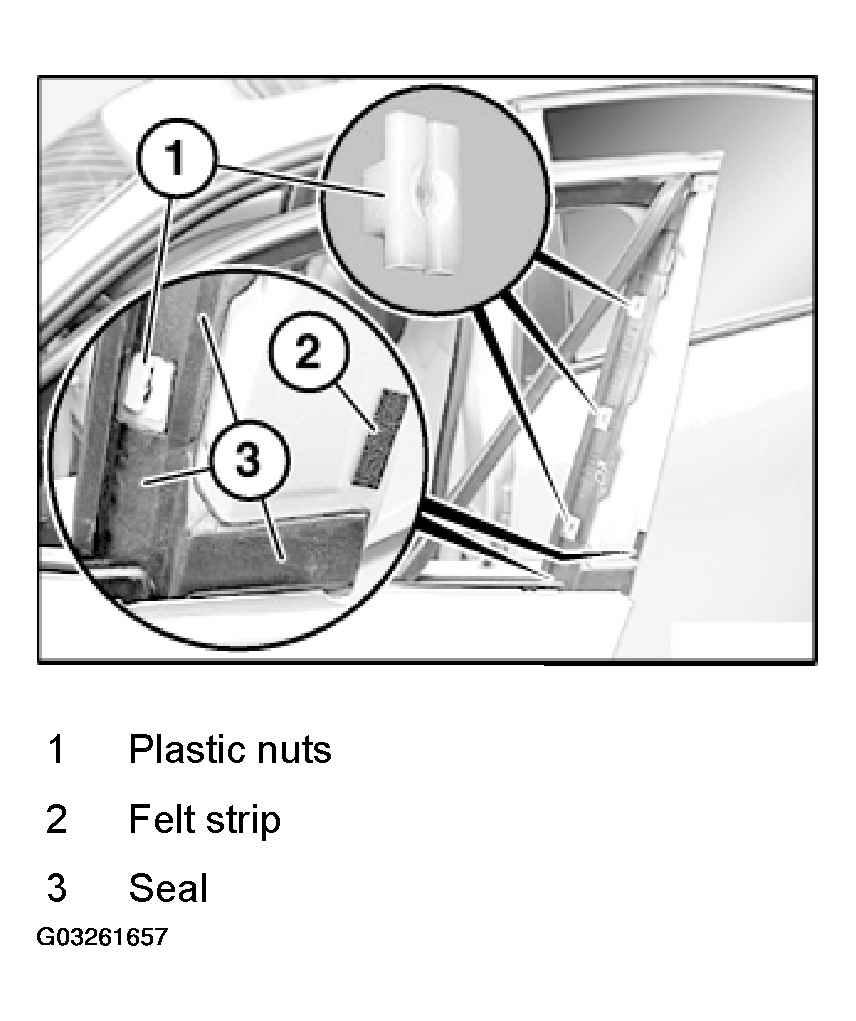

Fig 4: Installing Plastic Nuts And Seal

G03261657

Courtesy of BMW OF NORTH AMERICA, INC.

Security version:

M5 pull-in nuts (1) must not be damaged or missing.

Trim is designed as a protective cover and is screwed into place with M5 X 20 mm stainless steel screws without shims.

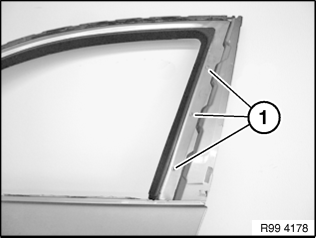

Fig 5: Identifying Trim

G00460257

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check finisher (1) for damage, replace if necessary.

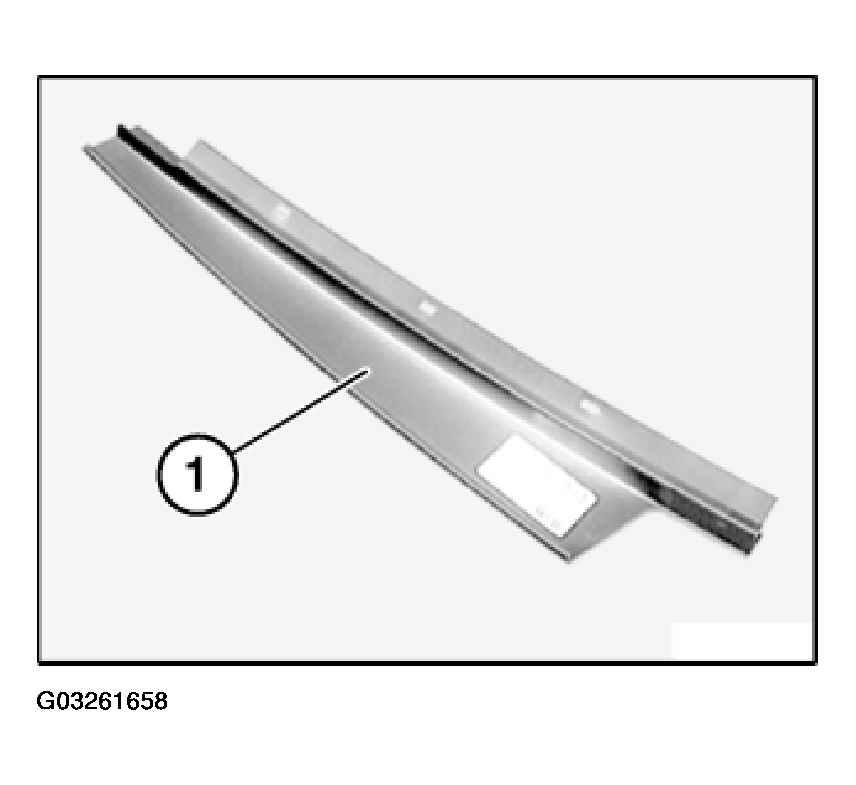

Fig 6: Checking Finisher For Damage

G03261658

Courtesy of BMW OF NORTH AMERICA, INC.
