51 32 390 Removing and installing/replacing decorative strip on front left or right door

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open door window.
Remove REAR-VIEW MIRROR on front door.

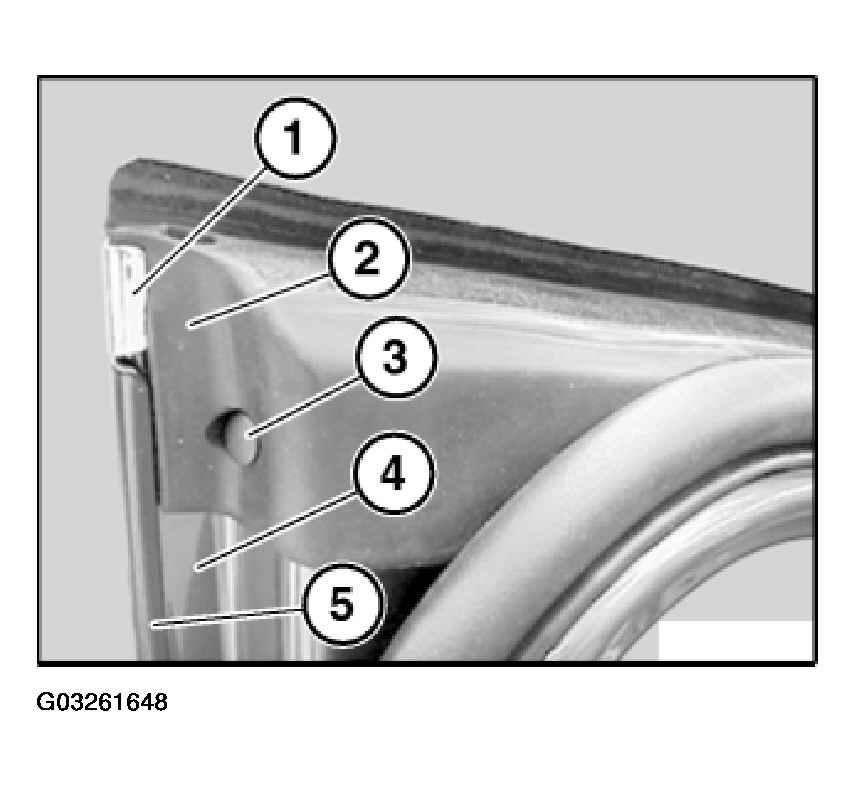

Lever out plastic rivet (3).

Lever seal (2) out of decorative strip (1).

Installation:

During installation, attach decorative strip (1) first at rear to door edge (4).

Decorative strip (1) must match trim (5).

Fig 1: Attaching Decorative Strip To Door Edge

G03261648

Courtesy of BMW OF NORTH AMERICA, INC.

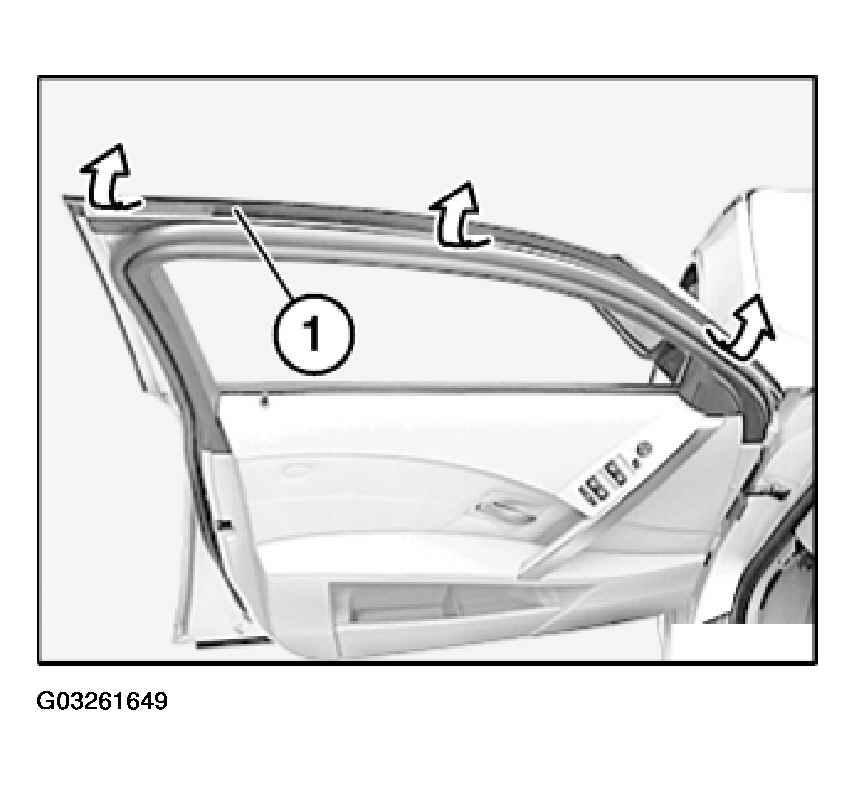

Lever out seal (1) from inside.

Fig 2: Removing Seal

G03261649

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

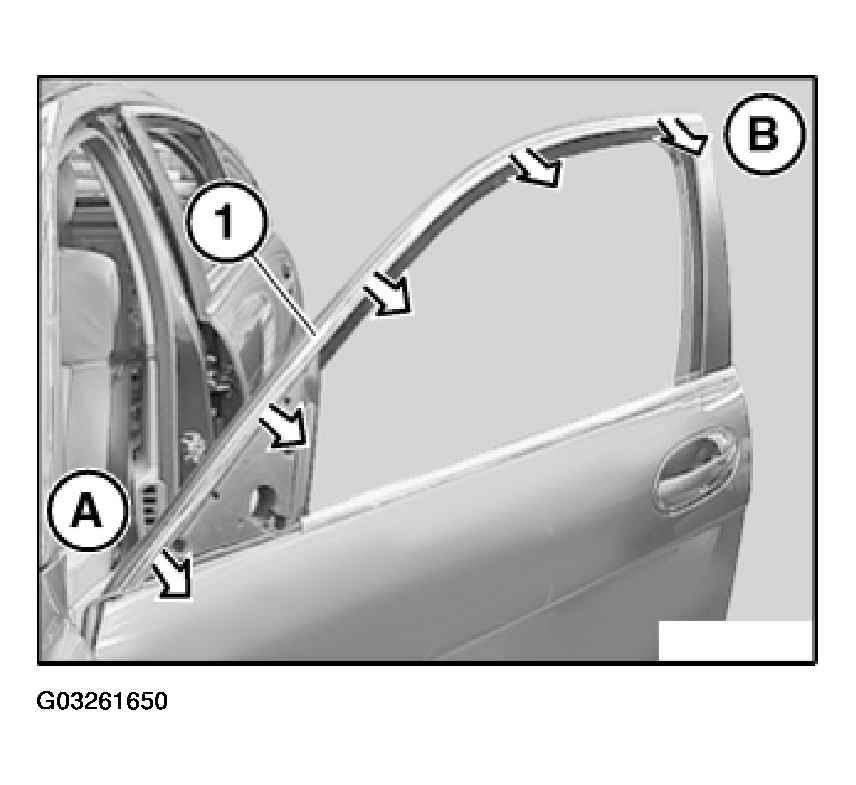

Start pulling off decorative strip (1) at front (A) and disconnect at rear (B).

Detach decorative strip (1) in direction of arrow.

Fig 3: Pulling Off Decorative Strip

G03261650

Courtesy of BMW OF NORTH AMERICA, INC.

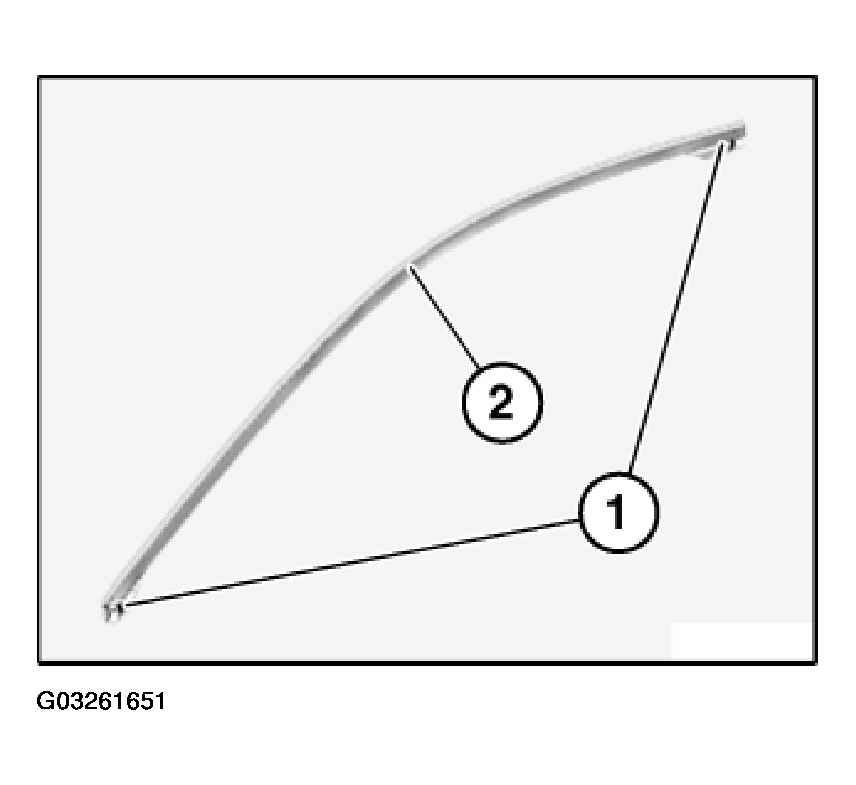

Detach seal (1) from decorative strip (2).

Fig 4: Removing Seal From Decorative Strip

G03261651

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

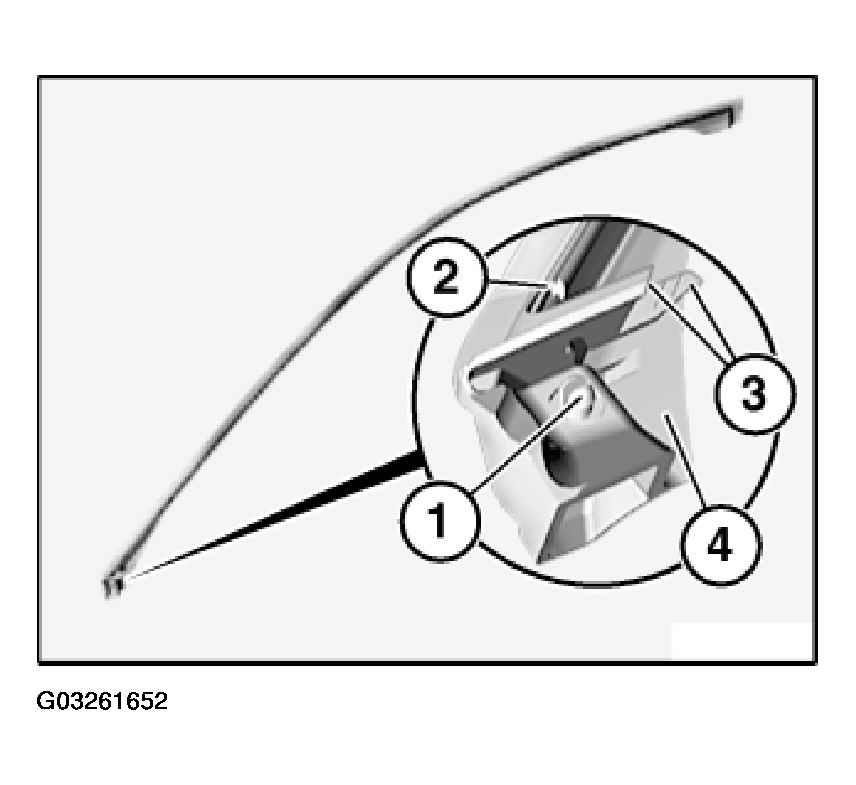

Following parts of decorative strip on window frame (4) must not be damaged or missing:

1 Plastic rivet

2 Rubber profile

3 Seal

Fig 5: Installing Parts Of Decorative Strip On Window Frame

G03261652

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

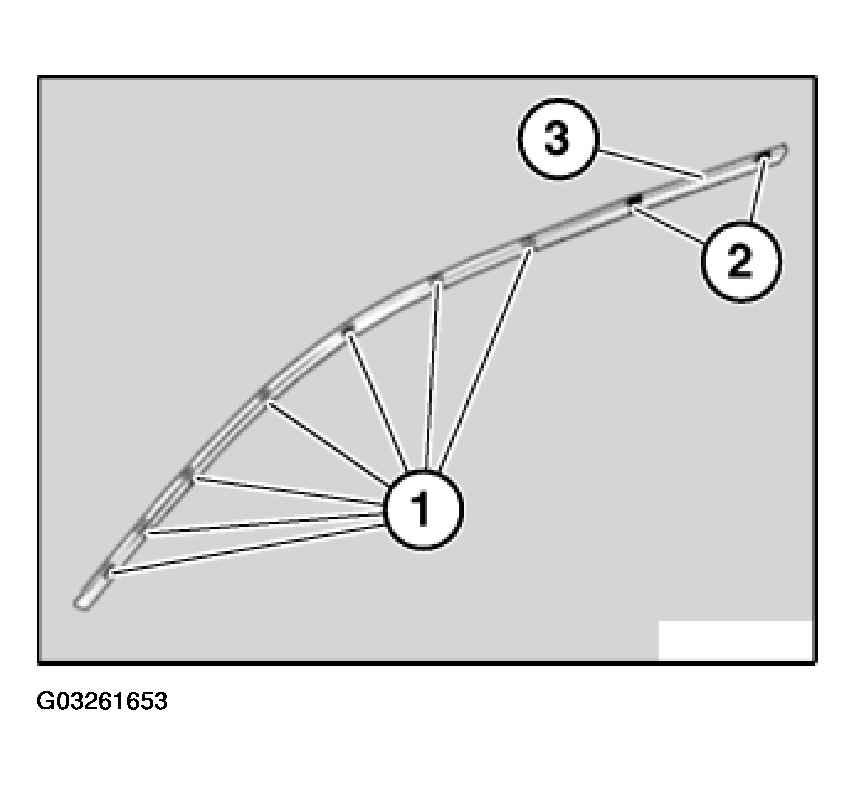

If necessary, replace faulty clips (1 and 2) on decorative strip (3).

Fig 6: Installing Clips On Decorative Strip

G03261653

Courtesy of BMW OF NORTH AMERICA, INC.
