51 32 211 Replacing front left or right rubber guide for left or right door window
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT WINDOW CAVITY COVER STRIP .
- Remove SOUND INSULATION in front door.
Security version:
- Replace PLASTIC COVER ON RUBBER GUIDE

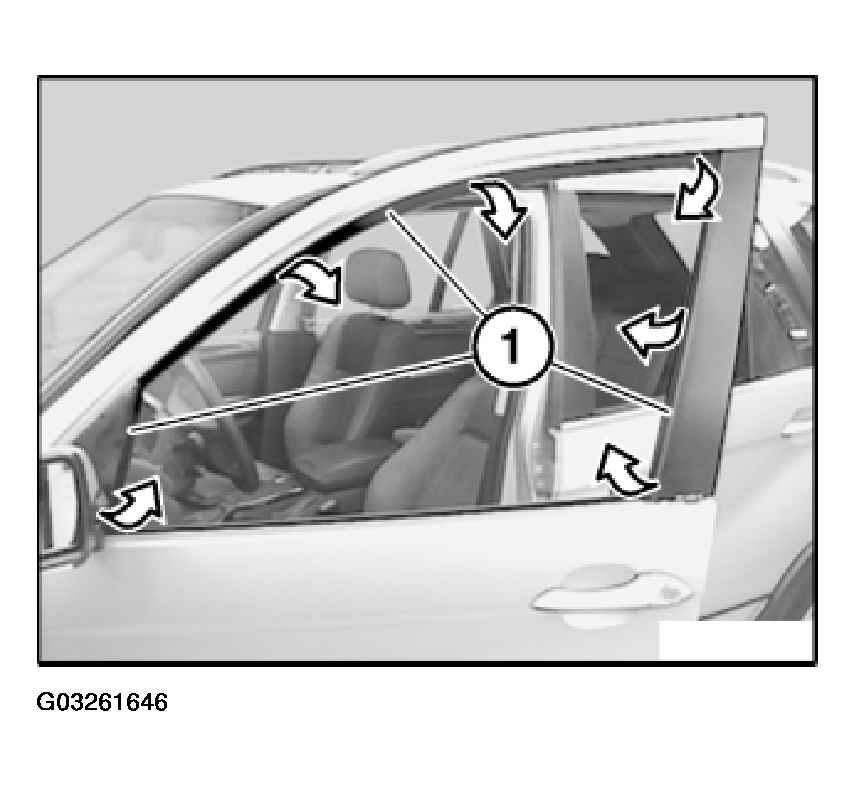

Pull rubber guide (1) completely out of front door.
Installation:
Moisten rubber guide (1) with water before fitting.
Insert rubber guide at front/bottom into window guide rail.
Installation:

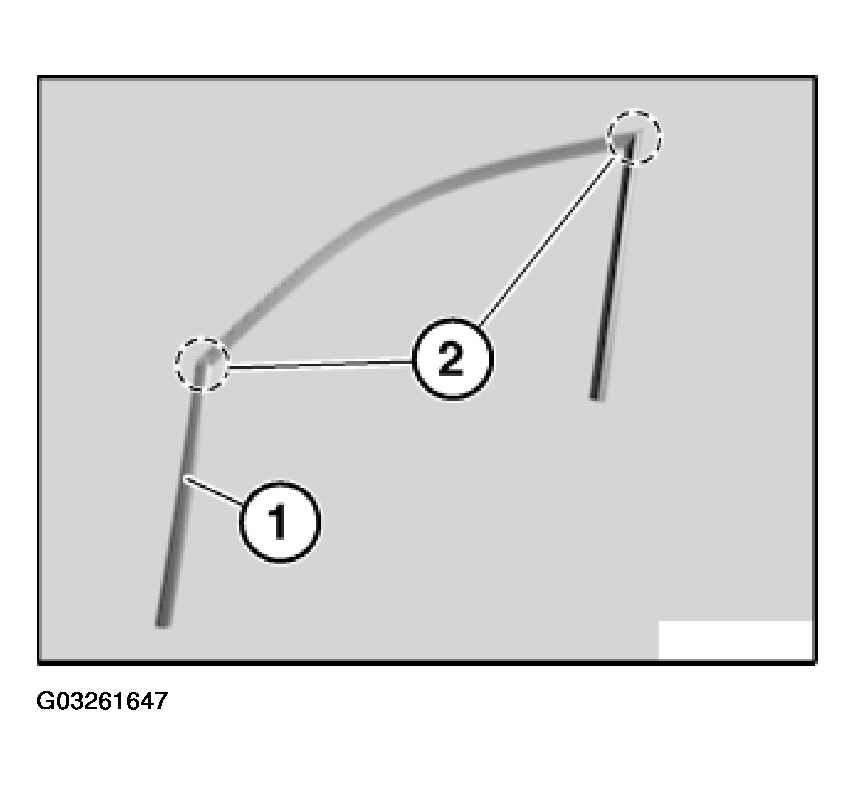

Rubber guide (1) must not be damaged in corners (2).
