51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open door window to 205 mm.
Remove SOUND INSULATION in front door.

Door window glass (1) must be opened to dimension (A).

A= approx. 205 mm

Release screws (2).

Installation:

Rubber (3) must be correctly fitted.

Tightening torque: see 2AZ in 51 32 FRONT DOOR WINDOWS .

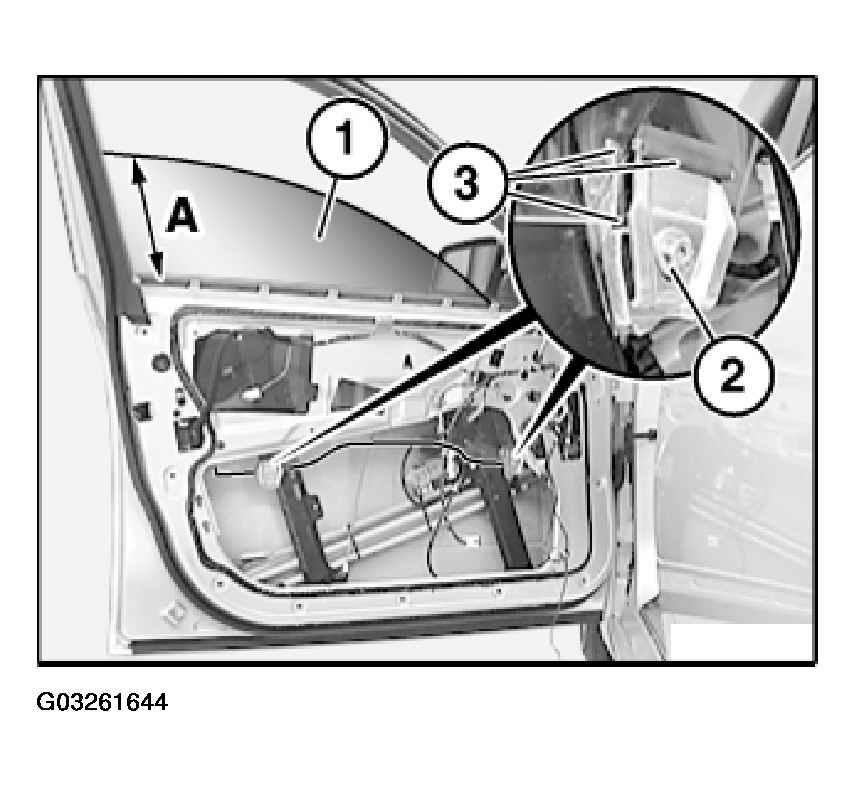

Fig 1: Identifying Door Window Glass Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Turn door window glass and lift out towards rear/top.

Installation:

Adjust DOOR WINDOW GLASS .

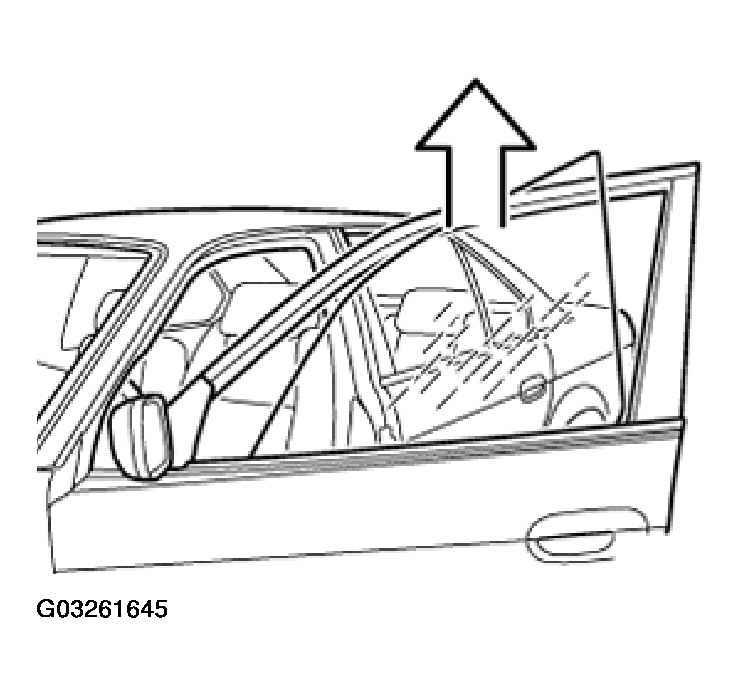

Fig 2: Lifting Glass Toward Rear/Top

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
