51 32 160 Removing and installing/replacing housing cover on inner left or right door window frame

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM .

Security version:

Cover is designed as armor plating and bonded to DOOR WINDOW FRAME , replacement is not possible.

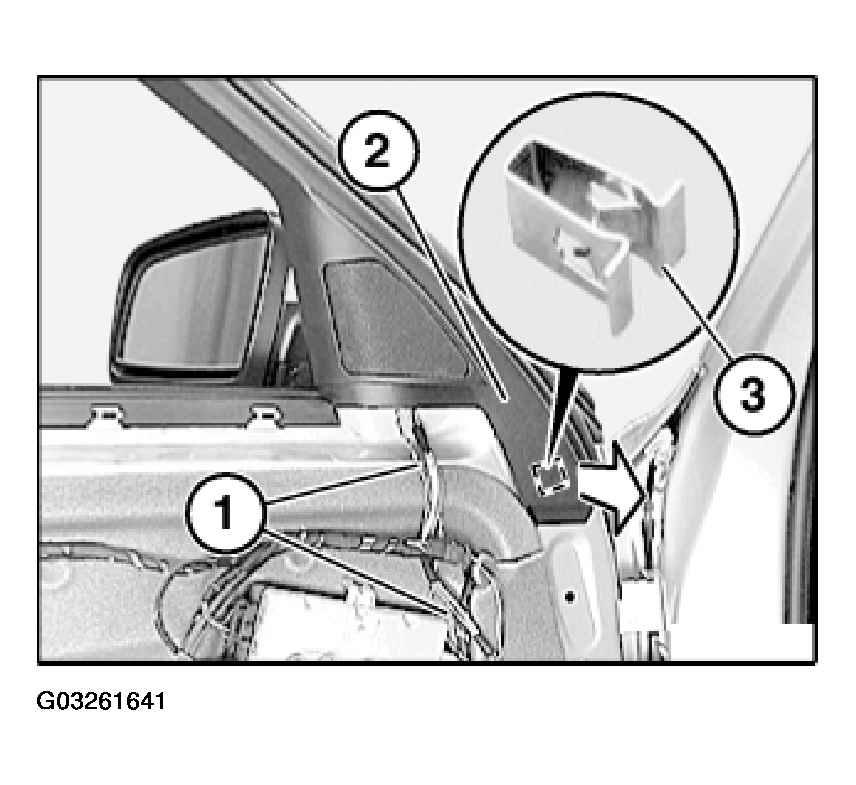

Feed out cable (1).

Lever cover (2) in direction of arrow out of retainer (3).

Fig 1: Removing Front Door Trim

G03261641

Courtesy of BMW OF NORTH AMERICA, INC.

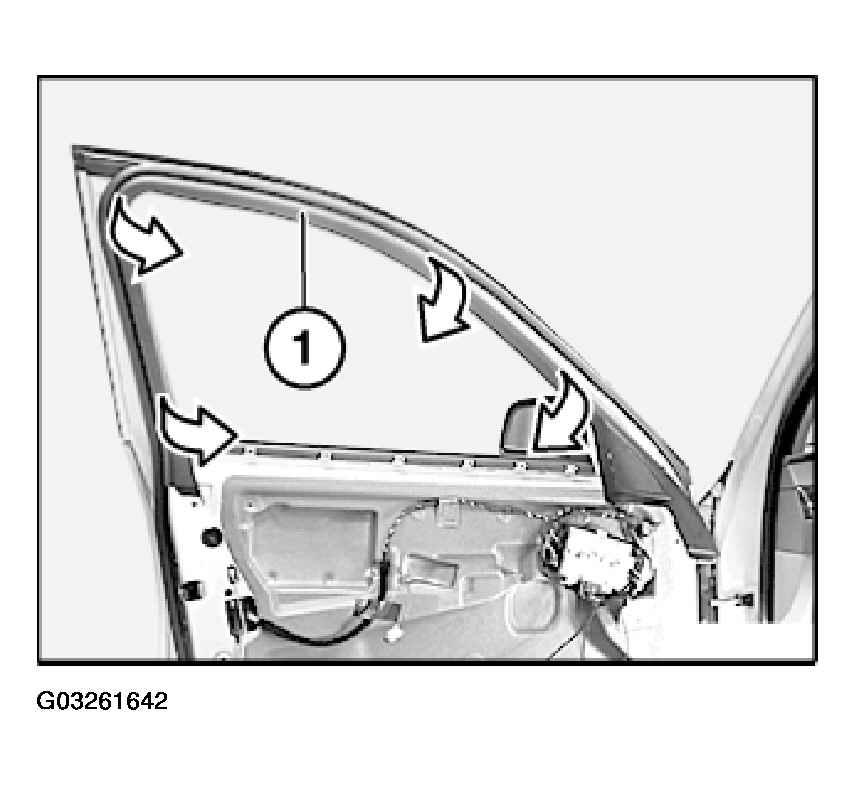

Lever cover (1) out of front door.

Fig 2: Removing Cover Of Front Door

G03261642

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

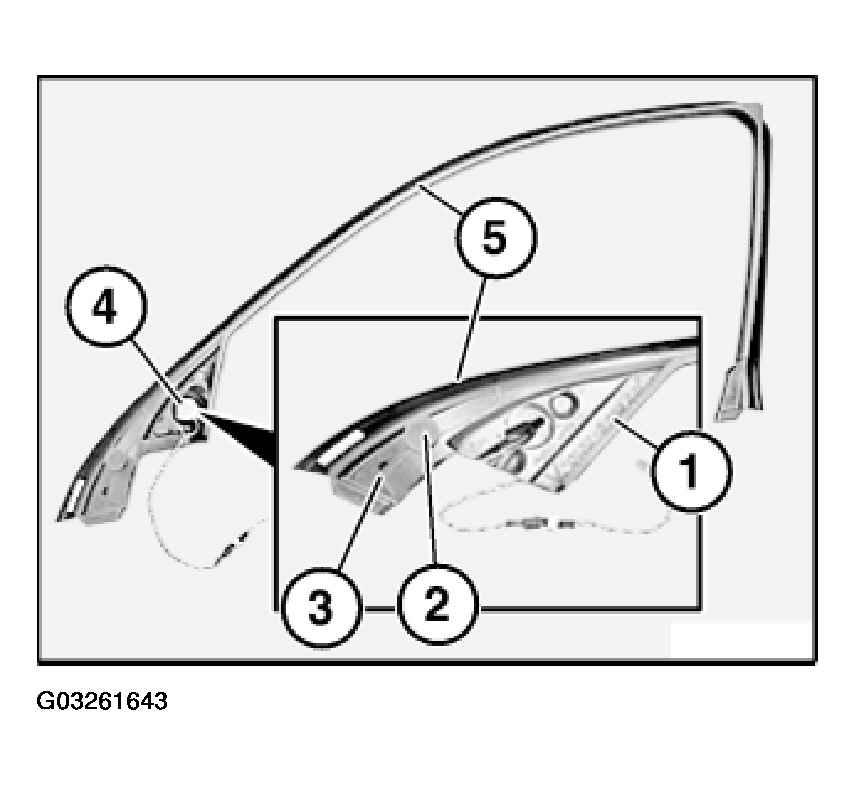

Following parts of cover (5) must not be damaged or missing:

(1) Sound insulation

(2) Foam

(3) Bridge

Replacement only:

Remove SPEAKER (4) .

Fig 3: Removing Speaker

G03261643

Courtesy of BMW OF NORTH AMERICA, INC.
