51 48 001 Removing and installing/replacing insulation lining on hood/bonnet
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

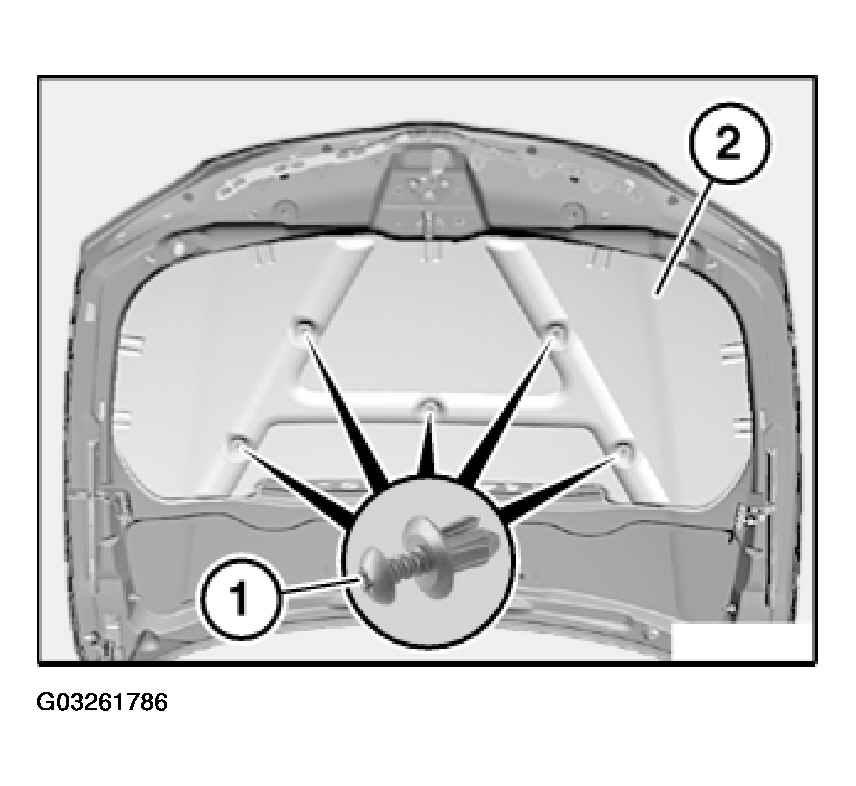

Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.
Release threaded rivets (1) on insulation lining (2).
Remove insulation lining (2).
Installation:
If necessary, replace defective threaded blind rivets (1).
