51 33 000 Removing and installing/replacing power window unit in left or right front door (security)

Necessary preliminary tasks:

• Remove front DOOR WINDOW GLASS .

Slacken screws (1) at bottom.

Tightening torque: see 2AZ in 51 33 POWER WINDOWS, FRONT .

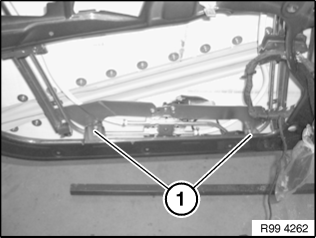

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on power window unit at top.

Tightening torque: see 2AZ in 51 33 POWER WINDOWS, FRONT .

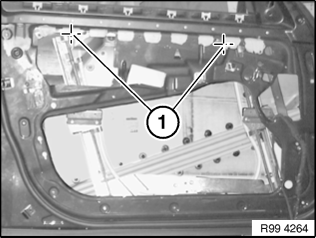

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (2).

Disconnect plug connection on drive (1).

Raise power window unit and remove past lower screwing points downwards completely.

Installation:

Make sure that power window rails are parallel, readjusting if necessary.

When installing power window unit, replace anti-rattle protector (foam pad) between power window motor and protective mat if necessary.

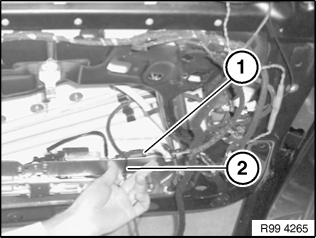

Fig 3: Identifying Plug Connection And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Make sure that spindle protection tubes at top are sealed with plugs (1).

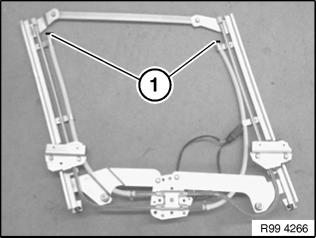

Fig 4: Identifying Spindle Protection Tube Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Operating sequence for normalization:

• Open corresponding window completely.
• Press corresponding power window switch into "Close one touch operation" (second switch stage).
• Once the upper end position has been reached, hold power window switch down for approx. 500 secs. more.
• Check function
