51 11... Removing and installing/replacing front fog lamp trim (M aerodynamic kit)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Partially fit special tool 64 1 020 as illustrated.

Lever out fog lamp trim (2) at retaining lugs (1).

Feed fog lamp trim (2) out of outer bracket (3) and remove from bumper trim (4).

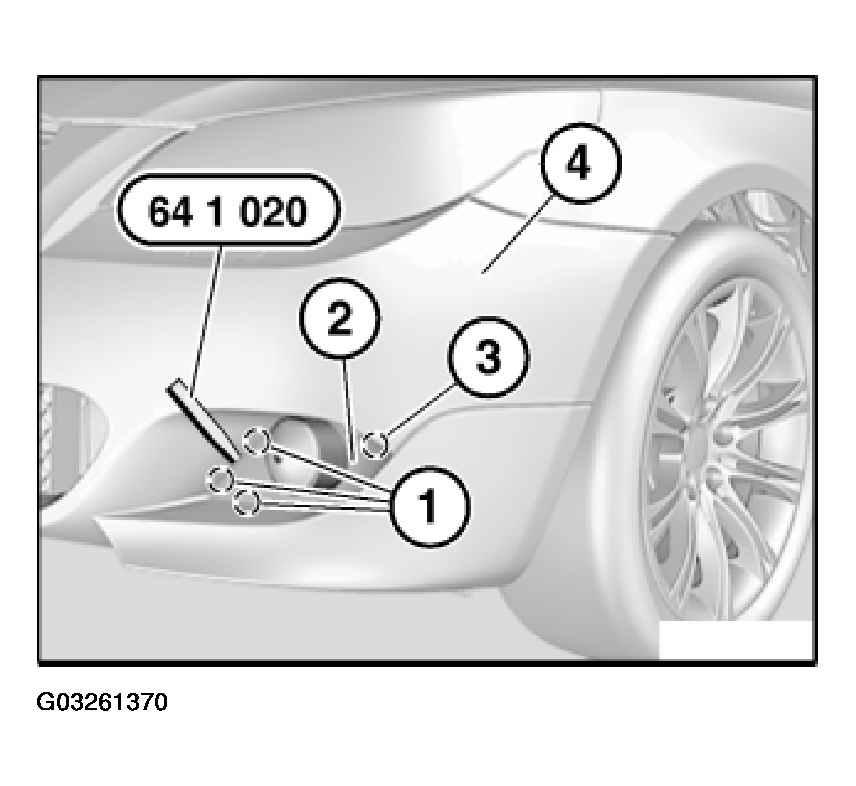

Fig 1: Removing Fog Lamp Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) and outer guide (2) of fog lamp trim (3) must not be damaged.

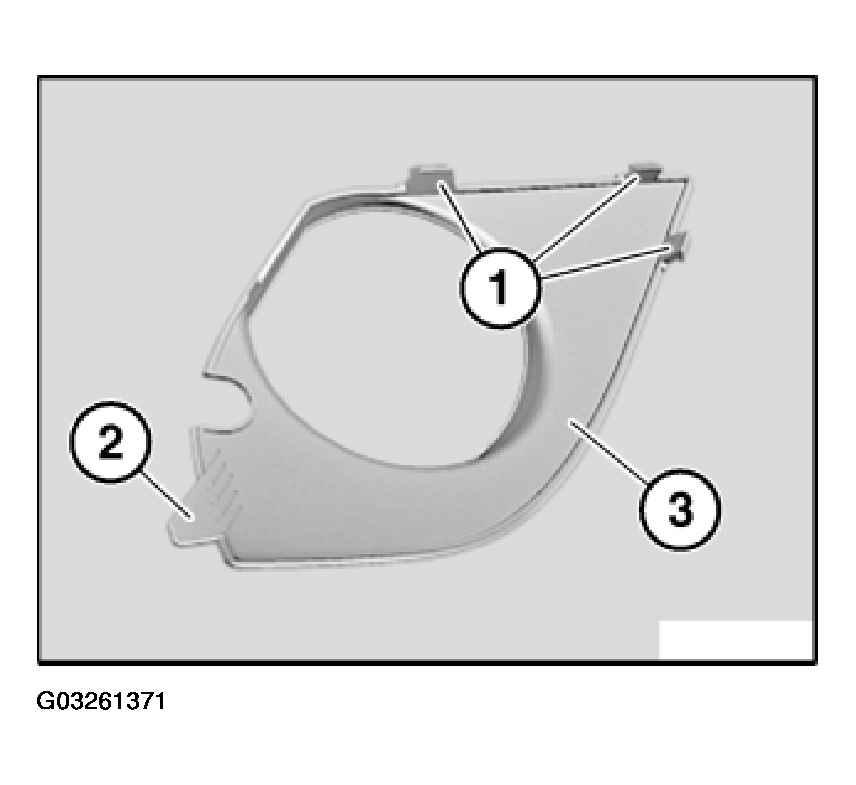

Fig 2: Removing Retaining Lugs And Outer Guide

Courtesy of BMW OF NORTH AMERICA, INC.
