51 11... Installing/replacing license plate (without base)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Initial fitting:

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to license plate.

Remove template (1).

Secure license plate with screws provided.

Installation:

Tightening torque: see 7AZ in 51 11 FRONT BUMPER .

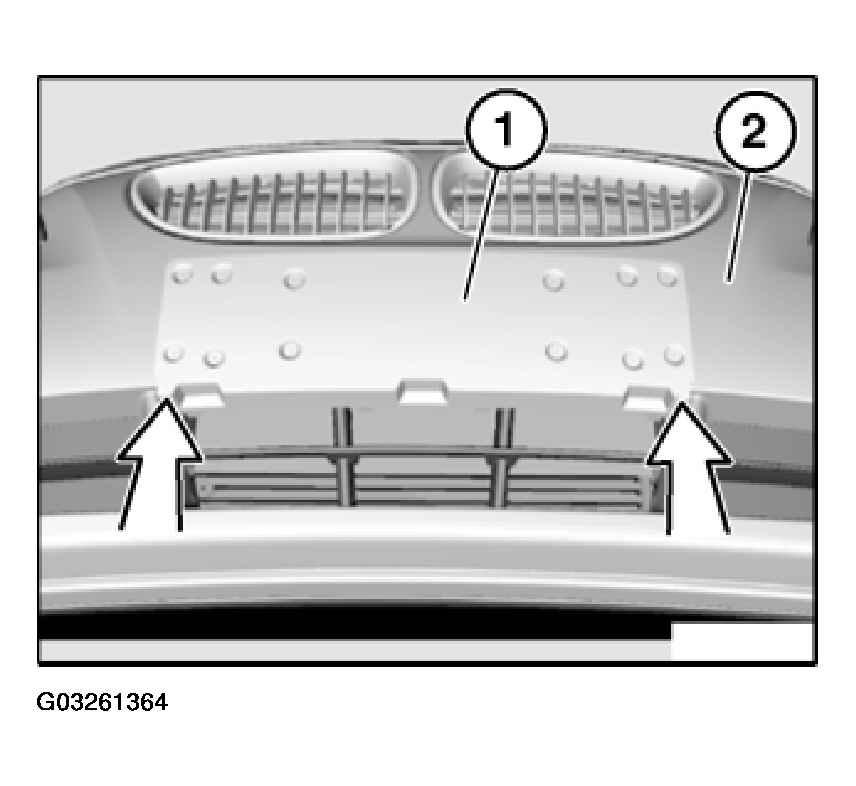

Fig 1: Removing Template

Courtesy of BMW OF NORTH AMERICA, INC.

Fit protective caps.

Repairing thread:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1).

Secure license plate (3) with license plate screw (M5 x 20).

Installation:

Tightening torque: see 8AZ in 51 11 FRONT BUMPER .

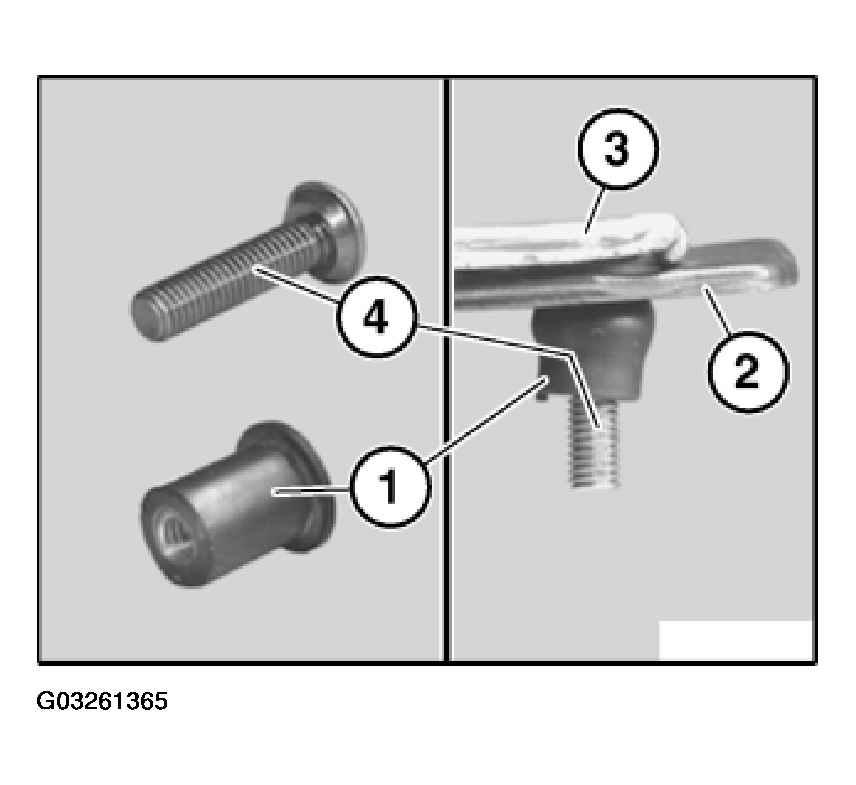

Fig 2: Inserting Blind Rivet Nut

Courtesy of BMW OF NORTH AMERICA, INC.
