51 31 242 Replacing rubber frame (bottom) for rear window

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

IMPORTANT:

Rubber frame (1) features an aluminum section inlay (2).

Carefully unwind rubber frame (1) (rear window breakage).

NOTE:

Tear-off lip (5) may be stuck to adhesive (6).

When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

(3) Pinched butyl

(4) Bridge

(7) Rear window

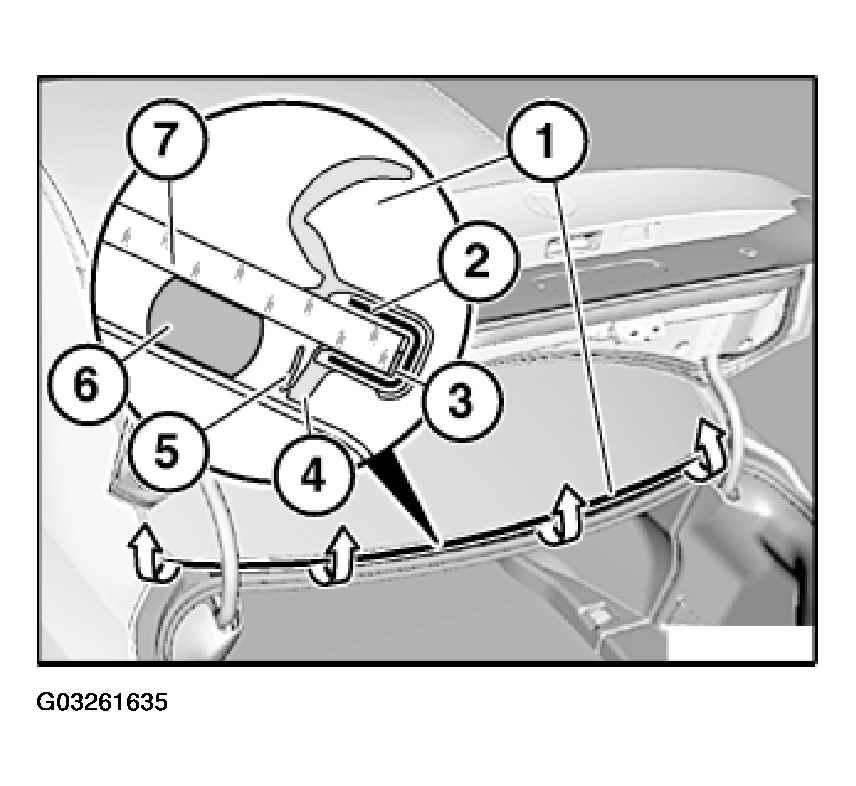

Fig 1: Replacing Rubber Frame (Bottom) For Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

There is no tear-off lip (5) in area (A) on left/right.

Replacement of rubber frame without rear window removal:

Detach tear-off lip (3) from rubber frame (1).

If adhesive has managed to get onto bridge (4), this area must be cut out partially.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame (1) with tear-off lip (5).

(2) Aluminum strip

(3) Butyl

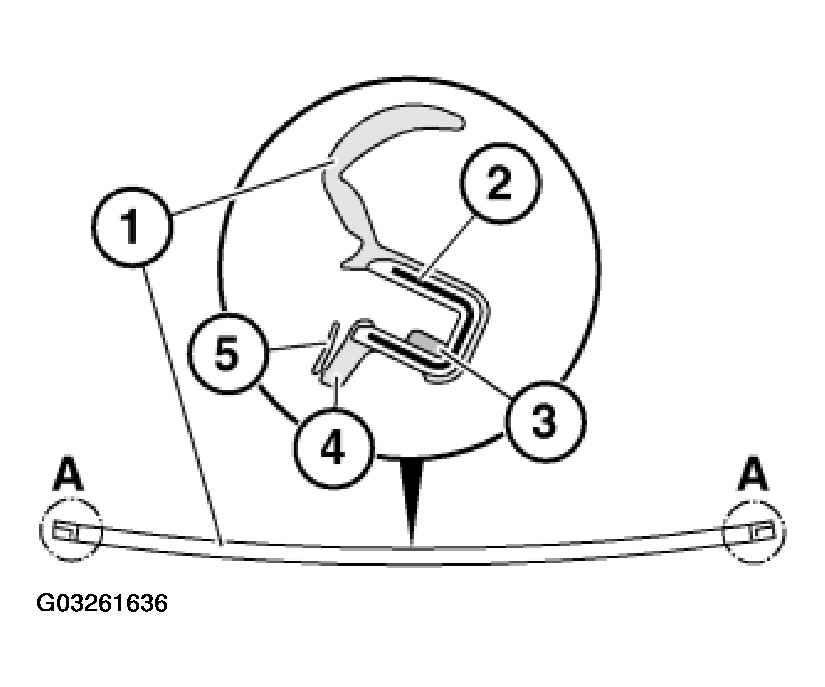

Fig 2: Installing Rubber Frame Into Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
