51 31 242 Replacing rubber frame (bottom) for rear window (security)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

IMPORTANT:

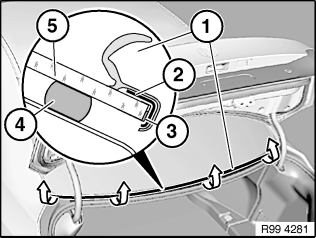

Rubber frame (1) features an aluminum section inlay (2).

Carefully unwind rubber frame (1) (rear window breakage).

(3) Crushed butyl omitted

(4) Glue

(5) Rear window

Fig 1: Replacing Rubber Frame (Bottom) For Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement of rubber frame without rear window removal:

Cut open rubber frame at marked point (6) and remove rib over entire length.

Apply adhesive in groove on windscreen side and stick in rubber frame (1).

Replacement of rubber frame with removed or new rear window:

Cut open rubber frame at marked point (6) and remove rib over entire length.

Apply adhesive in groove on windscreen side and stick in rubber frame (1).

(2) Aluminum strip

(3) Crushed butyl omitted

(4) Rib omitted

(5) Tear-off lip omitted

Fig 2: Installing Rubber Frame Into Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
