51 31 241 Replacing rubber frame (top/side) for rear window

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

NOTE:

For purposes of clarity, illustrations do not show the rear lid.

IMPORTANT:

Rubber frame (1) features an aluminum section inlay (2).

Carefully unwind rubber frame (1) (rear window breakage).

NOTE:

Tear-off lip (5) may be stuck to adhesive (4).

When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

(3) Rear window

(6) Bridge

(7) Pinched butyl

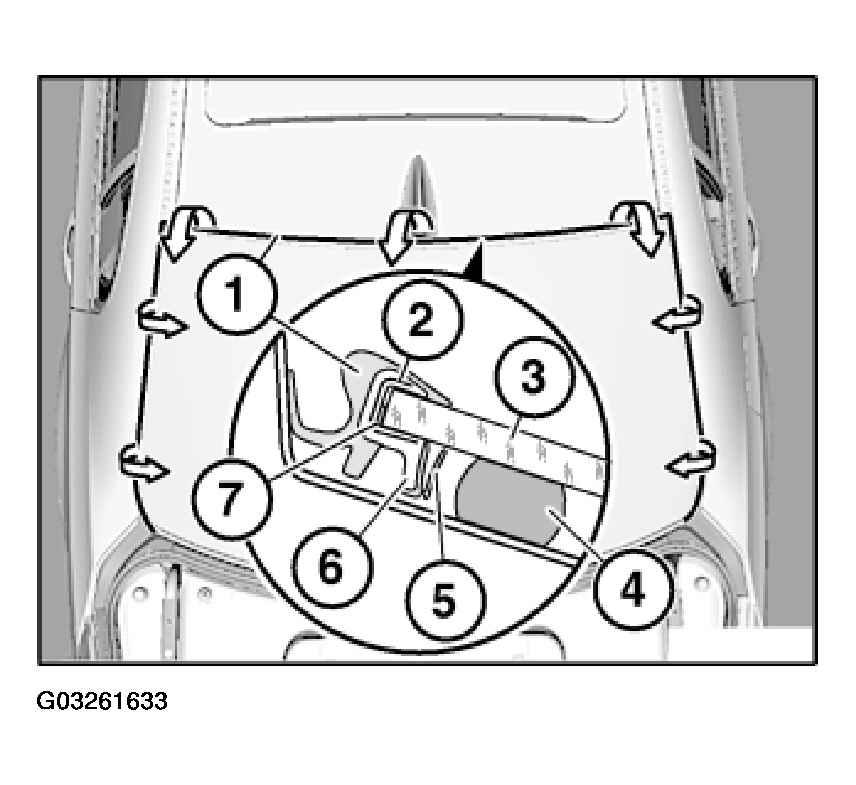

Fig 1: Locating Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement of rubber frame without rear window removal:

Detach tear-off lip (3) from rubber frame (1).

If adhesive has managed to get onto bridge (4), this area must be cut out partially.

To facilitate installation, coat rubber frame (1) and body cutout with water.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame (1) with tear-off lip (3).

(2) Aluminum strip

(5) Butyl

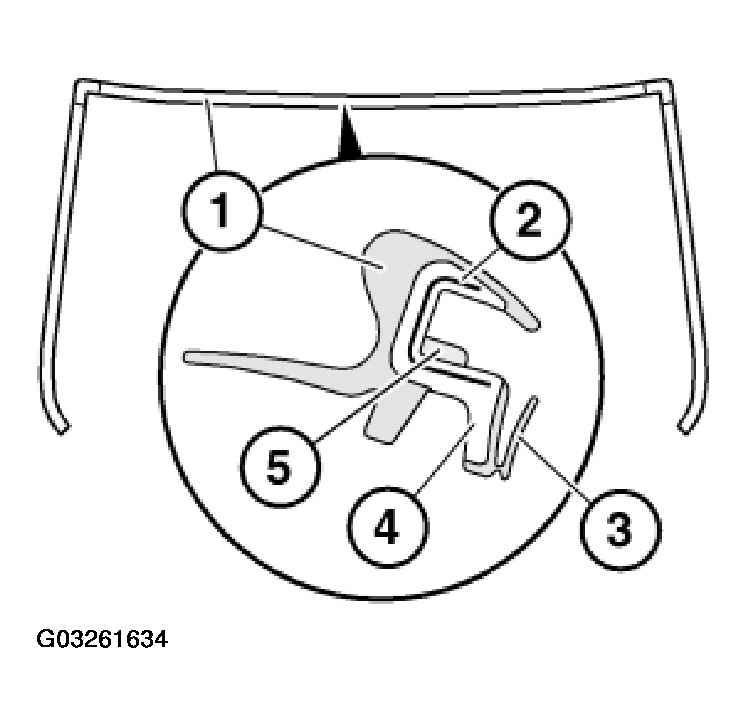

Fig 2: Connecting Tear-Off Lip From Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.
