51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Risk of damage!

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.

So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 325 (wedge) at guide pins (2).

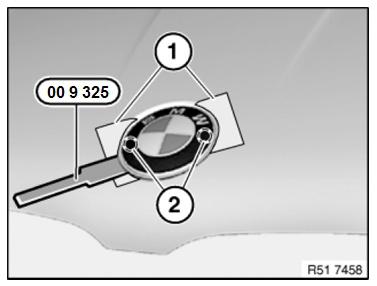

Fig 1: Removing BMW Badge Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The following parts must not be damaged or missing, replace if necessary:

1 Badge
2 Guide pins
3 Grommets

Adhesive tape (4)

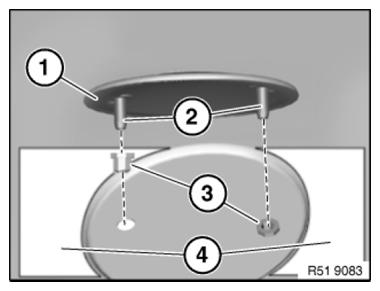

Fig 2: Identifying Badge, Guide Pins, Grommets And Adhesive Tape
