36 10 715 Checking rim for face and radial runout

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove wheel.
Check front or back wheel for face and radial runout.
Pull tire off rim.
Remove fitted balance weights.
Remove dirt from rim well and rim flange.

Mount disk wheel in balancing machine.

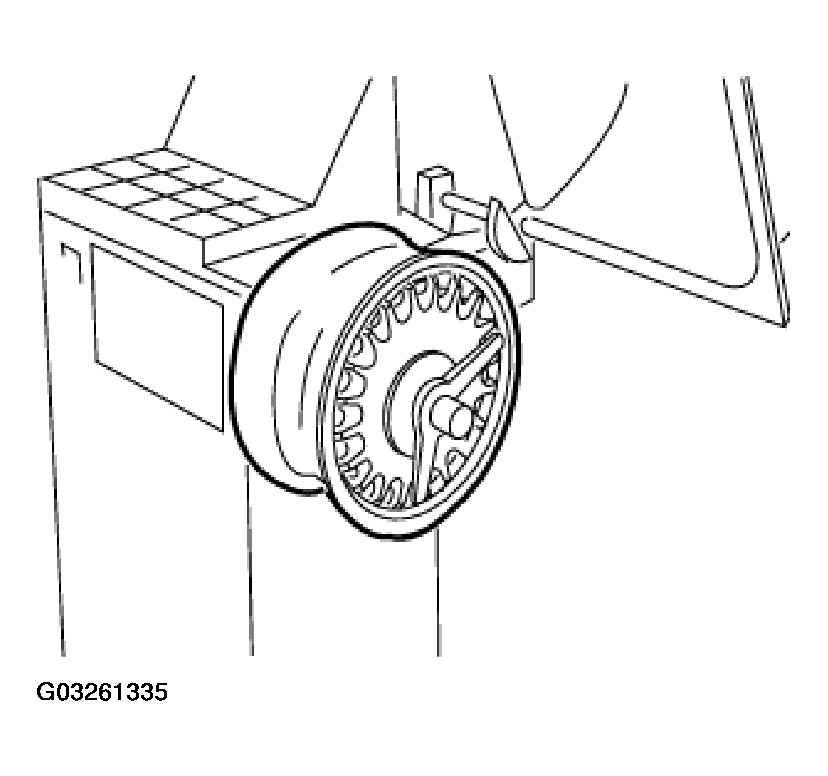

Fig 1: Mounting Disk Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel centering element supplied with corresponding balancing machine.

Basic flange
Wheel centering element
Type flange
Clamping nut

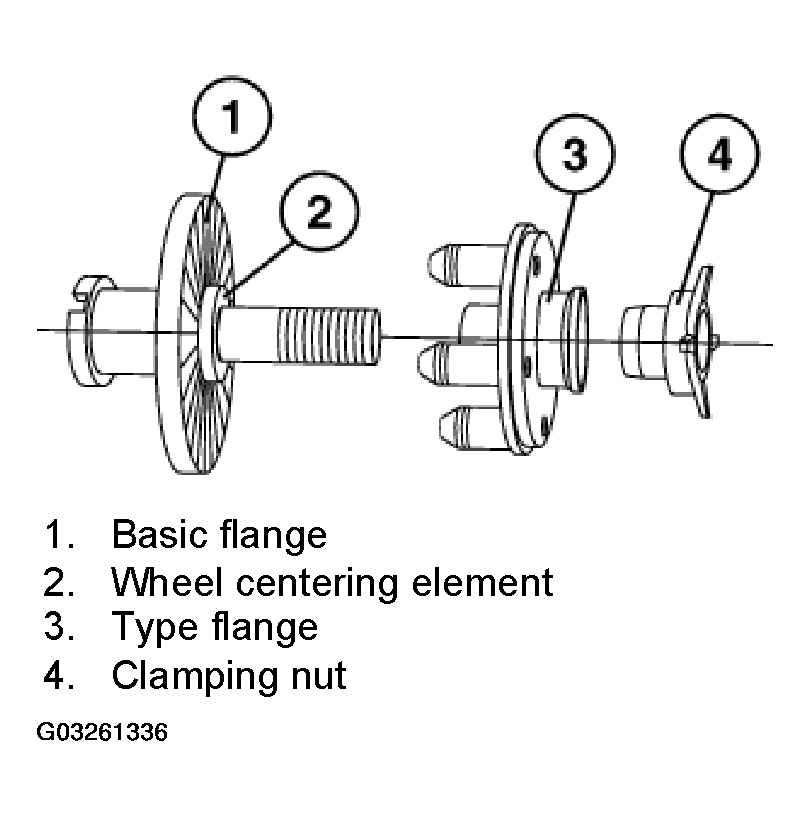

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure max. radial runout.

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

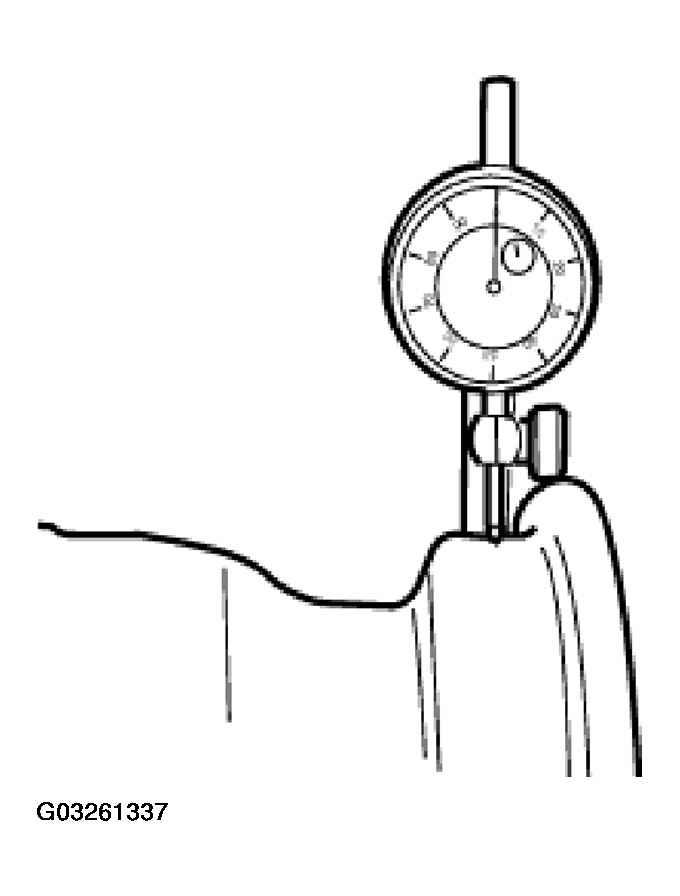

Fig 3: Placing Dial Gauge Sensor On Rim Shoulder And Measuring Maximum Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

Position sensor on rim flange.

Turn wheel by hand and measure max. lateral runout.

Carry out measurement on both rim flanges.

NOTE: Dial gauge must be vertical to rim flange.

IMPORTANT: Avoid transformation errors during subsequent installation tasks.

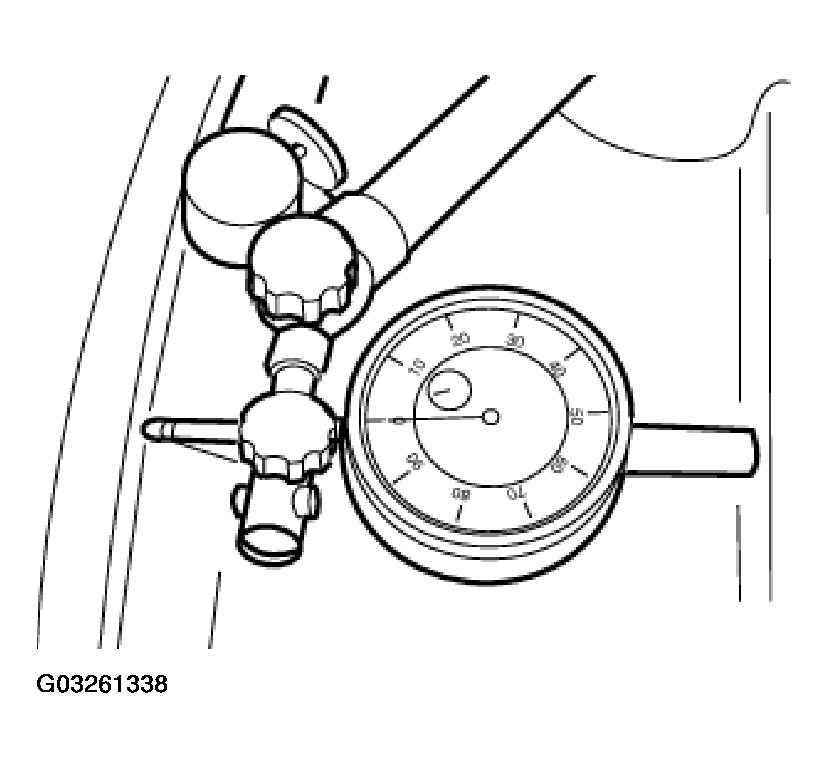

Fig 4: Placing Dial Gauge Sensor On Rim Flange And Measuring Maximum Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.
