36 10 508 Stationary wheel balancing

Special Tools Required

• 36 1 010
• 36 1 020

Remove any fitted balancing weights, stones in tread pattern and larger contaminants.

Check tire pressure, check tire for condition, damage, flat spots (out-of-round caused by e.g. stopping the car with hot tires); if necessary, check wheel and tire for radial and lateral runout.

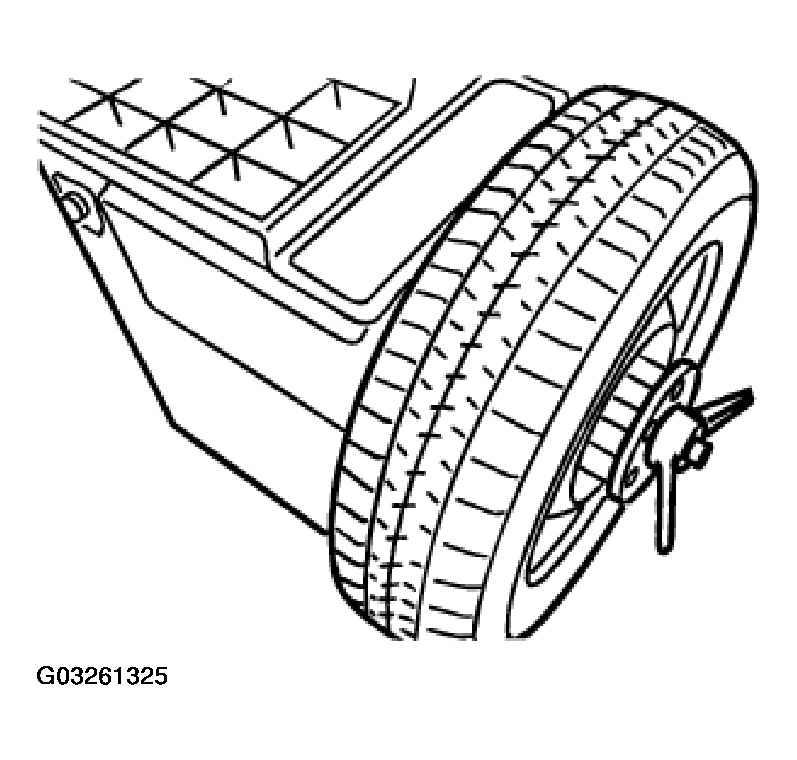

Fig 1: Wheel Inspection

Courtesy of BMW OF NORTH AMERICA, INC.

Use BMW-approved centering elements of relevant balancing machine manufacturers.

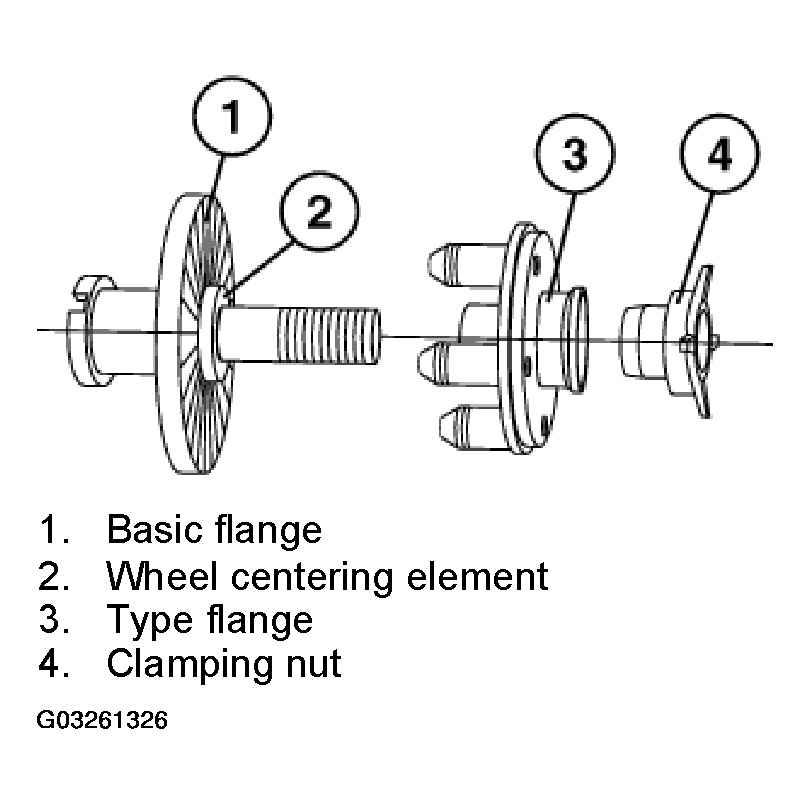

Fig 2: Identifying Basic Flange, Wheel Centering Element, Type Flange And Clamping Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Balance wheel in accordance with operating instructions of relevant balancing machine.

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

1. Gently force off tire sidewall with special tool 36 1 020 at appropriate point from rim flange.
2. Install retaining clip (1).
3. Remove special tool 36 1 020.

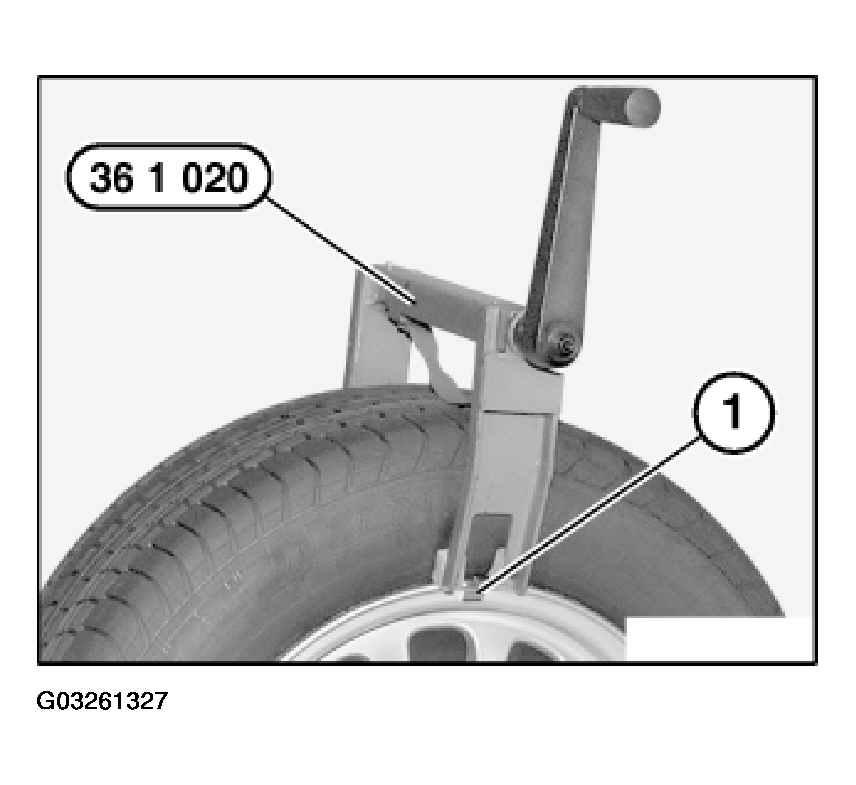

   Fig 3: Forcing Off Tire Sidewall With Special Tool 36 1 020 & Installing Retaining Clip

   Courtesy of BMW OF NORTH AMERICA, INC.

Raise retaining clip with special tool 36 1 010. Slide balance weight underneath and allow it to snap into place.

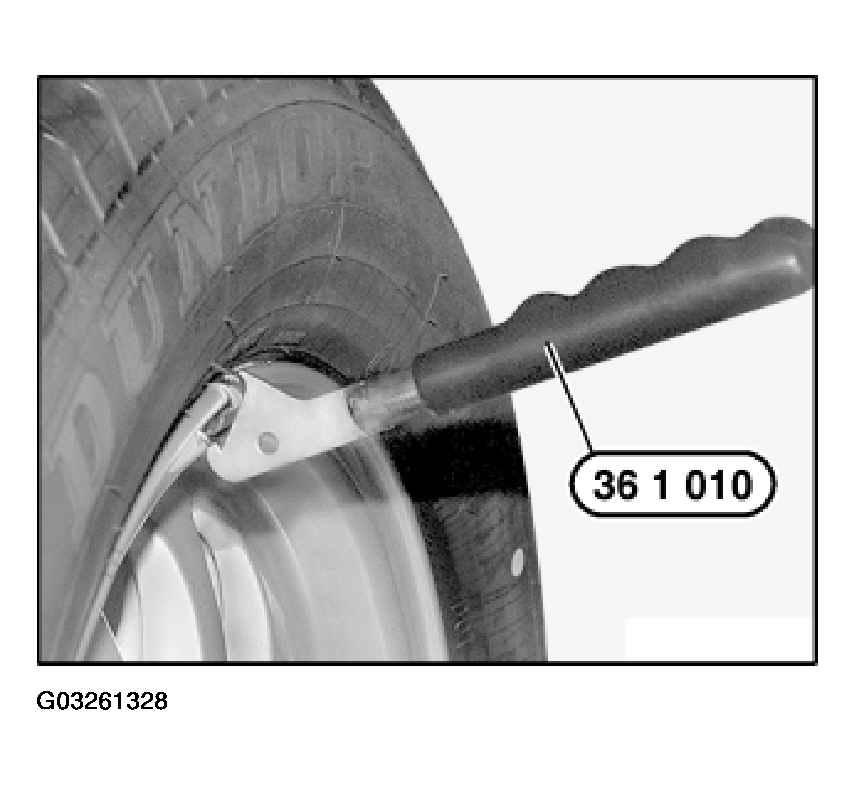

Fig 4: Raising Retaining Clip With Special Tool 36 1 010

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

1. Spring retainer
2. Balance weight

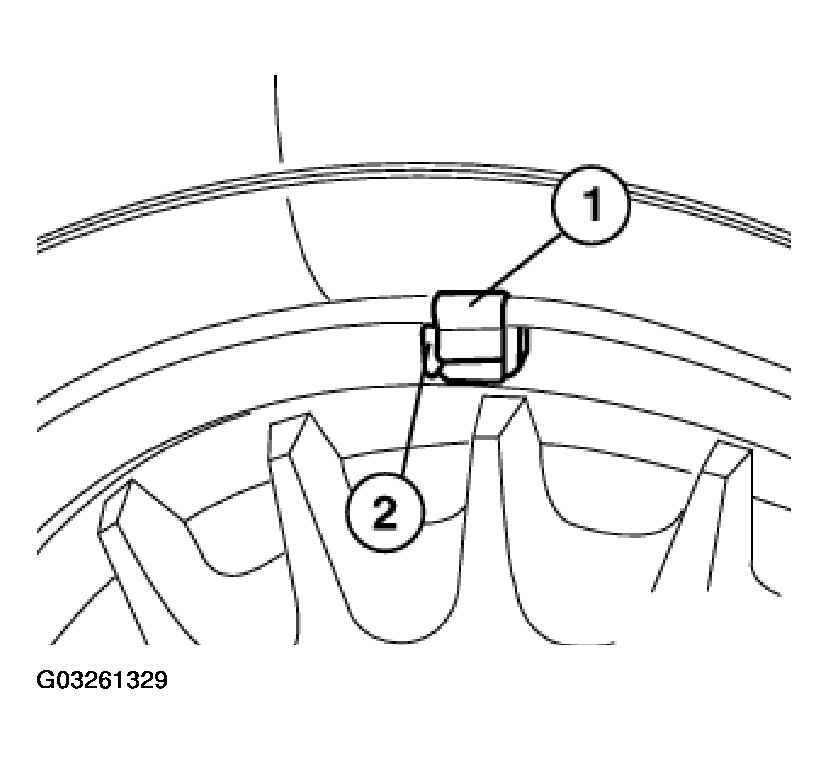

   Fig 5: Identifying Spring Retainer And Balance Weight

   Courtesy of BMW OF NORTH AMERICA, INC.

   Adhesive weights must be used on all other light-alloy rims.

   Max. imbalance per wheel.

1. Carefully remove any adhesive weights. Do not damage rim when doing so.
2. Select suitable location for fitting.
3. Clean adhesive area thoroughly.
