36 12 001 Replacing a tire (Run Flat)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

36 1 091
36 1 092
36 1 093
36 1 094
36 1 095
36 1 098

Follow the fitting machine manufacturer's operating instructions.

It is absolutely essential to ensure that the equipment is in proper working condition and that there is no damage to the disk wheel and tire.

Follow instructions on initializing tire defect indicator (RPA).

IMPORTANT: To avoid damaging the rim, use only the BMW-approved plastic-covered tire irons!

Use only BMW-approved tire mounting paste.

Tire removal with a fitting machine:

IMPORTANT: Gap between unseating tool and rim flange must not exceed max. 2 cm.

Do not position unseating tool in area of valve (damage to wheel pressure sensor). Turn wheel through 180° and position unseating tool on opposite side.

Pull off balance weights on rim and clean rim to remove large pieces of dirt.

Unscrew valve insert, release air.

If tire beads are stuck, first release the tire with the pressing-off horn at several points of the wheel before actually pressing off, applying tire mounting paste between the tire and the rim flange. Only then press off the tire completely.

Fig 1: [Pulling Off Balance Weights On Rim And Cleaning Rim]

Courtesy of BMW OF NORTH AMERICA, INC.

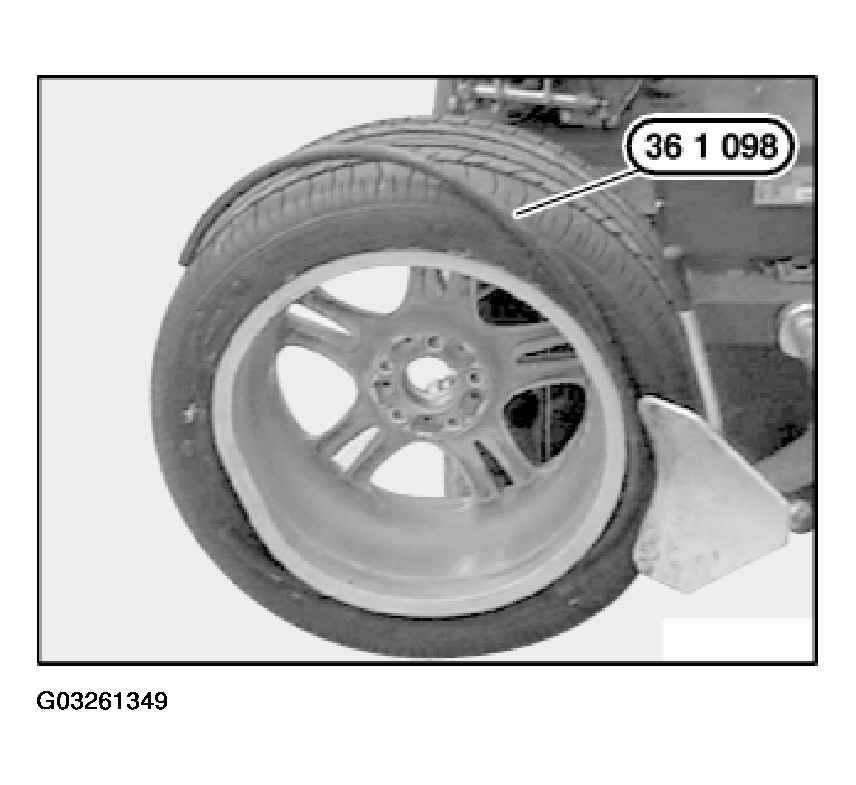

Force off inner side of wheel, inserting special tool 36 1 098 between rim flange and tire bead in so doing.

Force off outer side of wheel, applying a generous coating of tire mounting paste between rim flange and tire bead in so doing.

Grip wheel with outer side facing upwards on fitting machine.

Fig 2: Inserting Special Tool 36 1 098 Between Rim Flange And Tire Bead

Courtesy of BMW OF NORTH AMERICA, INC.

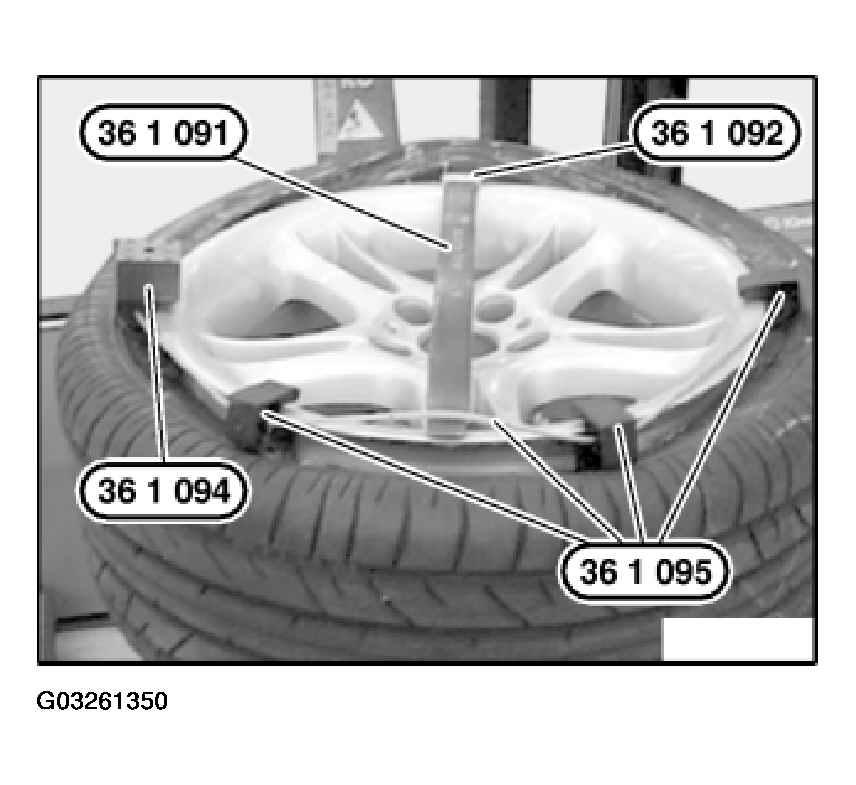

Position special tool 36 1 094 and special tool 36 1 095 as shown on rim flange.

Fit special tools 36 1 091 / 36 1 092 between tire bead and rim flange, move into position shown and lever tire bead over rim flange.

Secure special tools 36 1 091 / 36 1 092 with connecting cable of special tool 36 1 095.

Fig 3: Fitting Special Tools 36 1 091/36 1 092 Between Tire Bead And Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

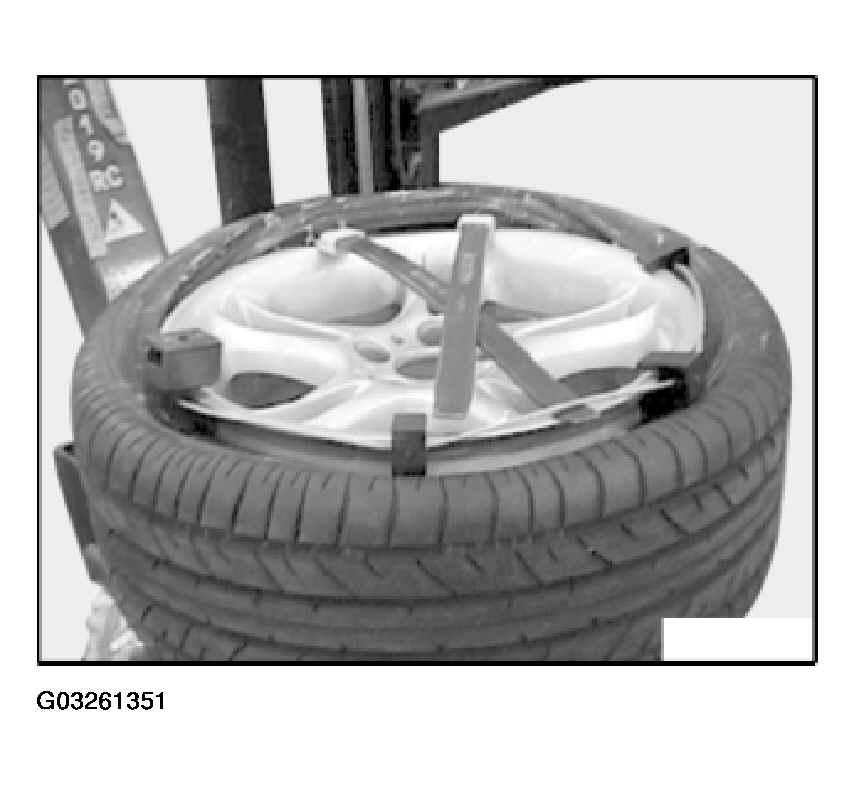

Slide a second special tool 36 1 091 / 36 1 092 on right next to first special tool 36 1 091/ 36 1 092 between tire bead and rim flange.

Lever tire bead over rim flange.

Remove first special tool 36 1 091 / 36 1 092 and slide on right next to second special tool 36 1 091 / 36 1 092 between tire bead and rim flange and lever tire bead over rim flange.

Continue this procedure in clockwise direction until tire bead is resting fully over rim flange.

Fig 4: Sliding A Second Special Tool 36 1 091/36 1 092 On Right Next To First Special Tool 36 1 091/36 1 092 Between Tire Bead And Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Swivel or tilt fitting head into position and allow it to snap into place.

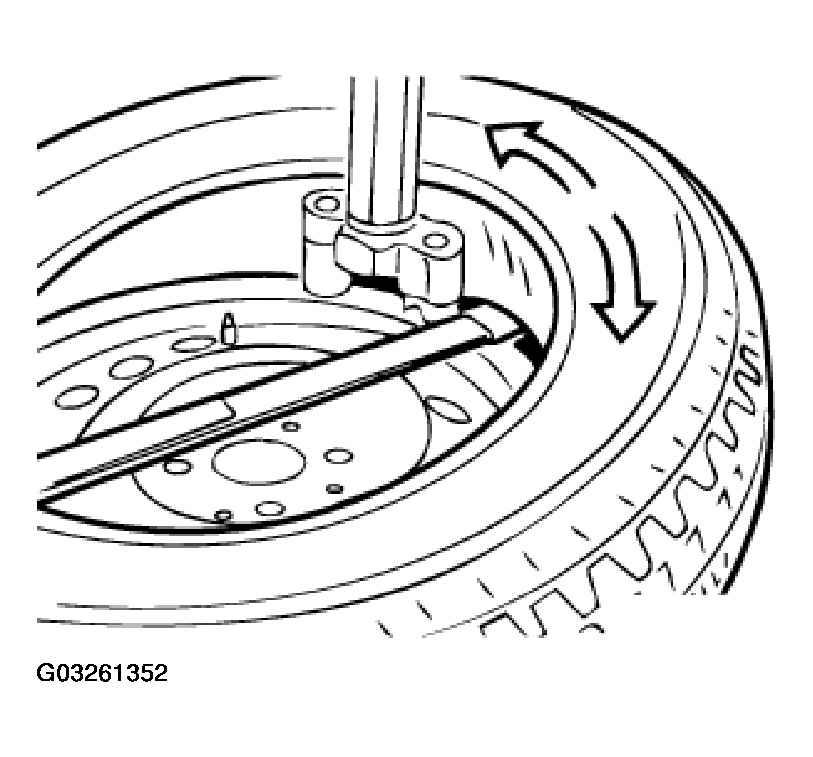

Lever lower bead with tire iron over mounting finger.

Run fitting machine forwards clockwise until tire is completely detached from rim.

Fig 5: [Levering Lower Bead With Tire Iron Over Mounting Finger]

Courtesy of BMW OF NORTH AMERICA, INC.

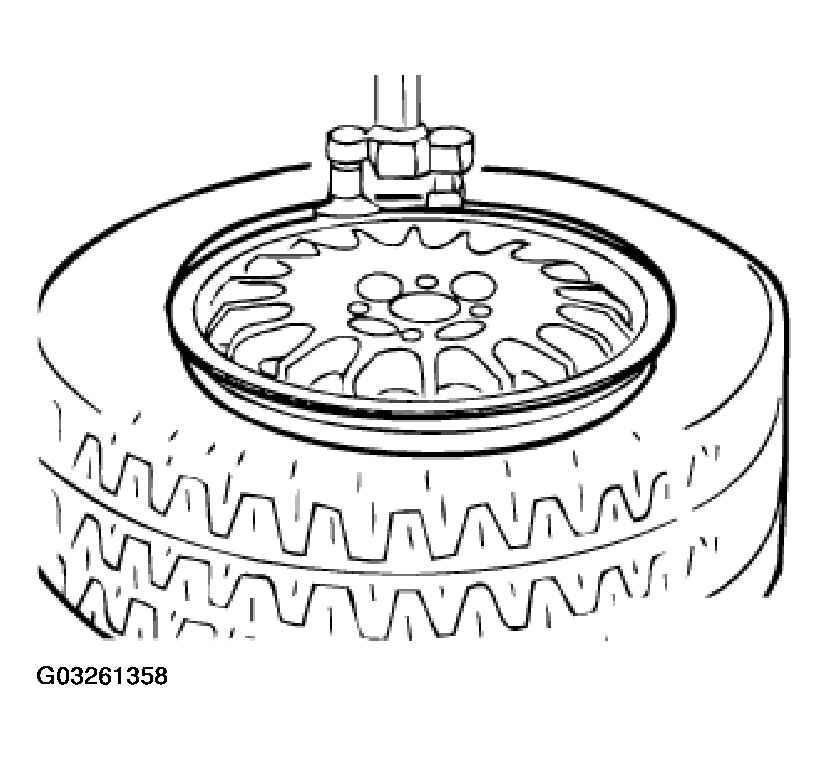

Release lock and tilt or swivel fitting head back.

Unclamp and clean rim.

Replace valve.

Fig 6: [Swiveling Fitting Head Back]

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat wheel drop center, rim shoulders and rim flange with tire mounting paste.

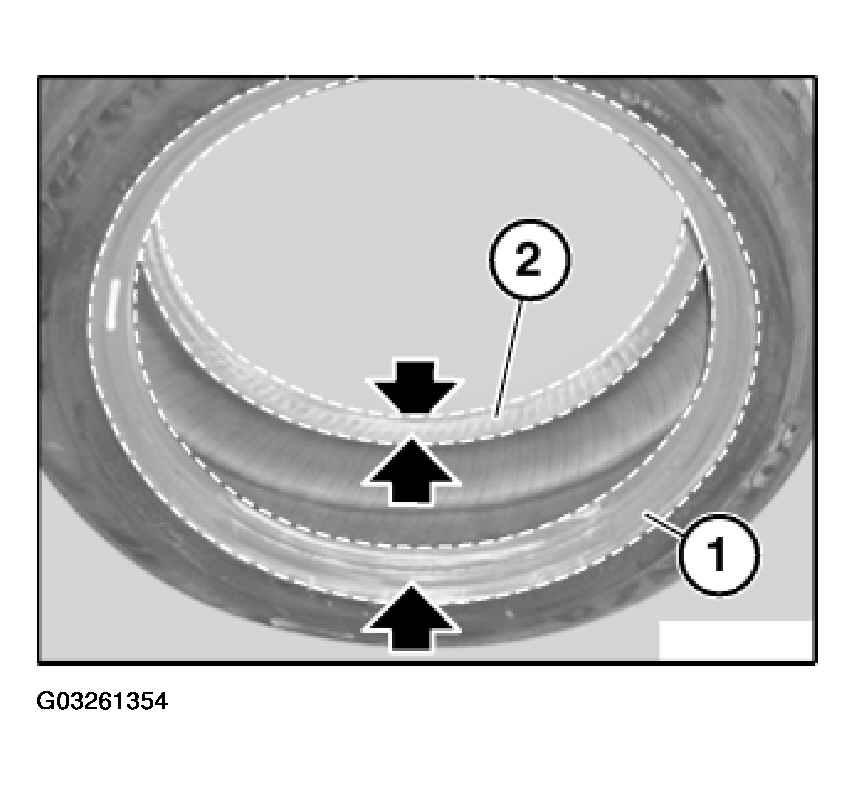

Coat lower tire bead (1) on outside with plenty of tire mounting paste.

Coat upper tire bead (2) on inside and outside with plenty of tire mounting paste.

Fig 7: Coating Lower Tire Bead On Outside With Plenty Of Tire Mounting Paste

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting tires with a mounting machine:

Clamp rim on mounting machine.

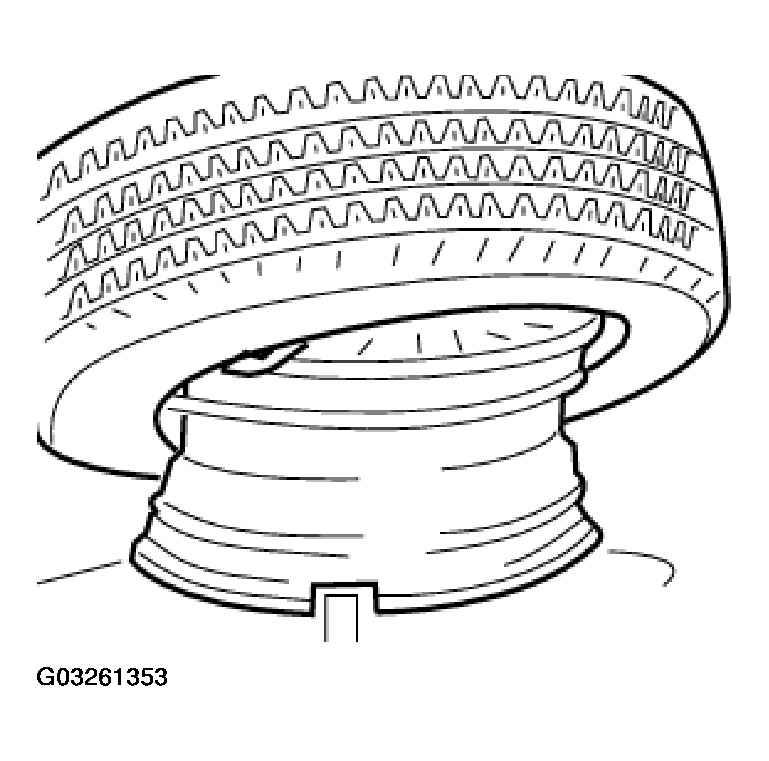

Push tire with lower bead partially over rim flange.

Valve 10 cm to right of mounting head.

Swivel or tilt fitting head into position and lock into place.

Check fitting head setting, readjust and clamp down if necessary.

Press tire by hand under fitting head.

Make sure lower tire bead is correctly seated on fitting head.

Allow fitting machine to run forwards gradually in clockwise direction.

Lower tire bead will drop into well.

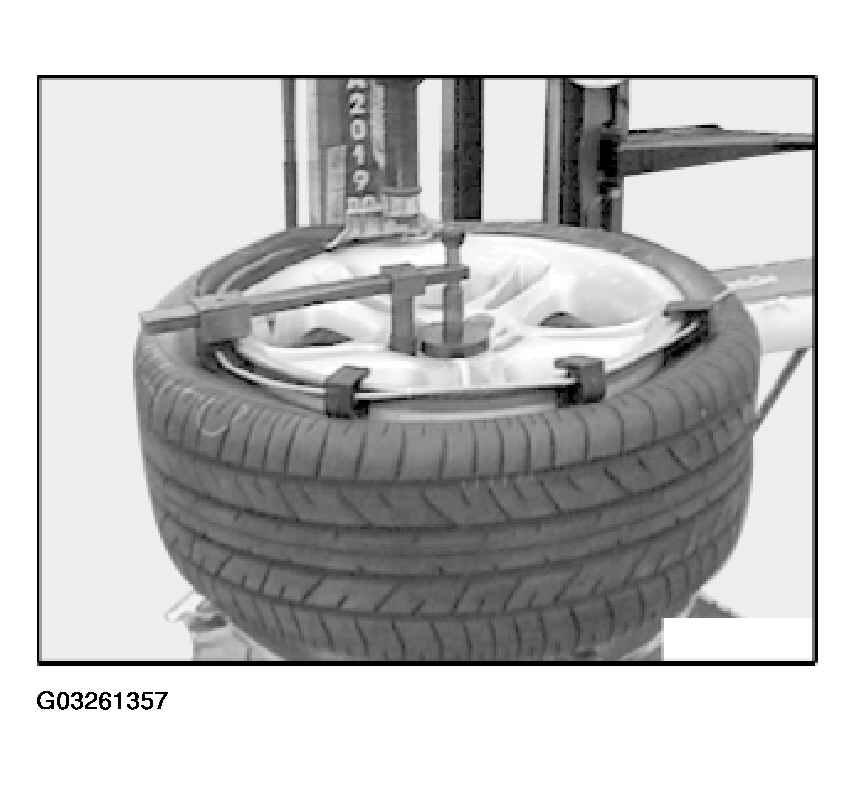

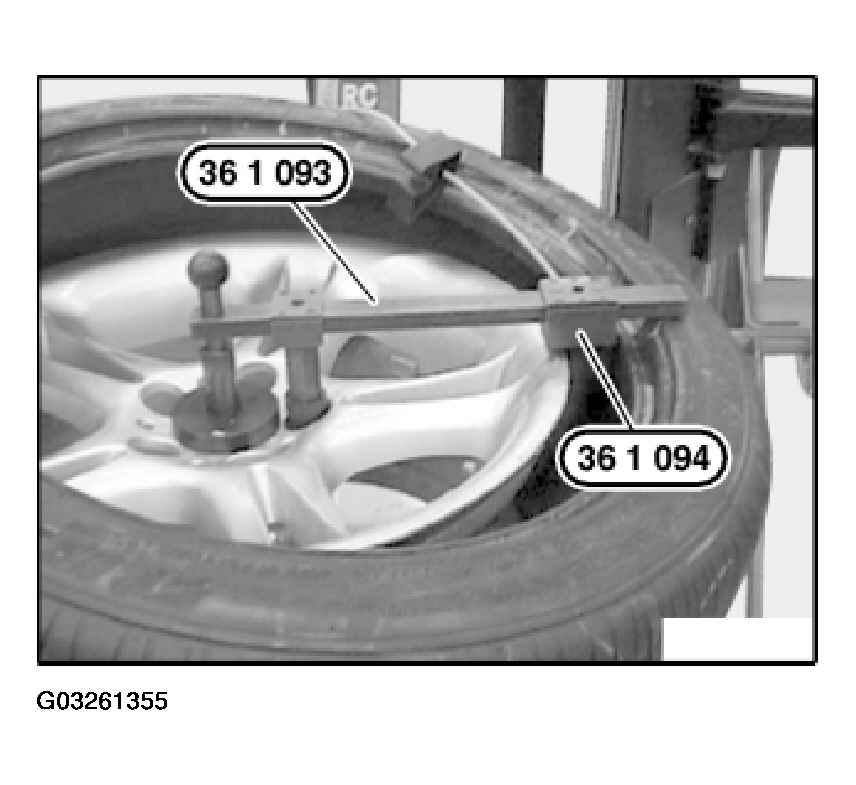

Position special tools 36 1 093 and 36 1 094 as shown on rim.

Fig 8: Positioning Special Tools 36 1 093 And 36 1 094 On Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure upper tire bead is correctly seated on fitting head.

Allow fitting machine to run forwards gradually in clockwise direction.

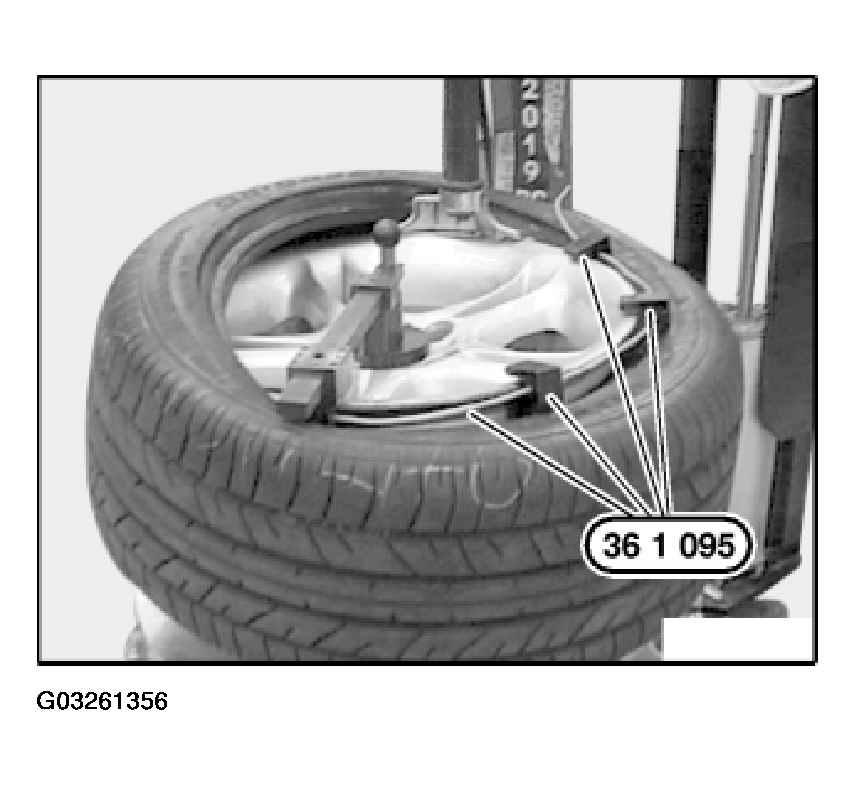

In so doing, position special tool 36 1 095 as shown on rim flange.

Fig 9: Positioning Special Tool 36 1 095 On Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Allow fitting machine to continue running in clockwise direction.

Upper tire bead jumps into the rim drop center.

Fig 10: Upper Tire Bead Jumping Into Rim Drop Center

Courtesy of BMW OF NORTH AMERICA, INC.

After completing fitting, first release clamping claws.

Inflate with air (without valve insert).

Increase pressure up to 3.3 bar (330 kPA) in stages (jumping pressure).

If the tire bead does not slip fully past the rim edge all round, do not under any circumstance increase the pressure.

Release air, force off tire bead again.

Coat rim flange with tire mounting paste again.

Inflate tire again up to 3.3 bar.

When tire beads are resting perfectly on rim shoulders, increase inflation pressure to max. 4.0 bar to "settle" tire.

Screw in valve insert and correct tire pressure.

After completion of work, balance wheels.

IMPORTANT: Advise the customer to avoid heavy acceleration in the initial period.

The mounting paste can cause the tire to turn on the rim and give rise to imbalance.

Fig 11: Complete Tire Installation

Courtesy of BMW OF NORTH AMERICA, INC.
