35 40 001 Removing and installing/replacing accelerator pedal module
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2007 BMW 530i, 2007 BMW 525xi, 2007 BMW 525i, 2006 BMW 530xi, and 2006 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

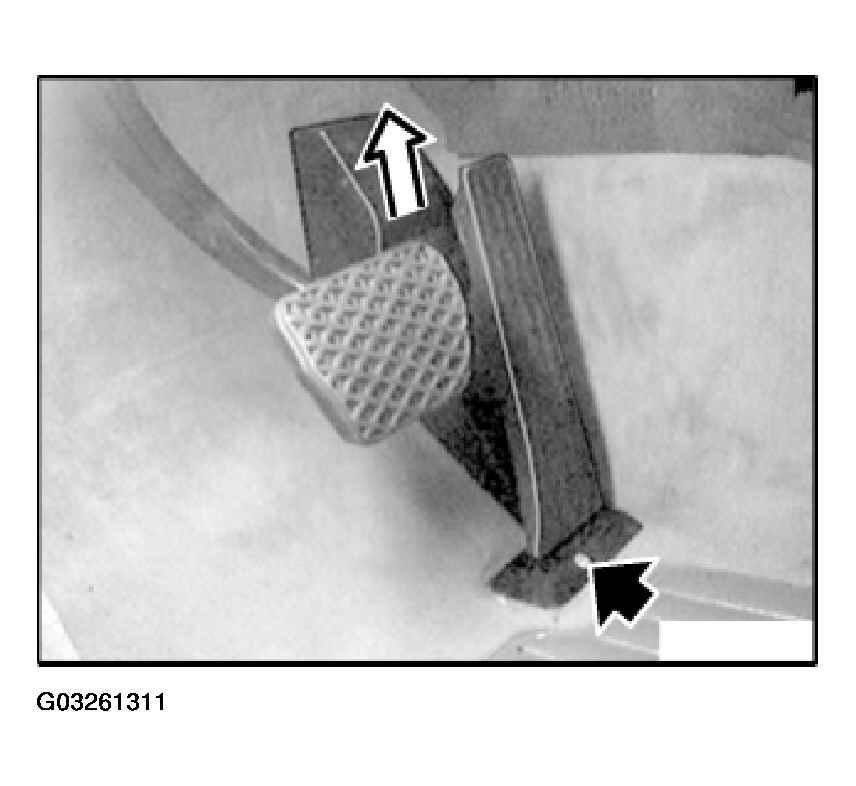

Unscrew screw.
Pull accelerator pedal module upwards out of fixture.
Installation:
Tightening torque, see 35 40 1AZ in PEDALS - TIGHTENING TORQUES .

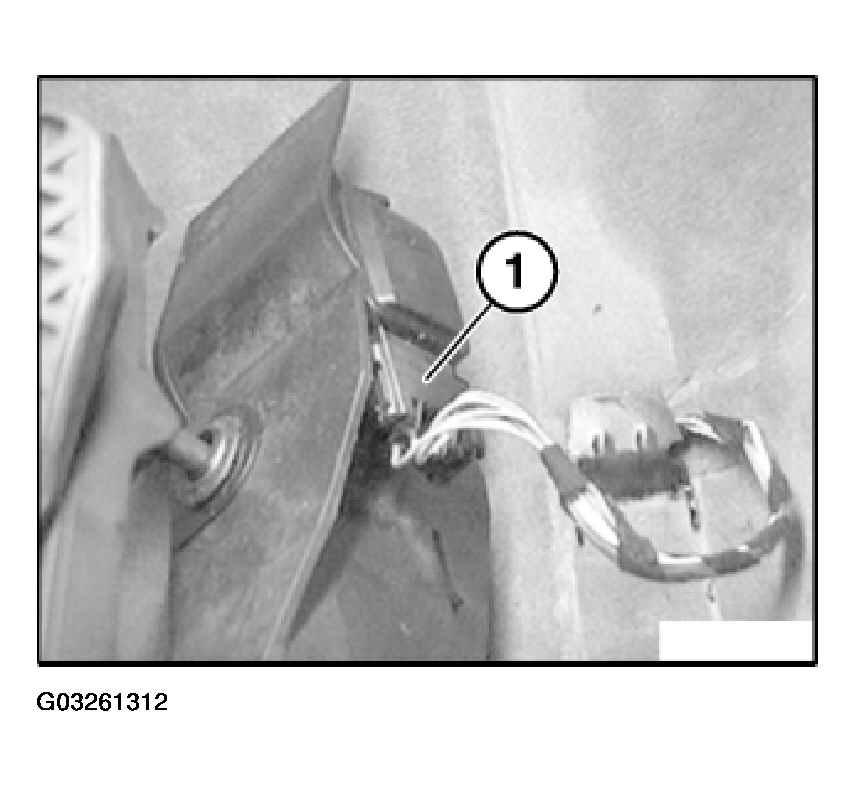

Pull off plug (1).
Remove accelerator pedal module.
IMPORTANT:
Accelerator pedal module can only be replaced completely with adapter plate.
