32 32 170 Removing and installing / replacing interlock cable (vehicles up to 09/2005)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for storage tray. See 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR STORAGE TRAY .
Remove front insert for ashtray.

After installation:

Adjusting interlock cable

Release screw (1) and remove bracket (2).

Move interlock cable (3) to left and then remove towards front.

If necessary, secure cord/cable to interlock cable (3).

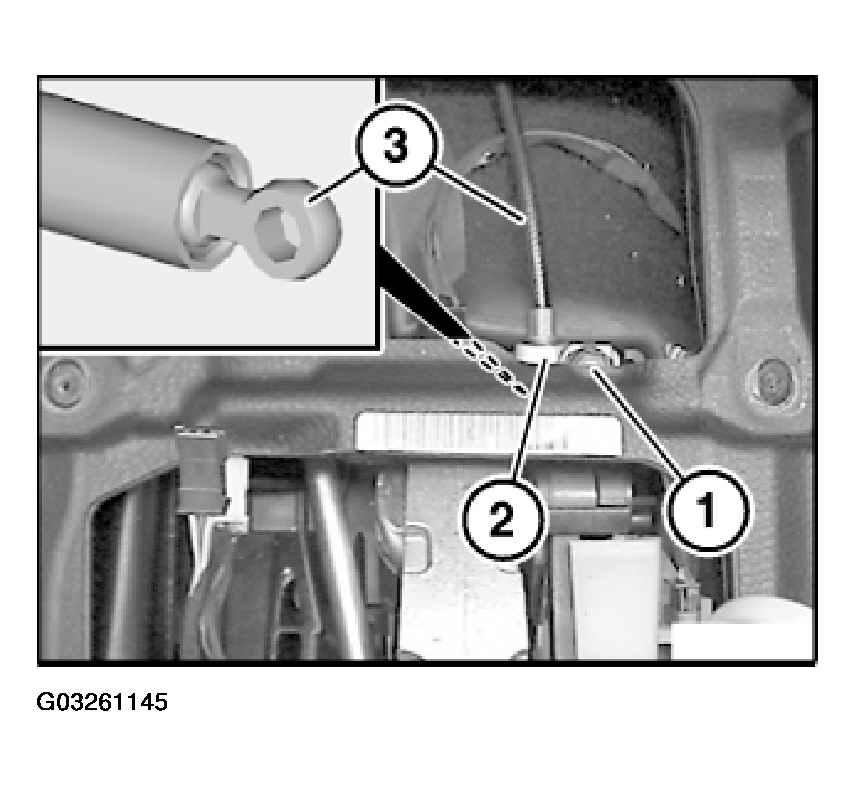

Fig 1: Releasing Screw And Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not kink interlock cable.

Turn guide sleeve (1) through approx. 45°.

Remove interlock cable (2) from steering column and pull out.

If necessary, remove cord/wire from interlock cable (2).

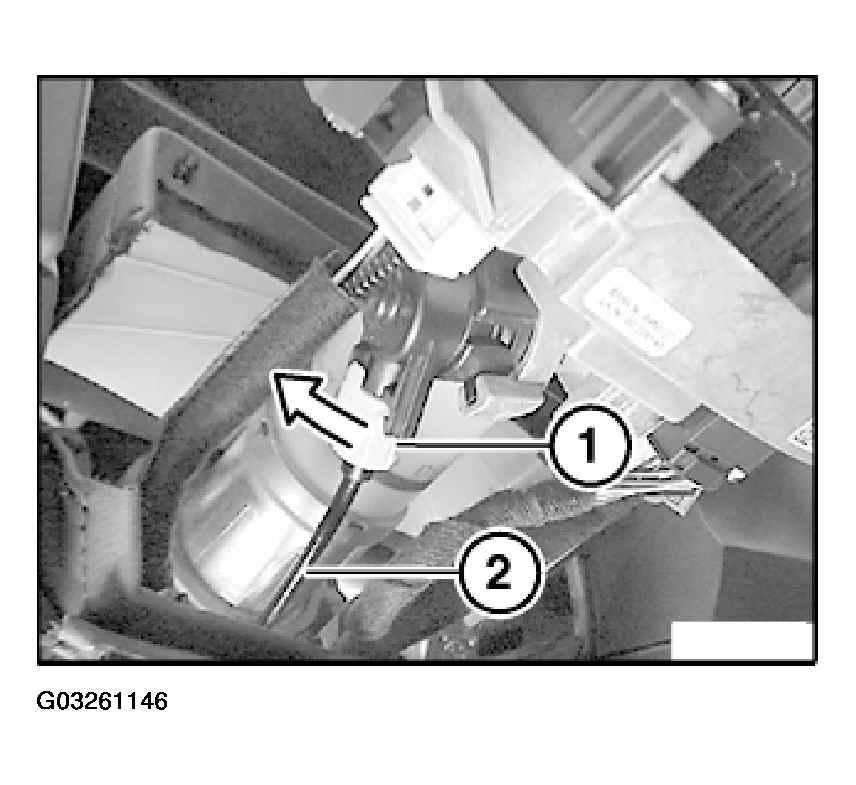

Fig 2: Removing Interlock Cable From Steering Column And Pulling Out

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Tie cord/wire to end of new interlock cable.
