Removal & Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

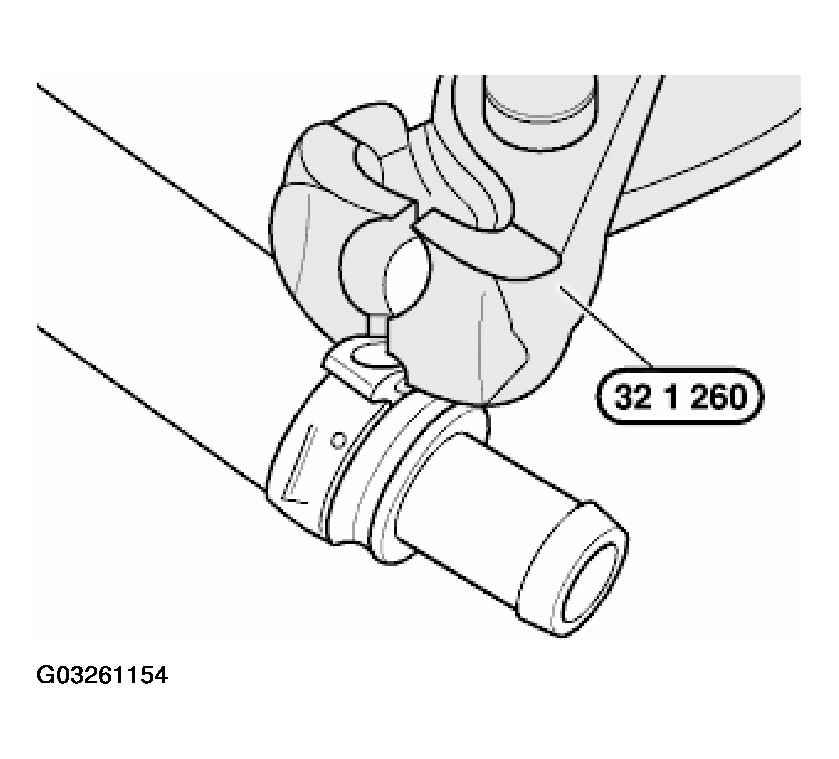

Fig 1: Removing Ear Clip And Placing Special Tool 32 1 260 At Right Angles To Ear

G03261154

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

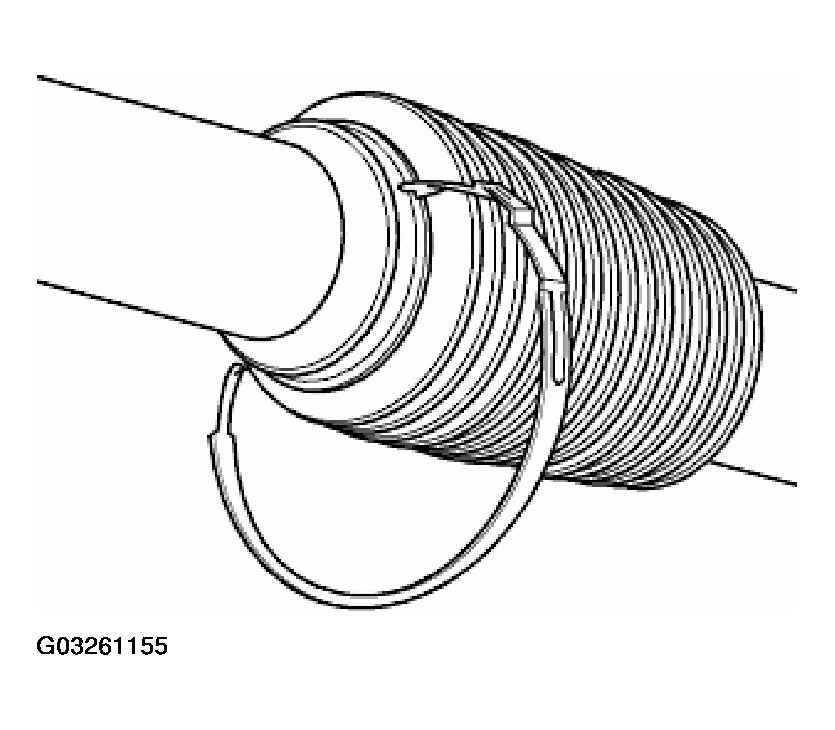

Fig 2: Identifying Ear Clip Fitted Axially And Radially After The Hook Fastener Opened

G03261155

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

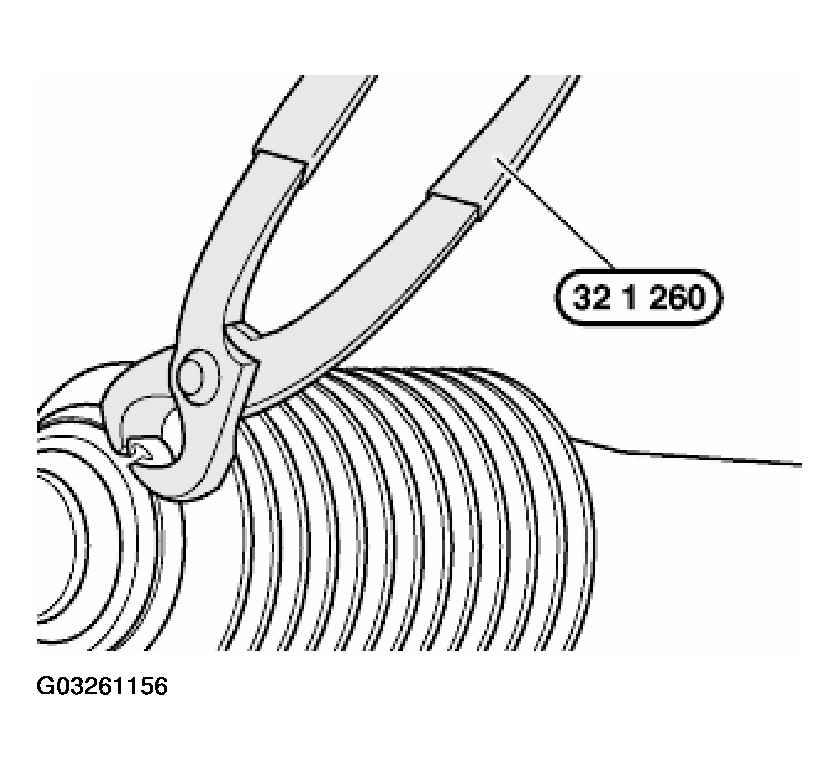

Fig 3: Attaching Hook Fastener And Pressing Ear Together With Special Tool 32 1 260

G03261156

Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access.

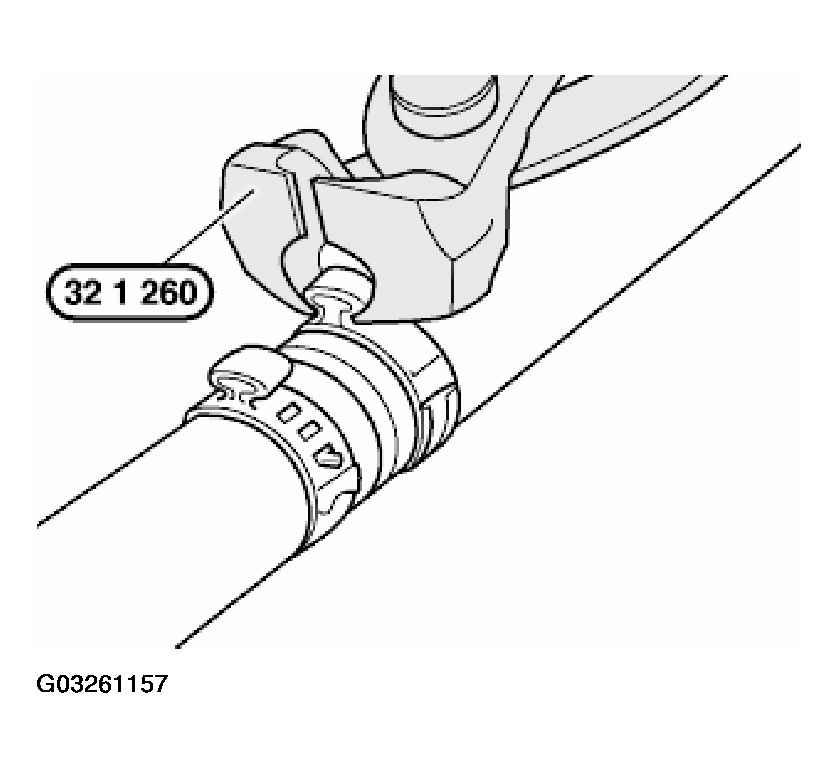

Fig 4: Identifying Side Cutter Of Special Tool 32 1 260

G03261157

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Gap (A) max. 1 mm!

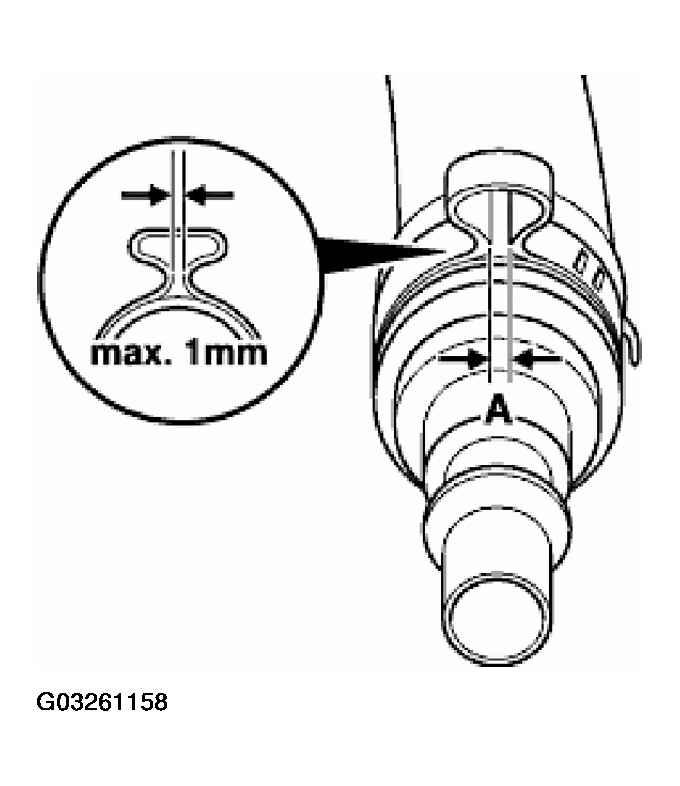

Fig 5: Measuring Gap

G03261158

Courtesy of BMW OF NORTH AMERICA, INC.
