32 41 061 Replacing power steering vane pump
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. See 32 13 006 Bleeding Power Steering Unit .
- Check pipe connections for leaks
- Version with Dynamic Drive: If necessary, carry out initial operation for Dynamic Drive. See INITIALIZING DYNAMIC DRIVE .
Necessary preliminary tasks:
- Check function of vane pump
- Remove vane pump

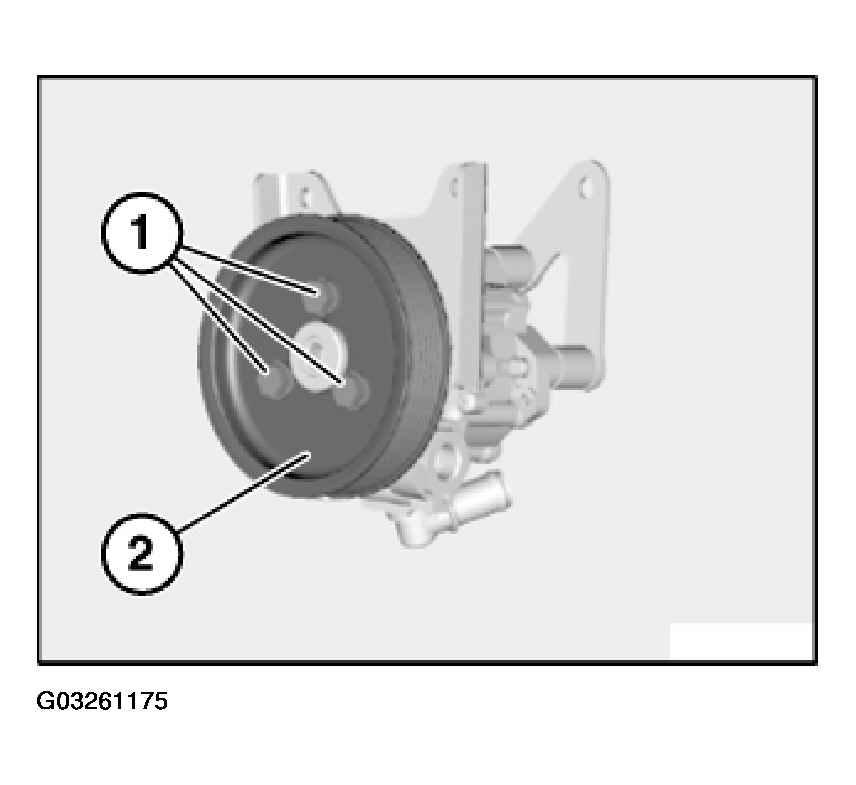

Release screws (1).
Tightening torque, see 32 41 14AZ in WHEEL & TIRES - TIGHTENING TORQUES .
Remove belt pulley (2).
Installation:
Lettering on belt pulley (2) points forwards.
