32 00 Suspension Identification By Way Of Label

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The type of suspension can be identified from the label on the spring strut/shock absorber.

On the label: 1. BMW part number, 2. Type of suspension - BA = Standard suspension (basic) - SP = Sport suspension or rough road package

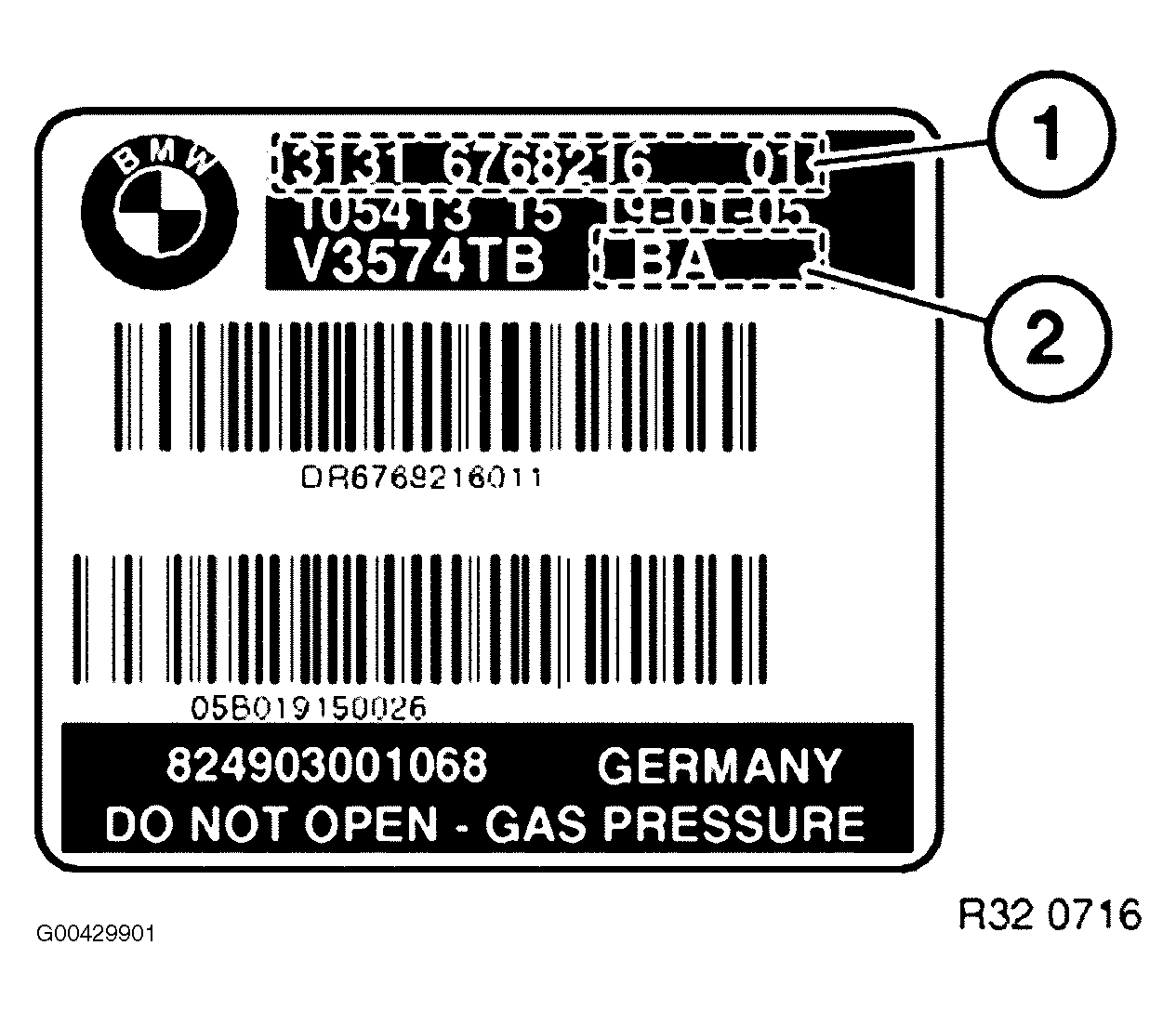

Fig 1: Identifying Label

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of "SP" identification, there is a further distinction between:

Sport suspension without spacer ring (A)
Rough road package with spacer ring (A) above the support bearing

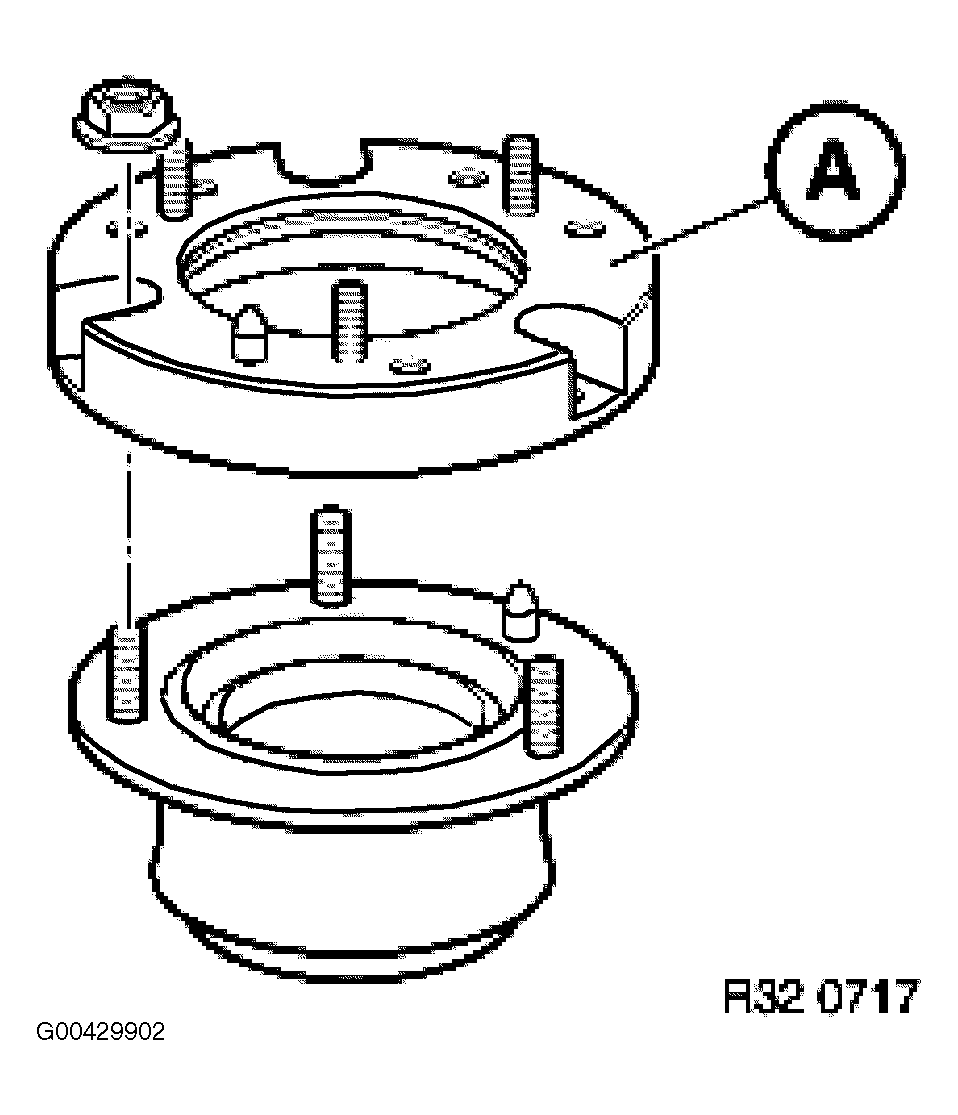

Fig 2: Noting "SP" Identification
Courtesy of BMW OF NORTH AMERICA, INC.
