32 00 620 Adjusting rear axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Replace nut (2) and tighten to 5 N.m.

Turn eccentric bolt (1) to adjust camber to set point value.

Tighten nut (2).

Tightening torque is 165 N.m.

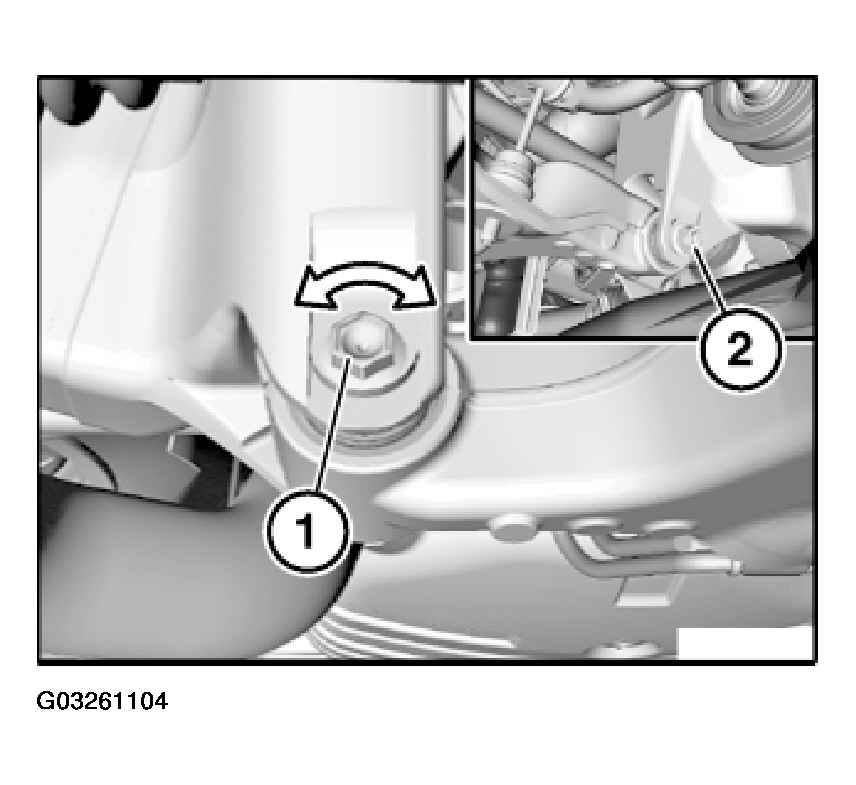

Fig 1: Turning Eccentric Bolt To Adjusting Camber To Set Point Value

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting toe:

Replace nut (2) and tighten to 5 N.m.

Turn eccentric bolt (1) to adjust toe to specified value.

Tighten nut (2).

Tightening torque is 65 N.m.

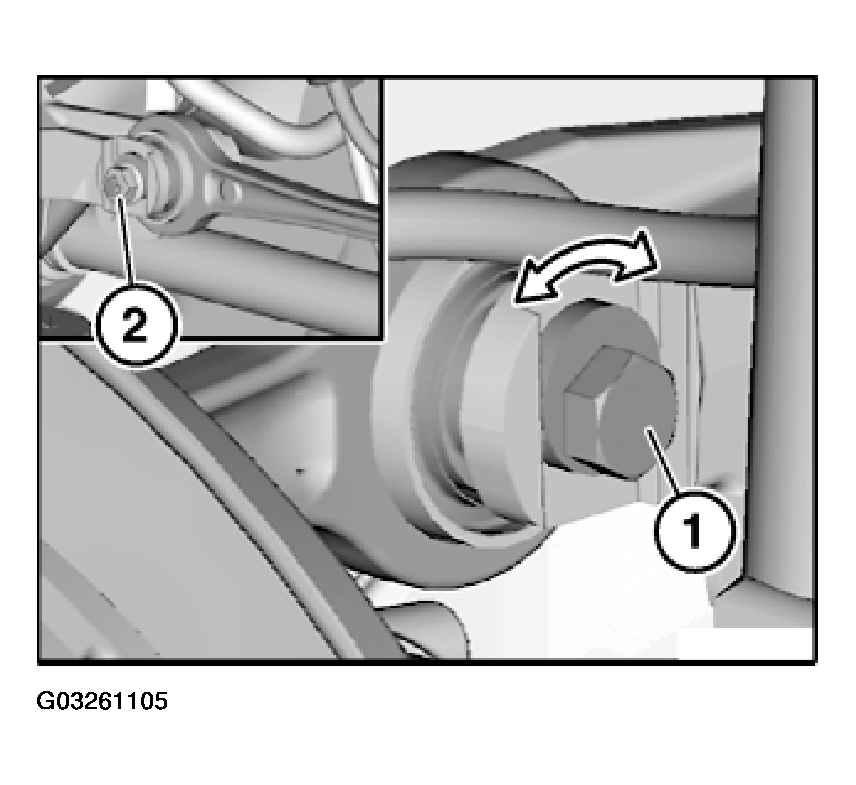

Fig 2: Turning Eccentric Bolt To Adjusting Toe To Specified Value

Courtesy of BMW OF NORTH AMERICA, INC.
