32 00 610 Adjusting toe-in and camber on front axle: Adjustment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!

NOTE: Camber and toe-in influence each other. Adjust the toe-in first in order to simplify the adjustment procedure.

After installation:

Version with active front steering: Remove special tool 32 4 150.

Version with active front steering:

Set cumulative steering angle by means of the service function "Carry out initial operation/adjustment for active front steering" to "zero".
Install special tool 32 4 150 to secure active front steering power steering gear.
NOTE: If the special tool 32 4 150 cannot be installed, make sure during camber or toe adjustment that the cumulative steering angle remains at "zero".

IMPORTANT: Once the special tool 32 4 150 has been fitted, the cumulative steering angle must still be set to "zero"!

Check cumulative steering angle, reposition special tool 32 4 150 if necessary.

Version without active front steering:

Align steering wheel and secure with steering wheel arrester.

Adjusting toe-in/toe angle difference:

If necessary, remove steering gear cover at side.

Clean thread on tie rod.

Slacken clamping nut (2), gripping tie rod end (1) in the process.

Remove clamp (4).

Adjusting procedures:

Turn tie rod (3) to adjust toe-in to specified value.
Check cumulative steering angle; if necessary, set to "zero"
Check toe values; if necessary, repeat adjustment procedure

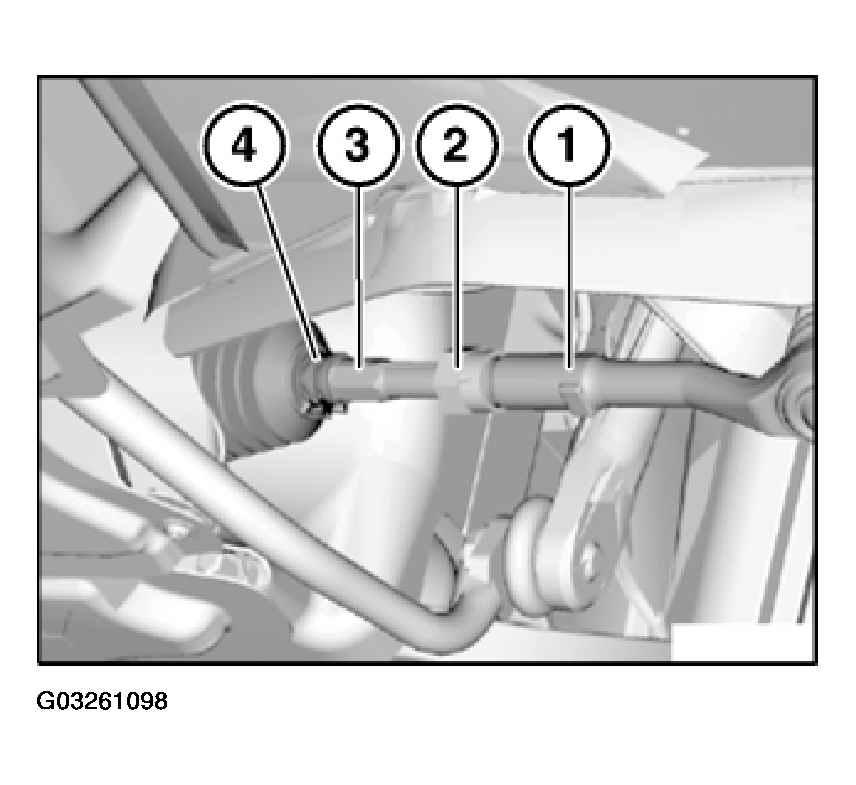

Fig 1: Slackening Clamping Nut, Gripping Tie Rod End

G03261098

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down clamping nut (2).

Tightening torque 32 21 5AZ see WHEEL & TIRES - TIGHTENING TORQUES .

Fit clamp (4).

Adjusting camber:

M5:

Disconnect connector (2).

Unclip connecting cable (1) from spring strut dome cover (3).

Detach connecting cable (1) from front spring strut.

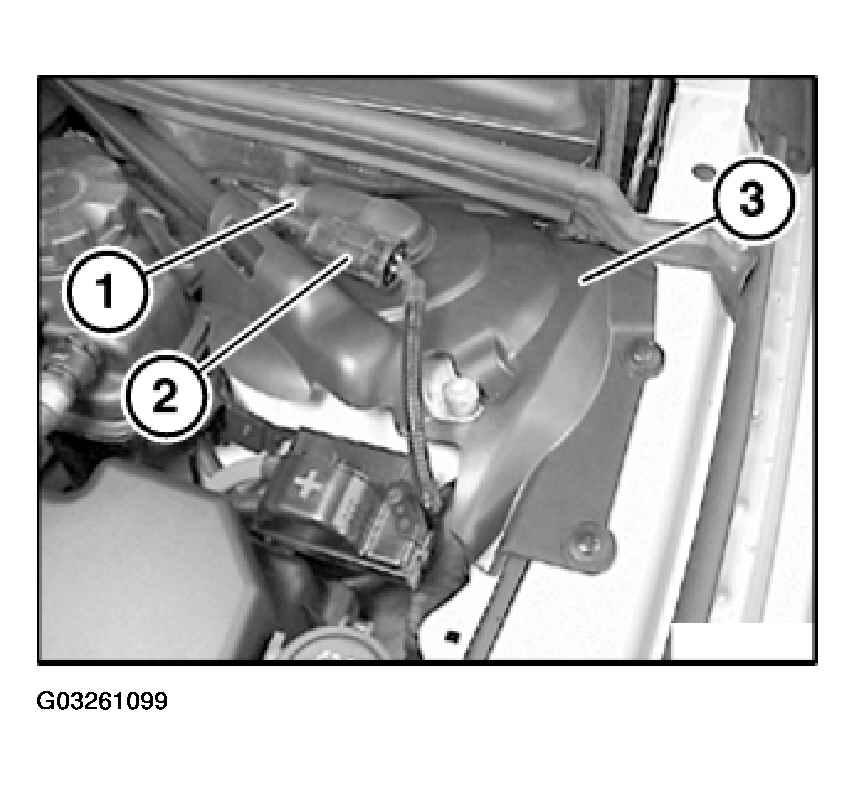

Fig 2: Unclipping Connecting Cable From Spring Strut Dome Cover

G03261099

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release expander rivet (1).

If necessary, unclip spring strut dome cover (2) from front cross strut.

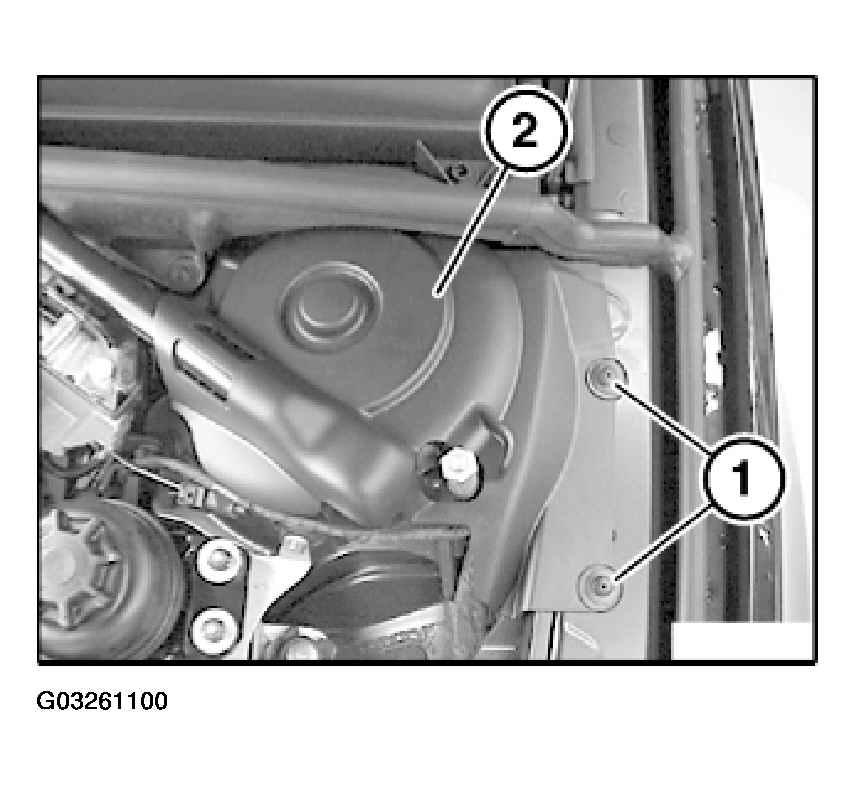

Fig 3: Unclipping Spring Strut Dome Cover From Front Cross Strut

G03261100

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove protective cap.

Knock out centering pin (1) in downwards direction.

Clean wheel arch from below in area of support bearing with compressed air.

Slacken nut (2) approx. 1 to 1.5 turns.

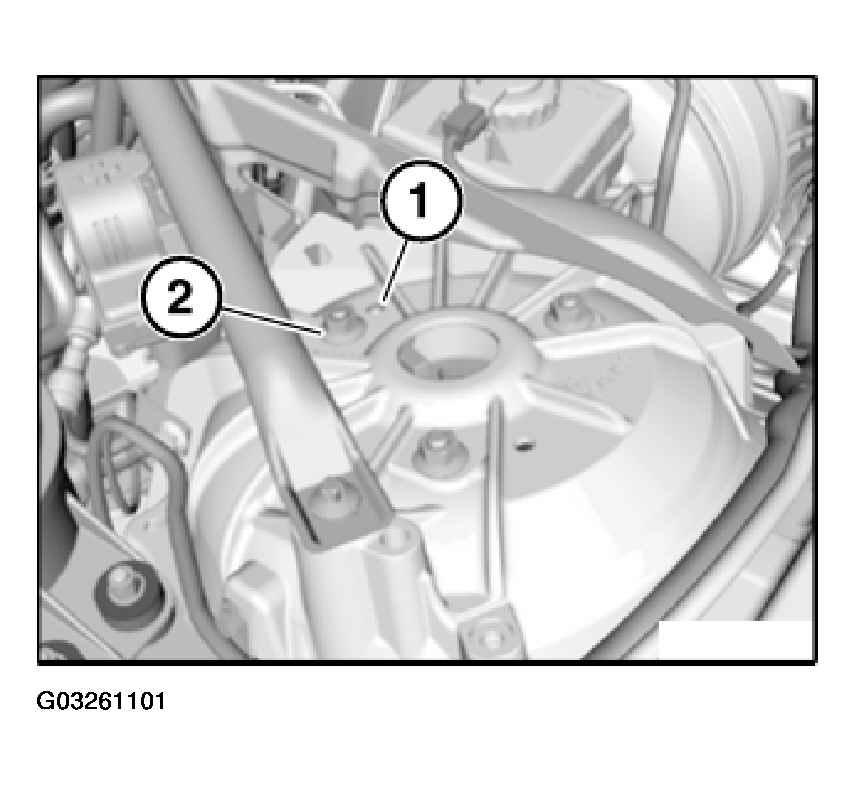

Fig 4: Knock Out Centering Pin In Downwards Direction

G03261101

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 32 3 190 into wheel arch opening and over nut. Replace nuts (3) and screw on but do not tighten down fully. Adjusting procedures:

Turn nut (4) in special tool 32 3 190 to adjust camber to specified value.
Check cumulative steering angle; if necessary, set to "zero"
Check camber values; if necessary, repeat adjustment procedure

Tighten down nuts (3)

Tightening torque, see 31 31 1AZ in WHEEL & TIRES - TIGHTENING TORQUES .

Remove special tool 32 3 190.

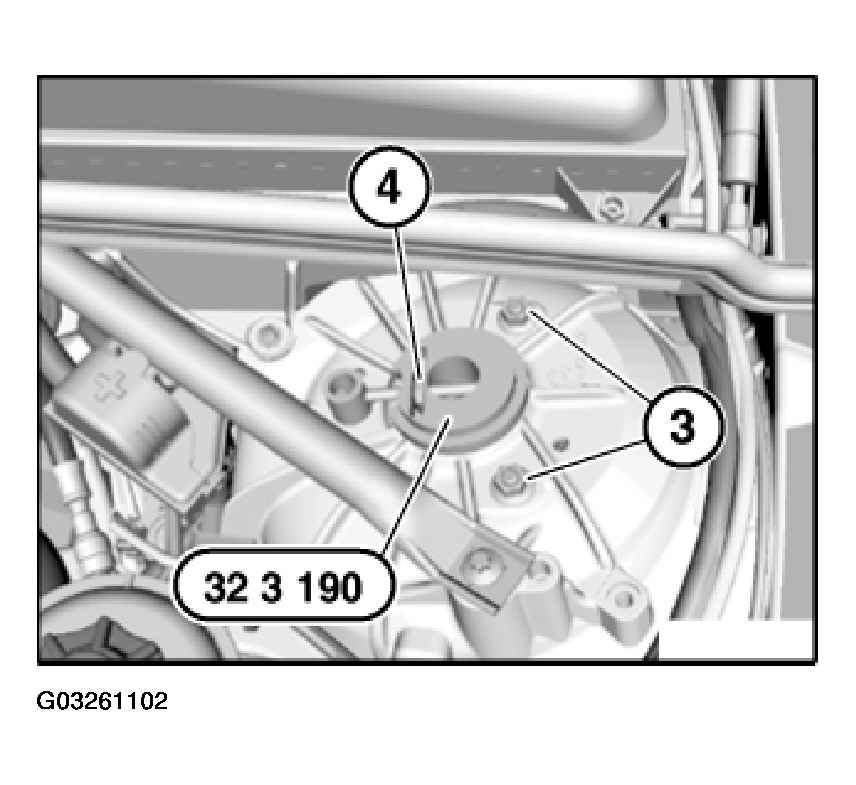

Fig 5: Turning Nut In Special Tool 32 3 190 To Adjust Camber To Specified Value

G03261102

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (2) and tighten down.

Tightening torque 31 31 1AZ.WHEEL & TIRES - TIGHTENING TORQUES .

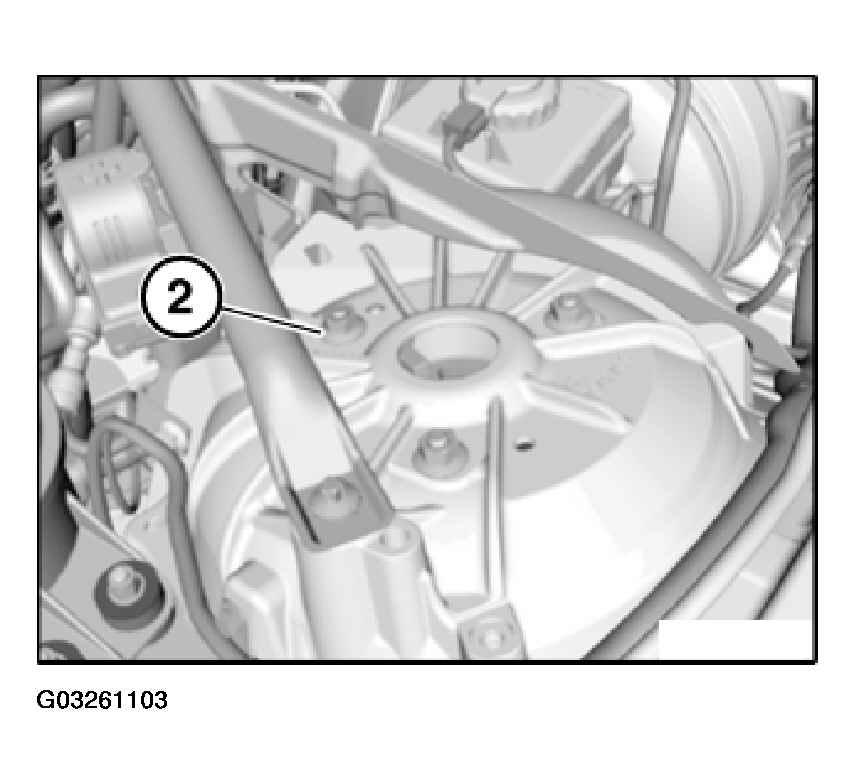

Fig 6: Replacing Nut And Tightening Down

G03261103

Courtesy of BMW OF NORTH AMERICA, INC.
