17 11 370 Removing and installing/replacing cooling loop for power steering
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove module carrier
Recycling:
Catch and dispose of hydraulic fluid.
Observe country-specific waste-disposal regulations.

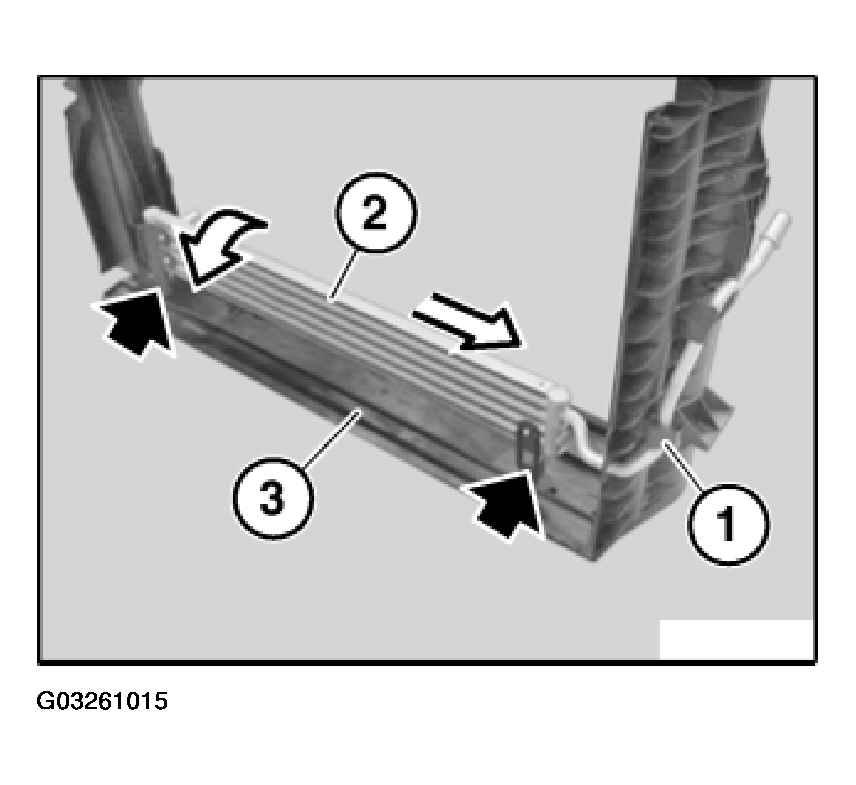

Release retaining clip (1) on left.
Unfasten screws.
IMPORTANT:
Risk of damage to connecting pipes.
Carefully press cooling loop (2) on right towards front, then unclip on left and remove from module carrier (3).
