17 11 046 Removing and installing/replacing module carrier

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove radiator cover
Remove fan cowl with electric fan
Drain coolant
Remove radiator
Draw off fluid from power steering

Installation:

Bleed power steering unit

Unlock hydraulic lines on cooling loop and disconnect
Secure A/C condenser against damage and against falling down.

Press lock (1) and remove holder (2) downwards.

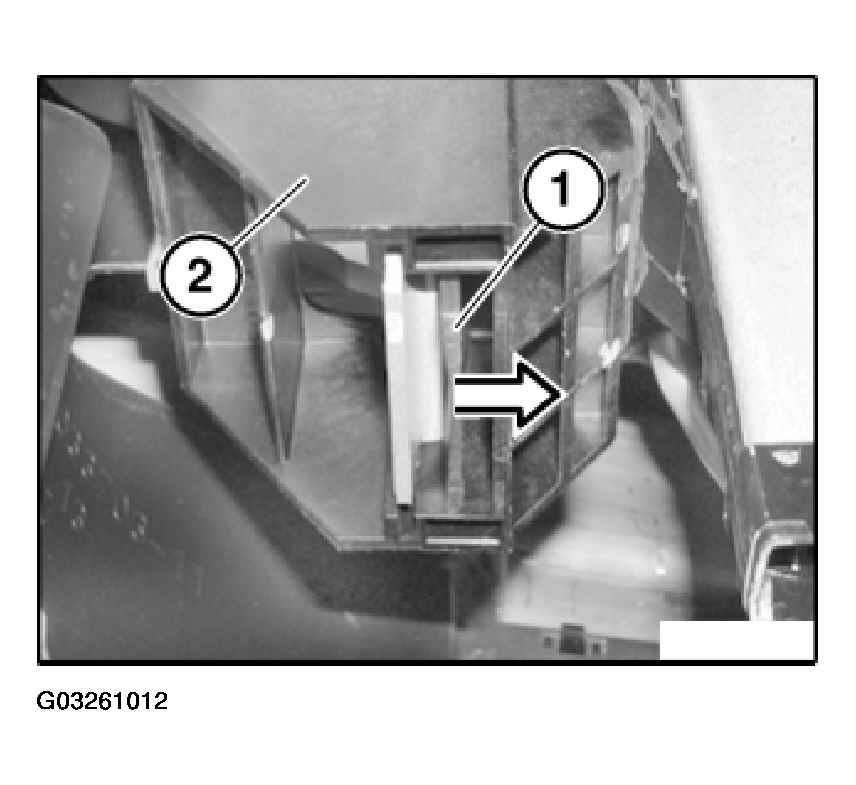

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows the left holder: The same procedure applies to the opposite side.

Installation:

Rubber mounts fall out easily, ensure correct installation position.

Remove module carrier (1) towards bottom.

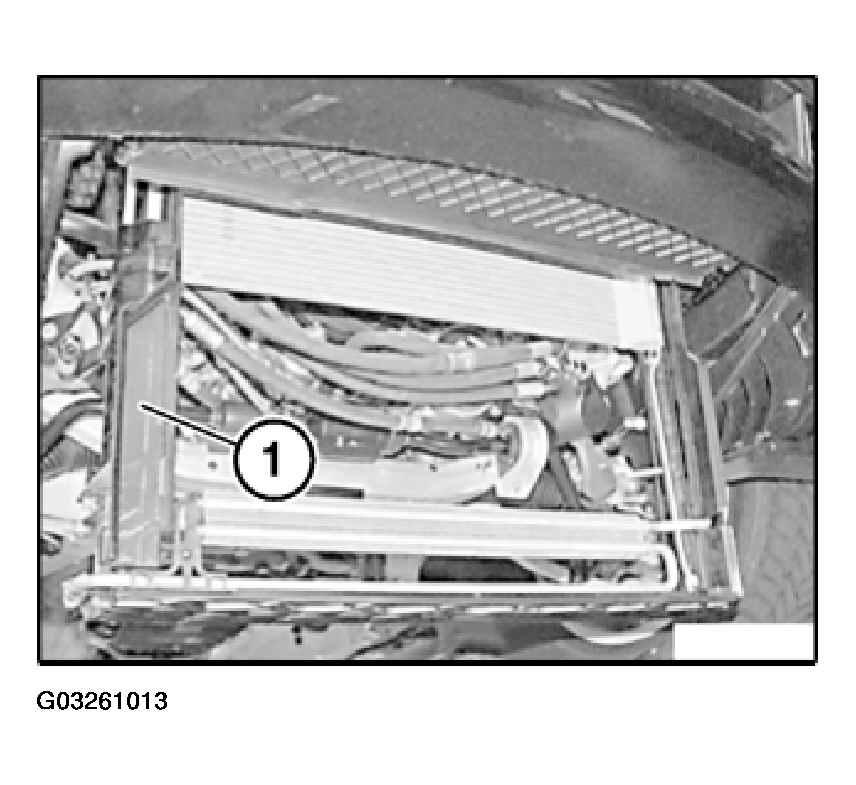

Fig 2: Removing Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing module carrier:

Convert power steering cooling loop.
