13 63 590 Replacing fuel pump relay

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit.
Switch off ignition.
Open glovebox.

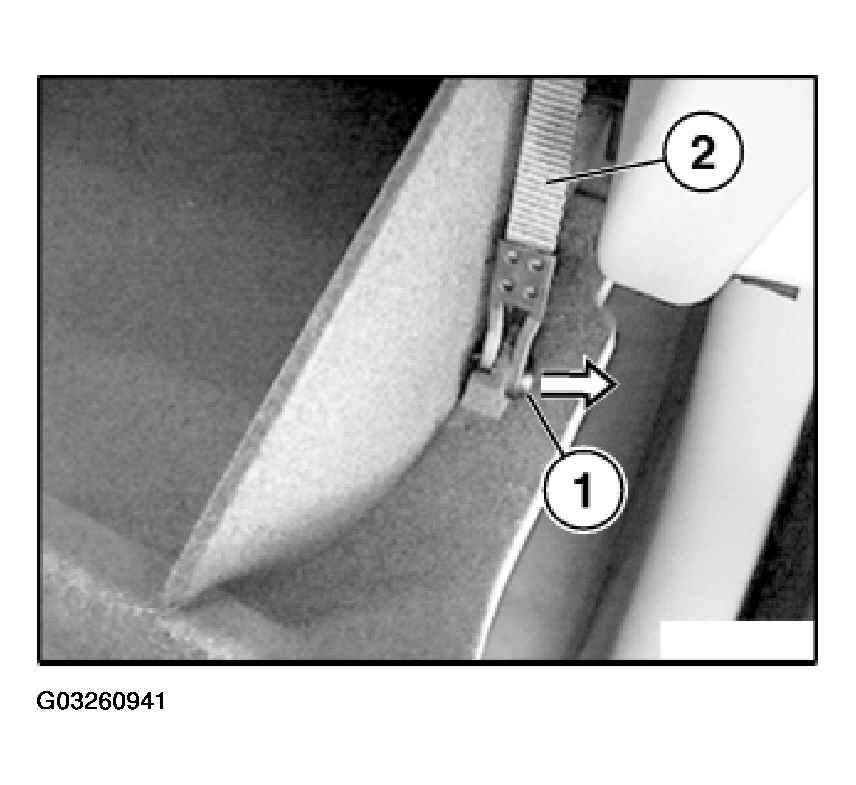

Unclip pin (1) from retaining strap (2).

Fig 1: Uncliping Pin From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

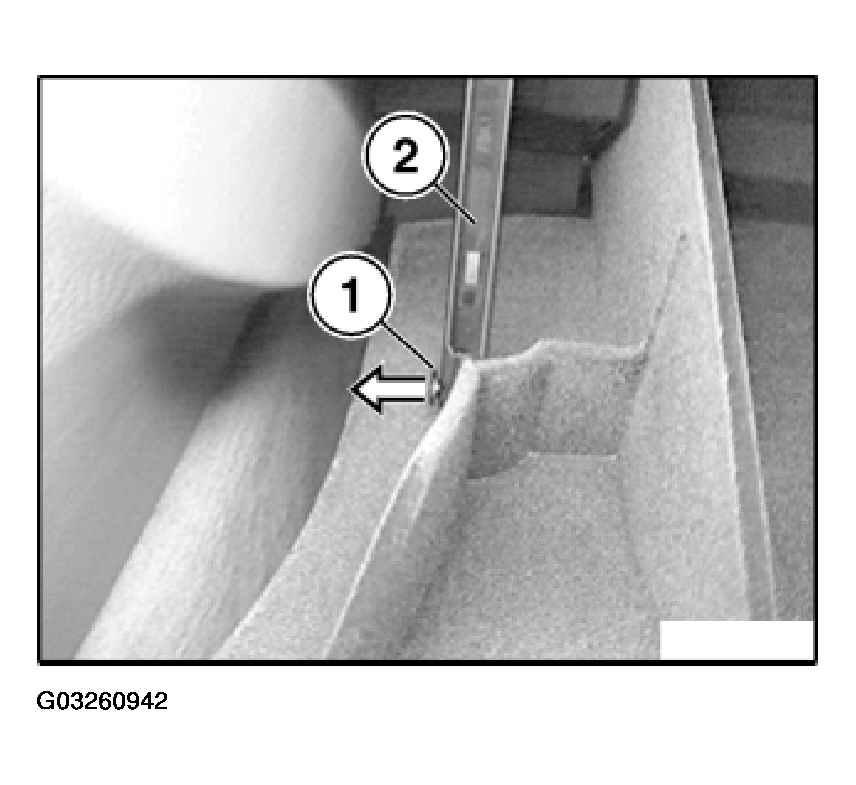

Unclip pin (1) from shock absorber (2).

Fig 2: Uncliping Pin From Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

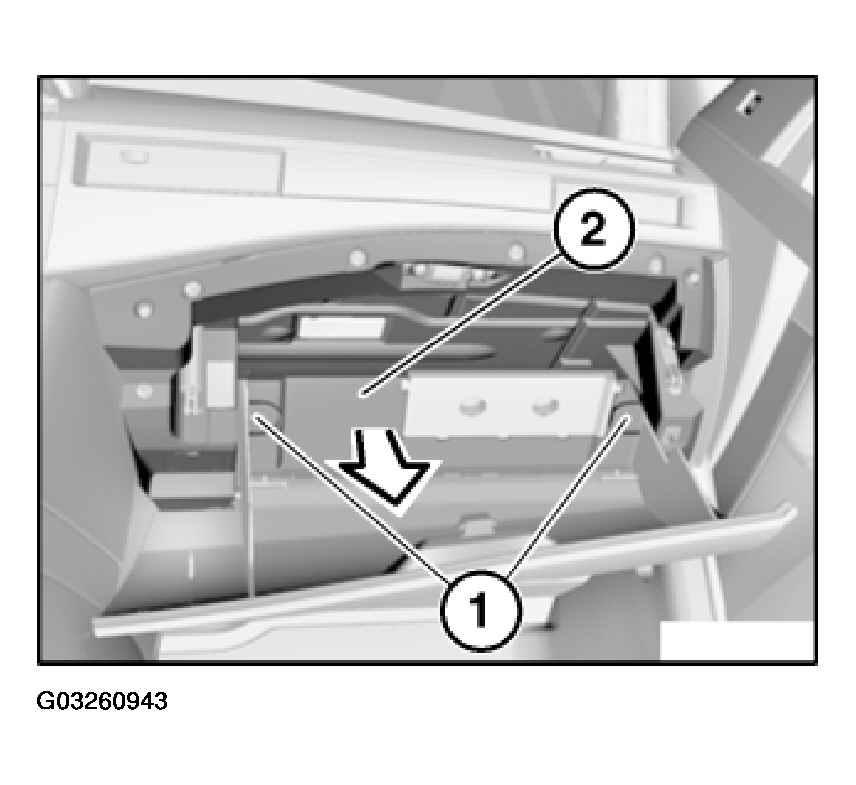

Turn catches (1) through 90° and remove trim (2).

Fig 3: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

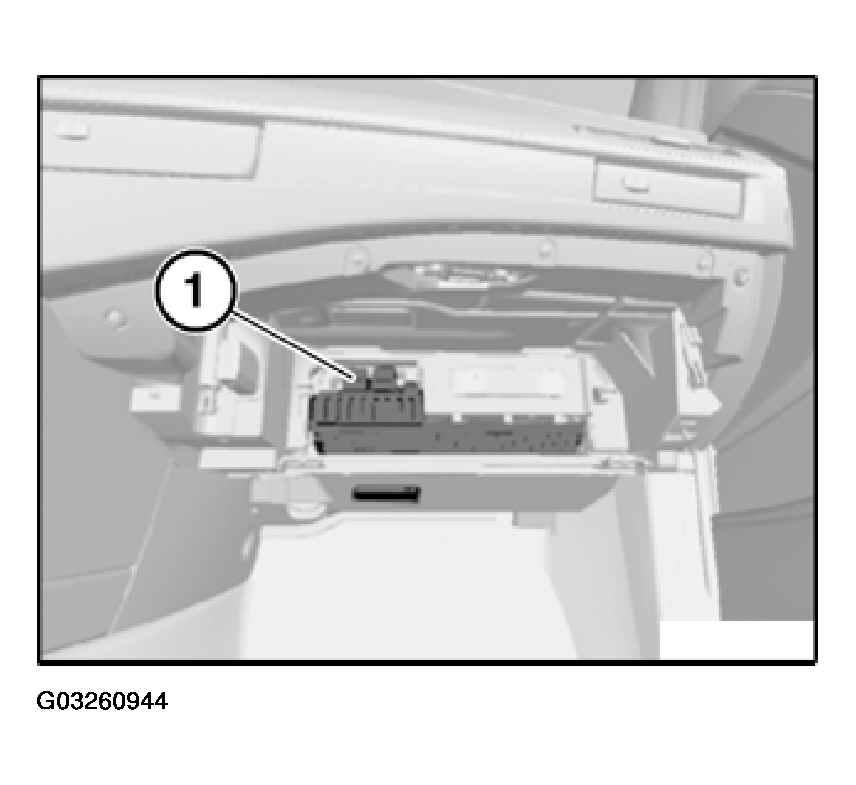

Detach fuel pump relay (1).

NOTE: For improved clarity, the glovebox is not shown. After removal of fuel pump relay and during engine starting sequence:

Fuel pump no longer starts up
Engine fails to start.

Fig 4: Detaching Fuel Pump Relay
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Now clear the fault memory.
