13 54 250 Removing and installing/replacing intake hose (M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove suction filter housing.

Release lock (1) and detach from intake hose (5).

Release screw (3) and place suction jet pump (2) to one side.

Loosen hose clamps (4).

Detach intake hose (5) from throttle assembly and idle speed control valve and remove upwards.

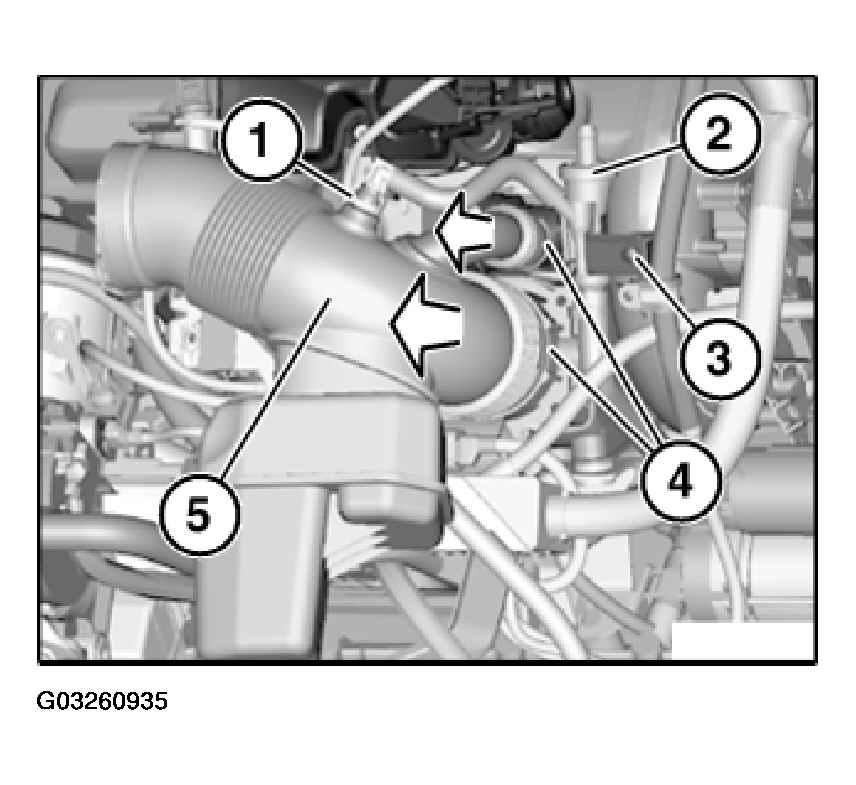

Fig 1: Detaching Intake Hose From Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check intake manifold for leaks.

Check function of DME.
