13 54 030 Removing and installing/sealing throttle assembly (M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Observe instructions for 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY ..

Disconnect battery negative lead from battery and lay to one side.

Remove Intake Filter Housing .

Remove intake hose completely (between intake filter housing and throttle assembly).

Disconnect following plug connections:

Resonance flap
Idle-speed control valve

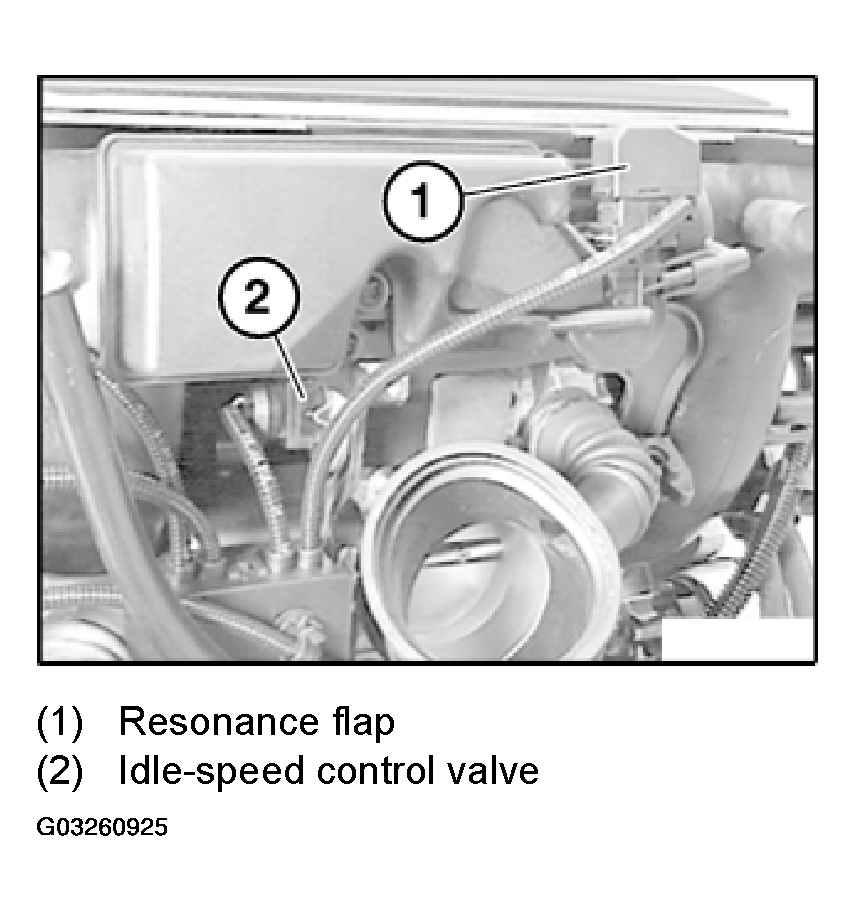

Fig 1: Identifying Resonance Flap & Idle Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect following plug connections:

NOTE: For purposes of clarity, the power steering pump supply tank is not shown.

Oil pressure switch
Oil temperature switch

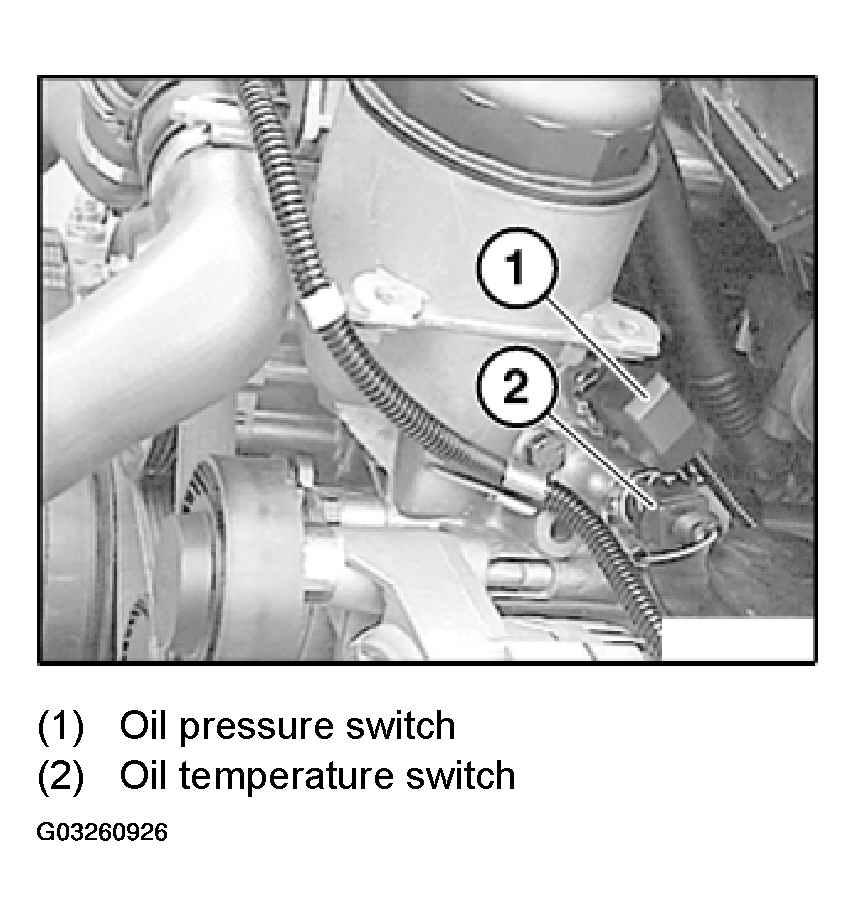

Fig 2: Identifying Oil Pressure & Oil Temperature Switch
Courtesy of BMW OF NORTH AMERICA, INC.

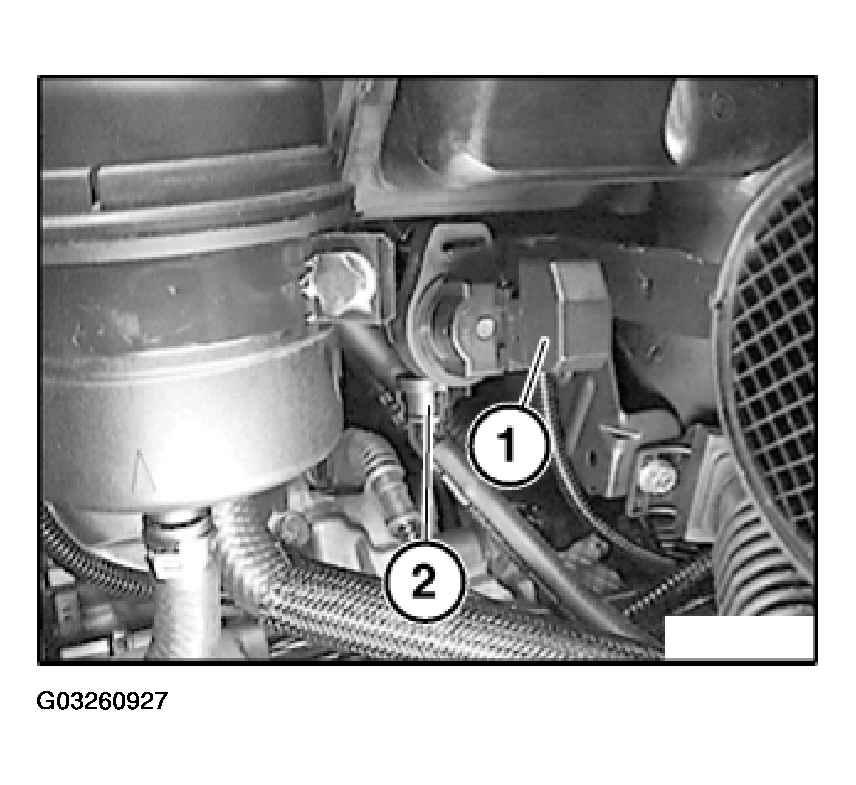

Unlock plug (1) and detach from tank venting valve.

Fig 3: Unlocking Plug And Detaching From Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

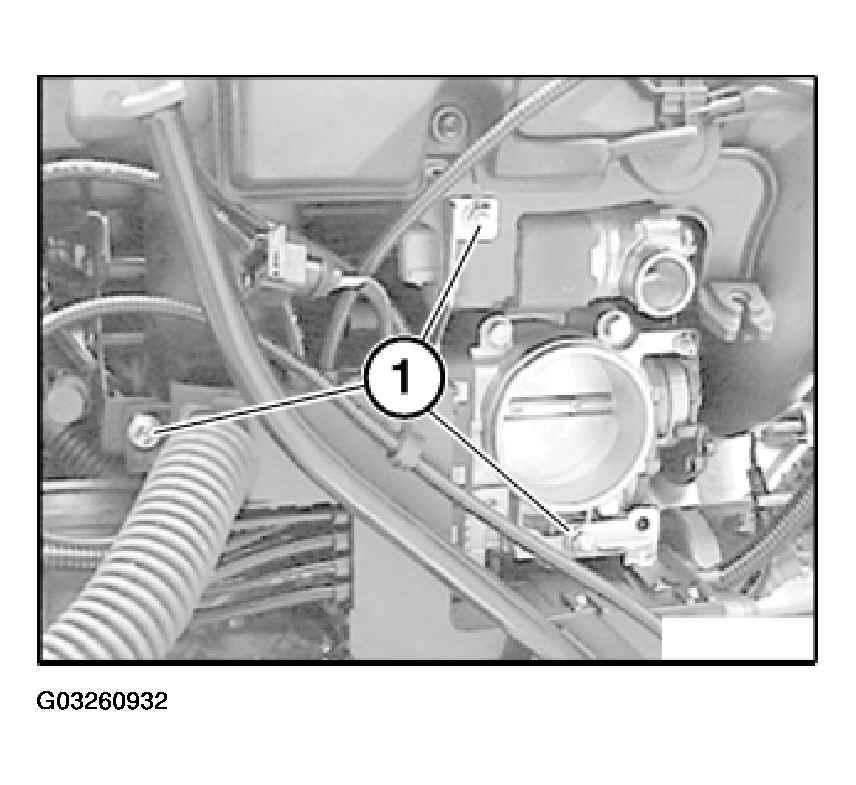

Release screws (1) on cable duct mounting.

Fig 4: Releasing Screws On Cable Duct Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

E46 only:

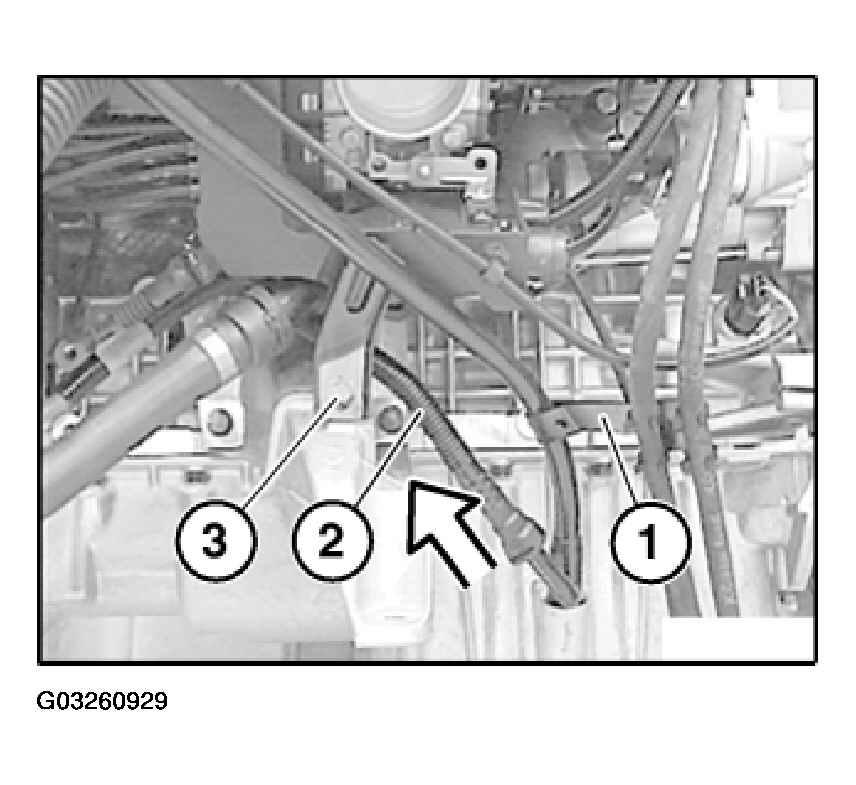

Unclip fuel lines and cable of oil level sensor out of holder (1) on oil dipstick guide tube.

Detach oil return line (2) from oil dipstick guide tube.

Release screw (3) and remove oil dipstick guide tube.

Installation:

Replace sealing ring for oil dipstick guide tube.

Fig 5: Removing Oil Dipstick Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

All cars:

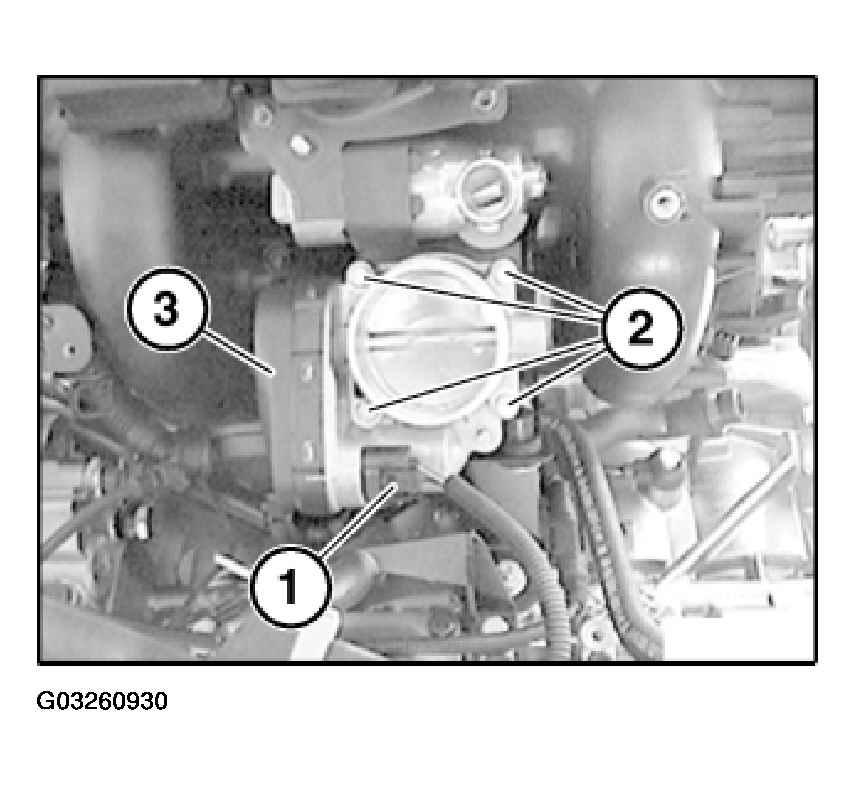

Unlock plug (1) and detach from throttle assembly (3).

Release screws (2) and remove throttle assembly (3).

Fig 6: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

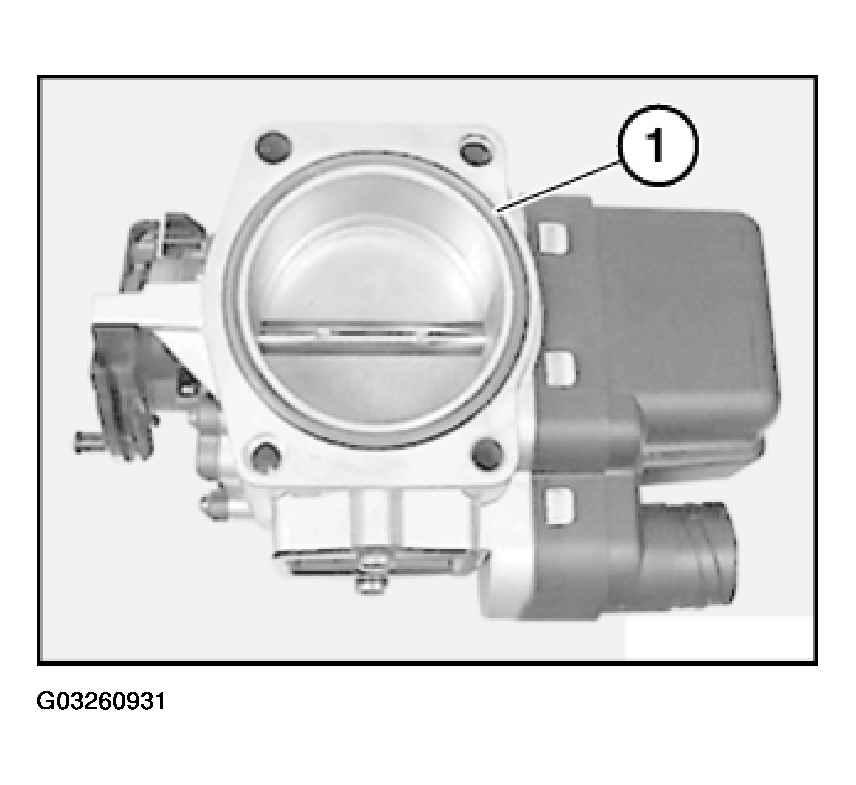

Replace sealing ring (1) between throttle assembly and intake manifold.

Fig 7: Replacing Sealing Ring Between Throttle Assembly And Intake Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A faulty throttle adjusts the adaptation values stored in the DME control unit. These adaptation values must be reset after the throttle assembly has been replaced.

Clearing adaptation values:

Connect DIS Tester
Select vehicle type
Select "DME Motor Electronics MS43", carry out individual brief test
Continue with bottom right arrow
The "Fault pattern selection" window appears. Select "Function selection" (bottom left)
The "Function and component selection" window appears:
- Select "Service functions"
- Select "Drive"
- Select "Digital Motor Electronics"
- Select "Reset adaptations"
- Select "Test schedule" (bottom left)
The "Test schedule" window appears. Select "Reset adaptations"
Continue with bottom right arrow

For subsequent procedure, follow DIS instructions.

The new adaptation values are stored in the DME control unit after the engine is started for the first time.

Necessary preliminary tasks:

Switch off ignition
Disconnect battery negative lead from battery and lay to one side
Follow instructions for 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY ..
If fitted (E85): remove sound generator
Remove air intake hose

Release screws (1) of cable duct mounting.

Place cable channel to one side.

Fig 1: Releasing Screws Of Cable Duct Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from throttle assembly (3).

Release screws (2) and remove throttle assembly (3).

Fig 2: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

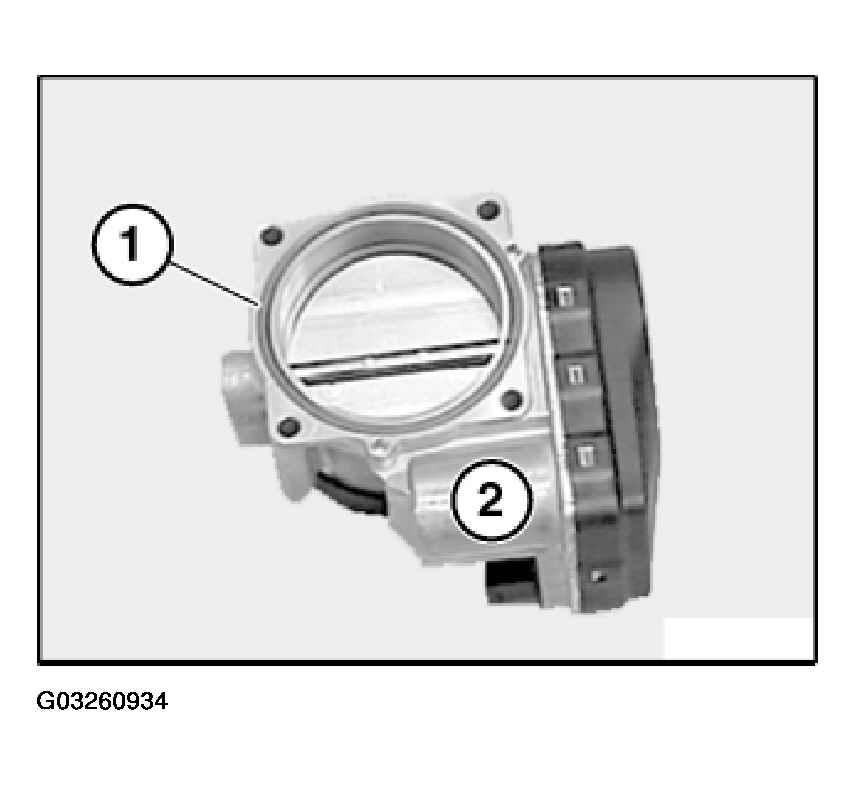

Replace sealing ring (1) on throttle assembly (2).

Fig 3: Replacing Sealing Ring On Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
