13 41 500 Replacing idle speed control valve (M52TU, M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Disconnect battery ground wire.
Observe instructions for disconnecting and connecting battery. See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

M52TU only:

Remove Intake Filter Housing .

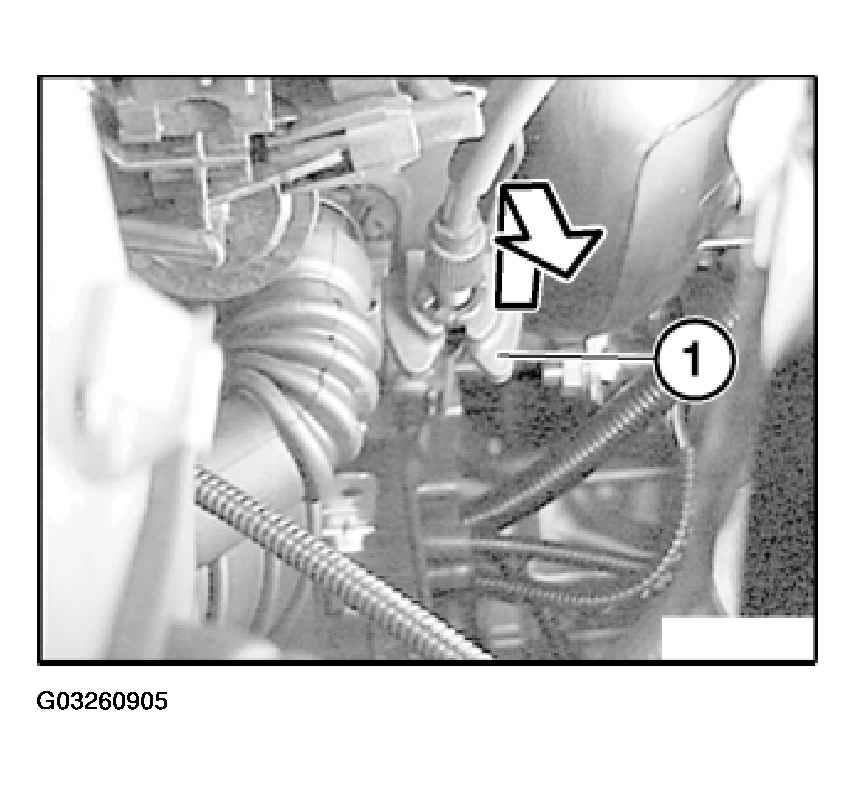

Pull Bowden cable upwards out of holder (1) and suspend from throttle.

Fig 1: Pulling Bowden Cable Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

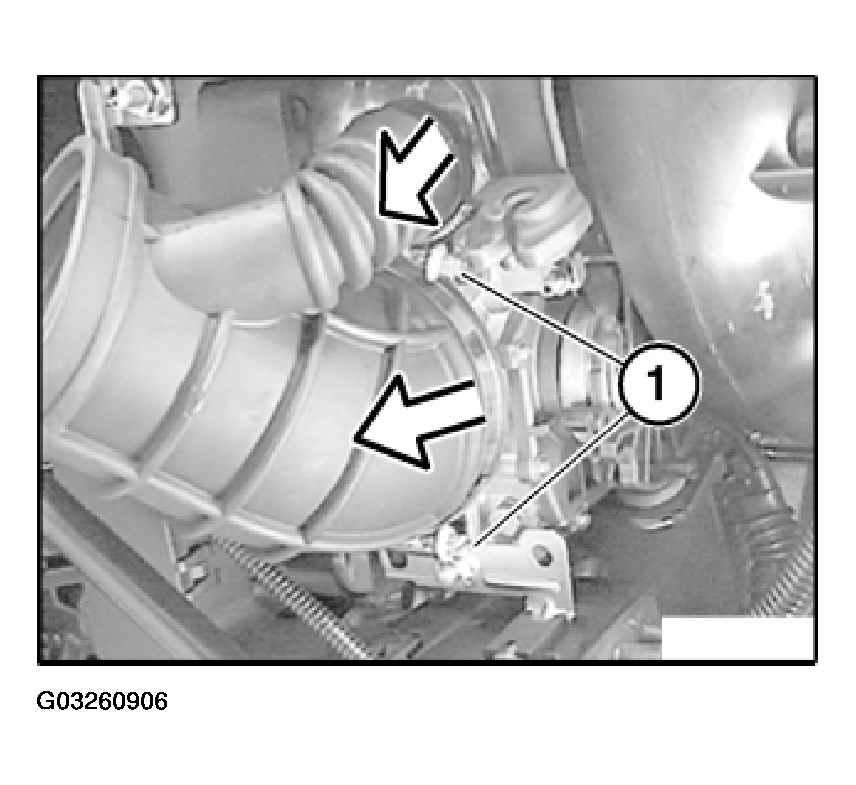

Loosen hose clamps (1).

Detach air intake hose section from throttle assembly and idle actuator.

Fig 2: Loosening Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

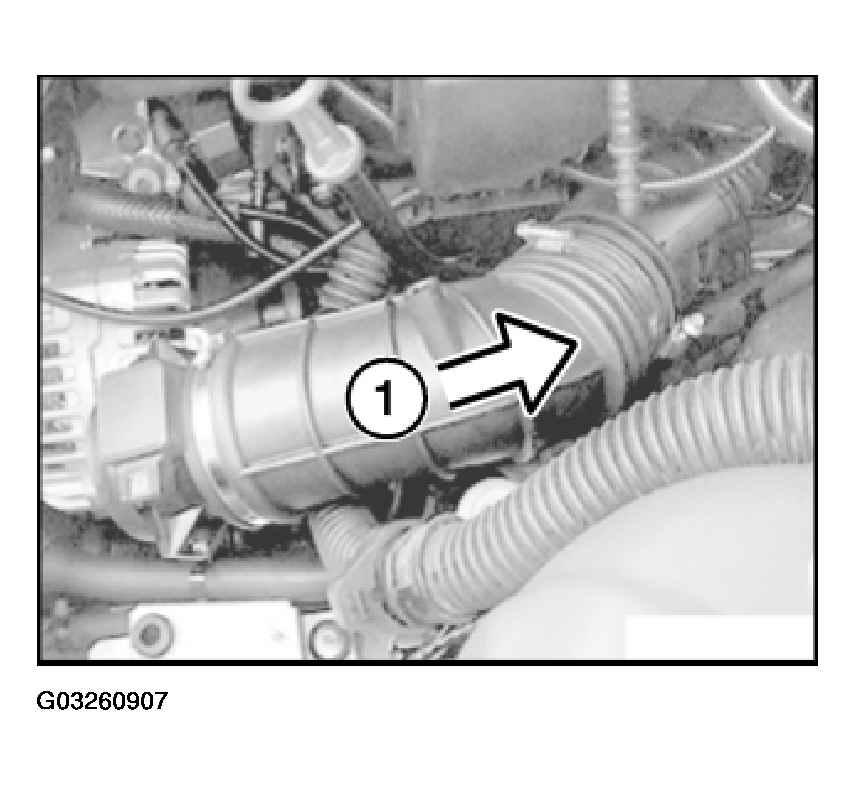

To facilitate installation, fit air-mass flow sensor with intake hose (1). Coat intake hose (1) with antiseize agent.

Fig 3: Fitting Air-Mass Flow Sensor With Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

M54 E46/E53 only:

Remove complete intake hose (between intake filter housing and throttle assembly).

M54 E60/E61/E65/E66 only:

Remove intake hose.

M52TU and M54:

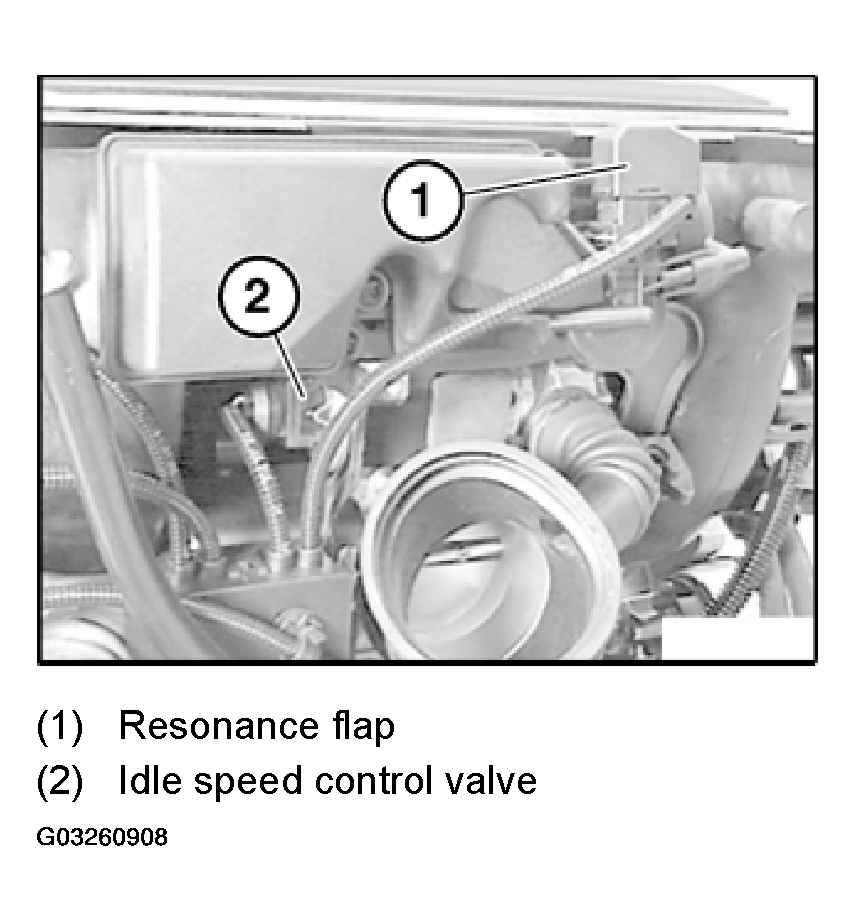

Unfasten following plug connections:

Resonance flap.
Idle speed control valve.

Fig 4: Removing Resonance Flap & Idle Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

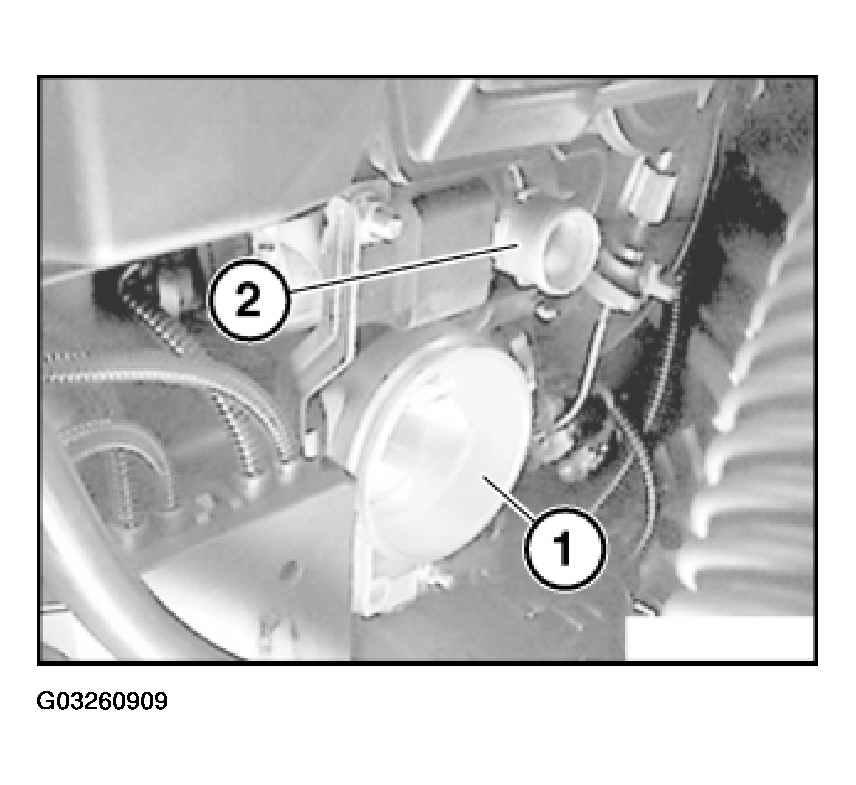

Installation location:

Idle actuator (2) is fitted below intake air manifold, directly above throttle (1).

Fig 5: Locating Idle Actuator (2)

Courtesy of BMW OF NORTH AMERICA, INC.

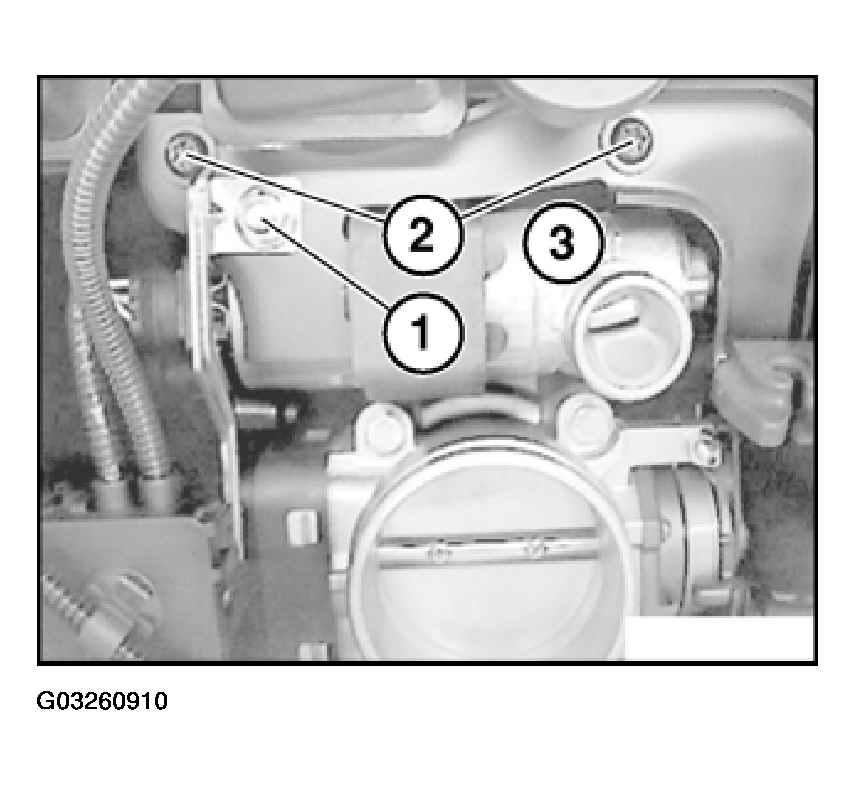

Release screw (1) on cable duct mounting.

Release screws (2) on holder of idle actuator (3).

Remove idle actuator with holder from intake air manifold.

Fig 6: Removing Idle Actuator With Holder From Intake Air Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

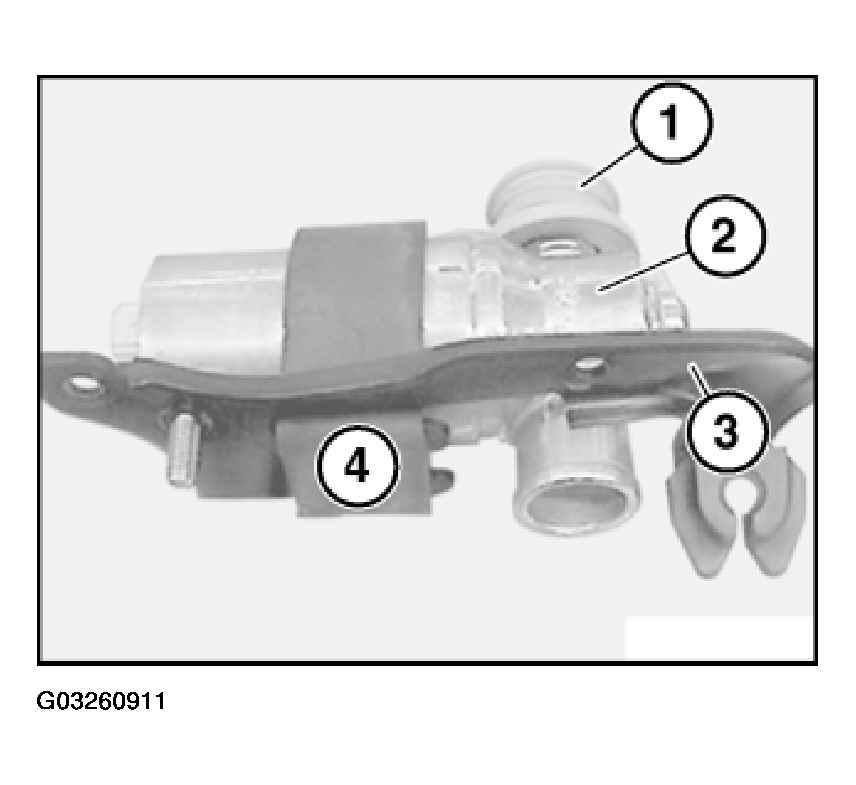

Detach idle actuator (2) from rubber retainer (4).

Always replace gasket (1) from idle actuator (2) to intake air manifold. However, during reinstallation, do not fit gasket on idle actuator but install first in intake air manifold.

Fig 7: Detaching Idle Actuator From Rubber Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

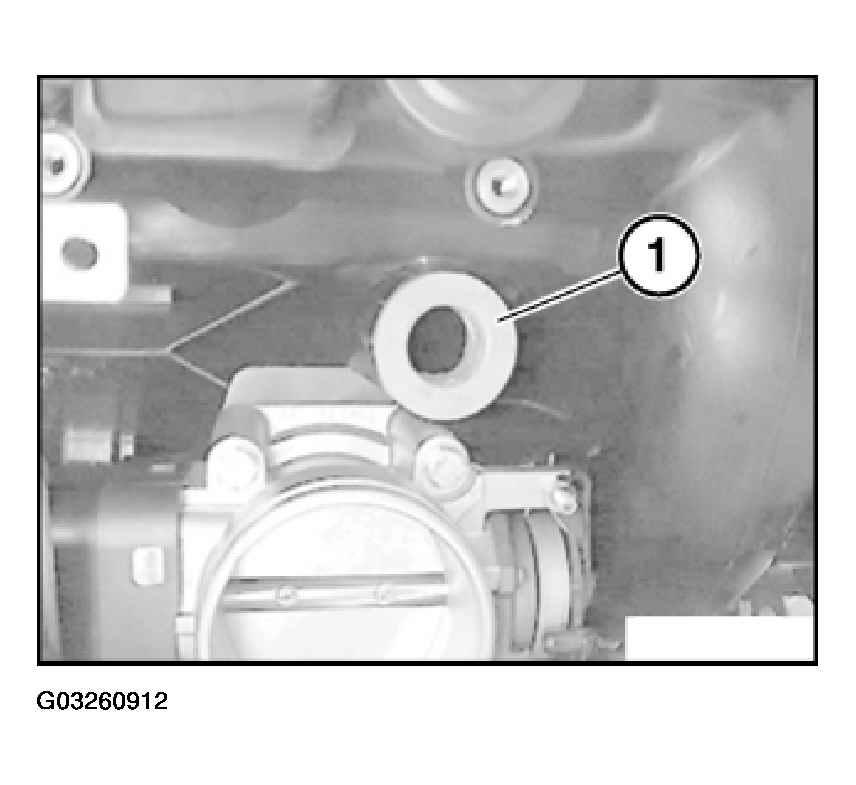

Replace seal (1).

Coat gasket (1) on inside with antiseize agent.

Fig 8: Replacing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Note:

Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
