13 72 001 Replacing air cleaner element (M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

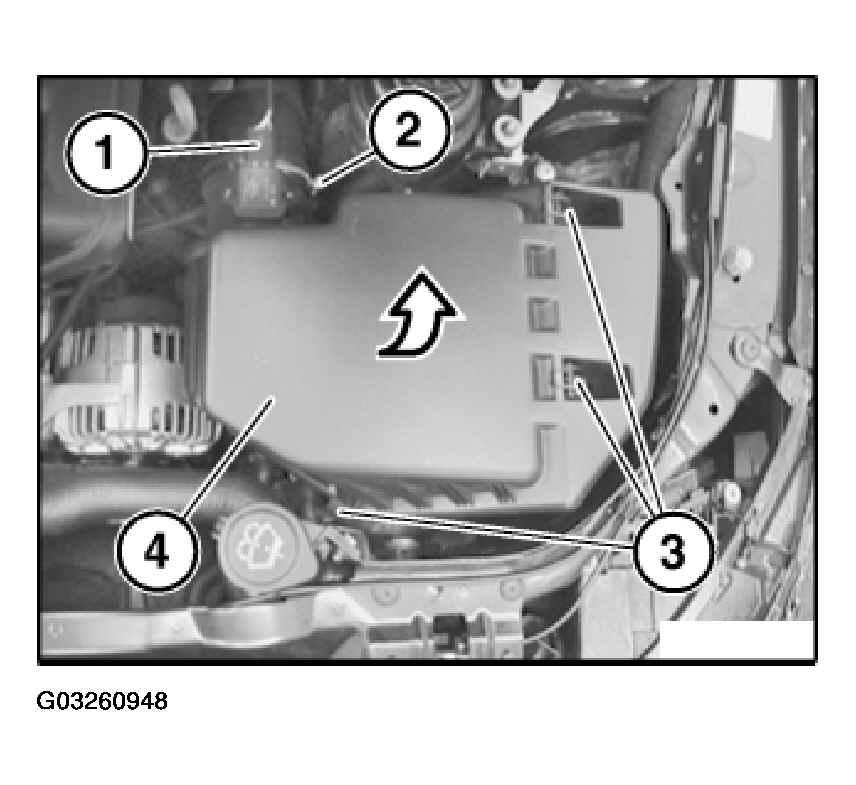

Unlock plug (1) and remove.

Unfasten hose clip (2).

Open locks (3).

Remove upper section of intake filter housing (4) towards top right.

Fig 1: Removing Upper Section Of Intake Filter Housing Towards Top Right

Courtesy of BMW OF NORTH AMERICA, INC.

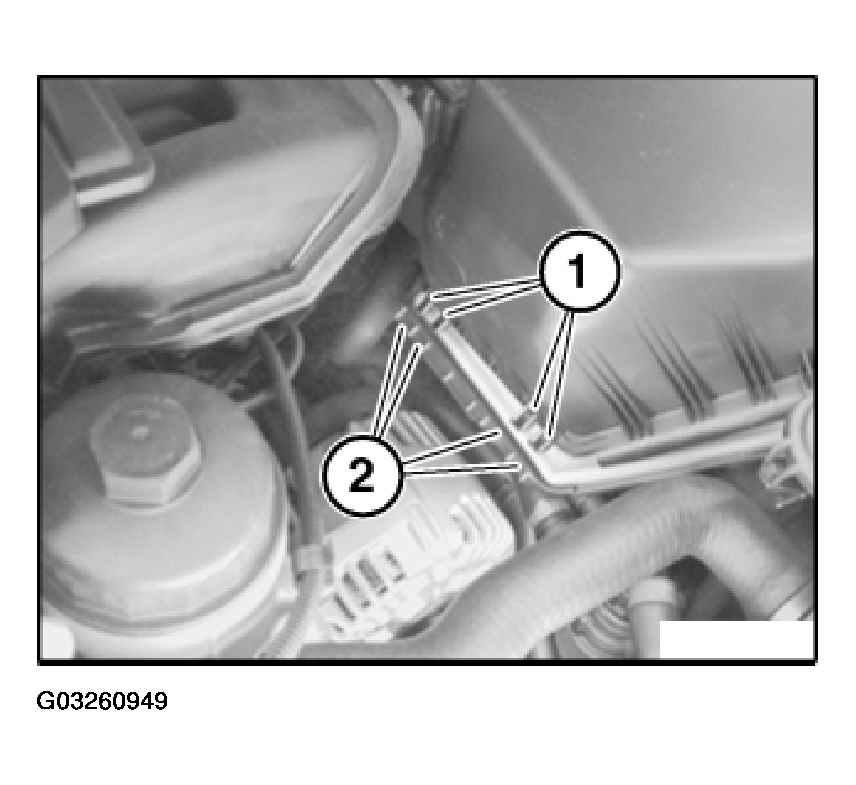

Installation: Make sure lugs (1) are correctly locked in opening slots (2).

Fig 2: Making Sure Lugs Are Correctly Locked In Opening Slots

Courtesy of BMW OF NORTH AMERICA, INC.

Remove air cleaner element from Intake Filter Housing .

Installation:

Clean intake filter housing from inside.

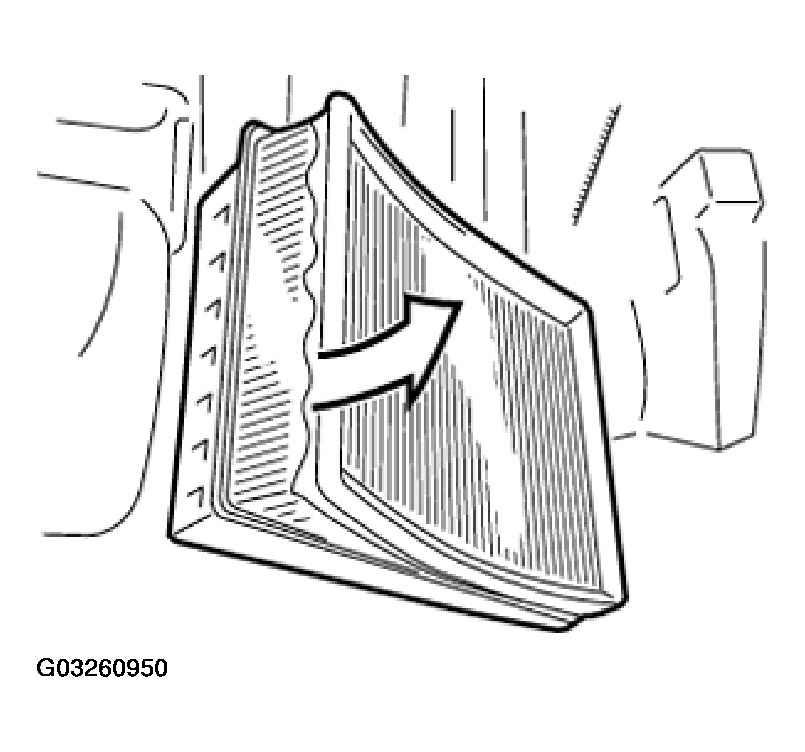

Install new air cleaner element.

Fig 3: Installing New Air Cleaner Element

Courtesy of BMW OF NORTH AMERICA, INC.
