12 61 250 Removing and installing/replacing oil temperature sensor (M54)
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Unfasten oil filter cap to enable engine oil in filter to flow back into the oil sump.
- Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .

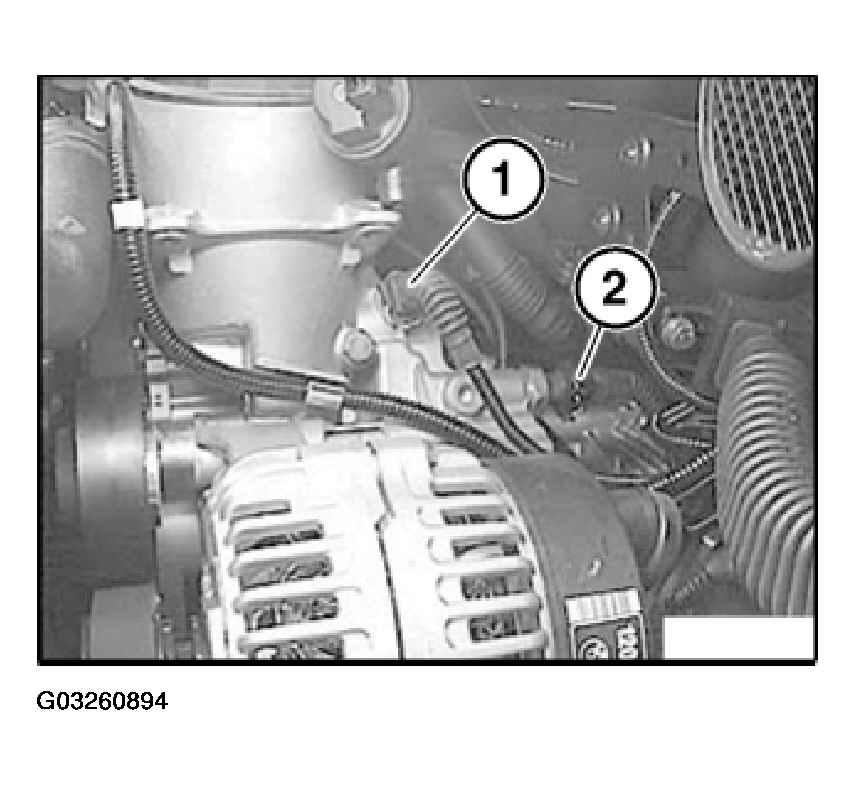

Installation location: at base of oil filter.
Disconnect plug connection (1).
Unscrew oil temperature sensor.
IMPORTANT:
Engine oil may emerge when the oil temperature sensor is removed - have a cleaning cloth to hand.
Catch and dispose of emerging engine oil.
Installation:
Tightening torque, see 12 61 1AZ and 12 12 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Screw on oil-filter cover tightly.
Check engine oil level, top up engine oil if necessary.
