Removal & Installation
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This repair instruction is valid for the following engines:>
- M52 / M52TU / M54 / M56
- S52 / S50US
Necessary preliminary tasks:
- Remove Ignition Coils .

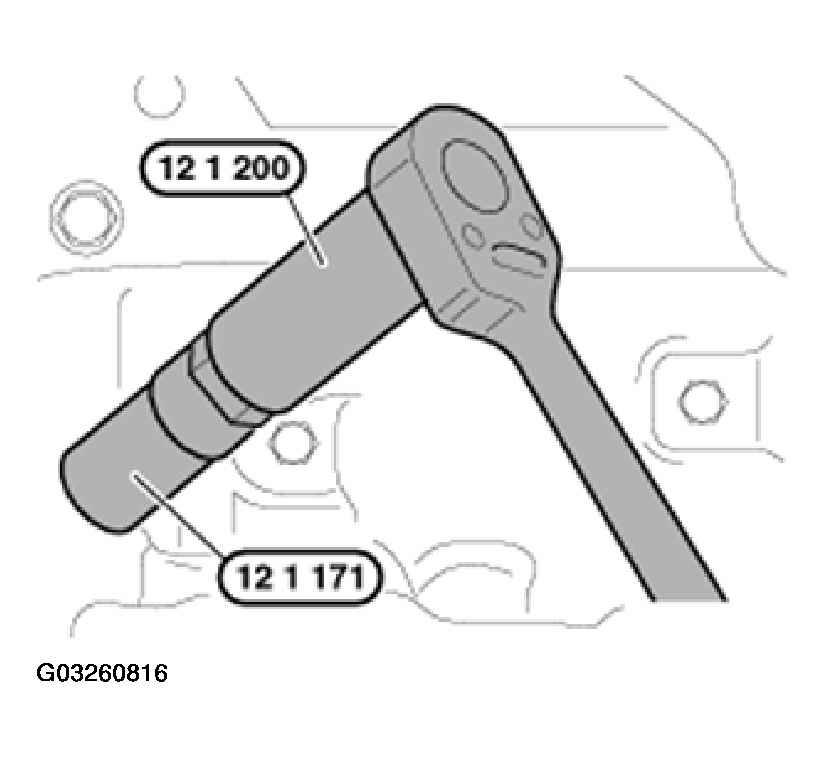

Unscrew and remove spark plugs with special tool 12 1 171 in conjunction with special tool 12 1 200.
Installation:
If special tool 12 1 200 is not used,
Tightening torque, see 12 12 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
