12 13 511 Replacing ignition coils (M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages.
Switch off ignition.
Remove ignition coil cover.

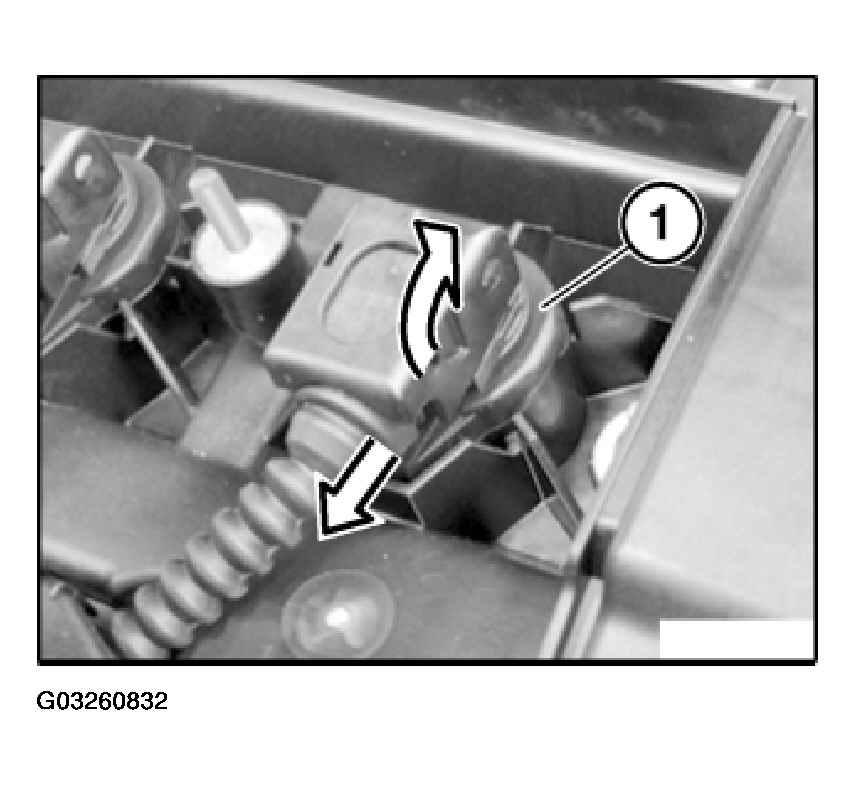

Unlock plug retainer of ignition coil (1) and disconnect plug.

Pull ignition coil (1) up and out.

This procedure is applicable to all ignition coils.

Fig 1: Removing Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

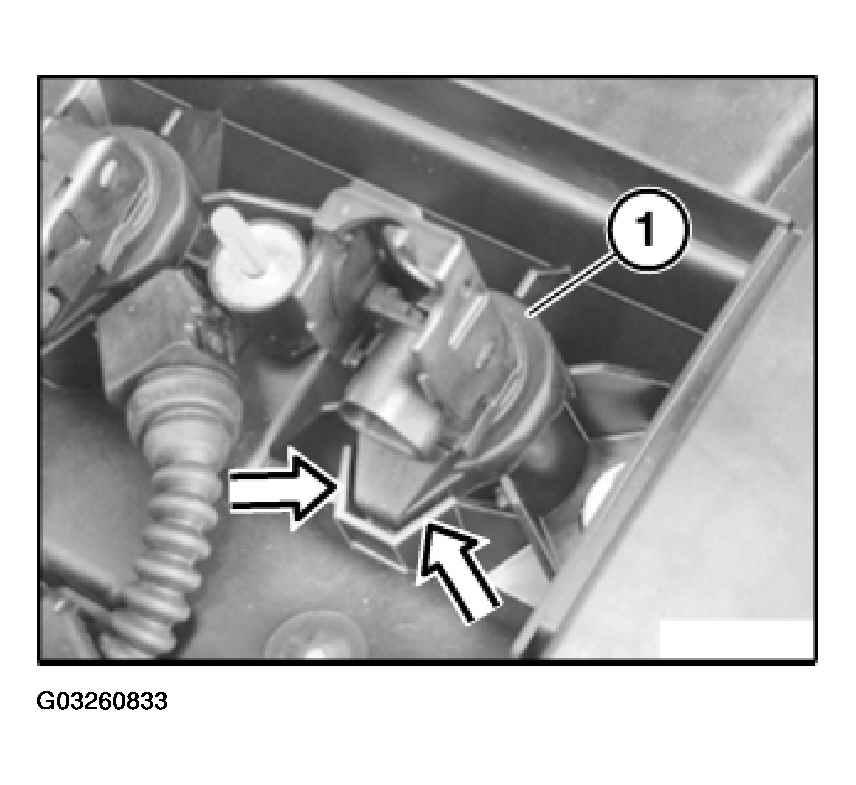

Check that rubber seal of ignition coil (1) is correctly seated.

Fig 2: Checking That Rubber Seal Of Ignition Coil Is Correctly Seated

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.

Now clear the fault memory.
