12 51 100 Replacing wiring harness section for ignition coils (M54)

Necessary preliminary tasks:

• Read out fault memory of DME control unit.
• Switch off ignition.
• Disconnect battery negative lead from battery.

  Follow instructions for Disconnecting And Connecting Battery  .

• Remove engine cover.
• Remove lower section of microfilter housing on right. See CABIN AIR FILTER .

Unfasten screws.

Remove electronics box cover (1).

Installation:

Engage electronics box cover (1) correctly in hinges.

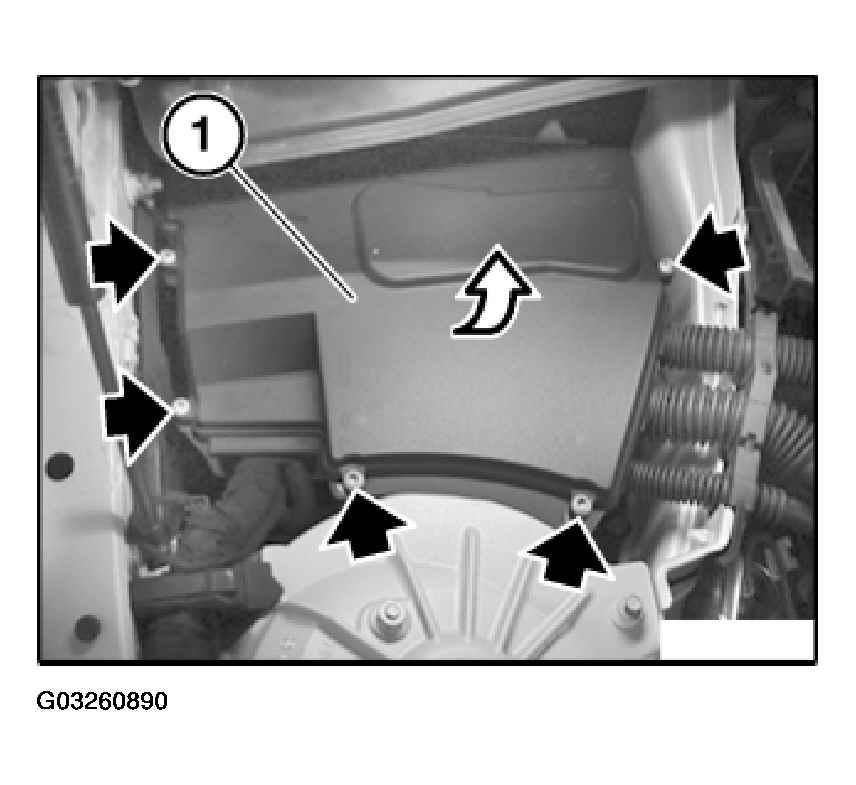

Fig 1: Engaging Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from DME control unit.

Lift wiring harness with profile seals (2) out of partition or electronics box.

Installation:

To prevent leaks, you must install profile seals (2) correctly.

Unlock and disconnect plug (3).

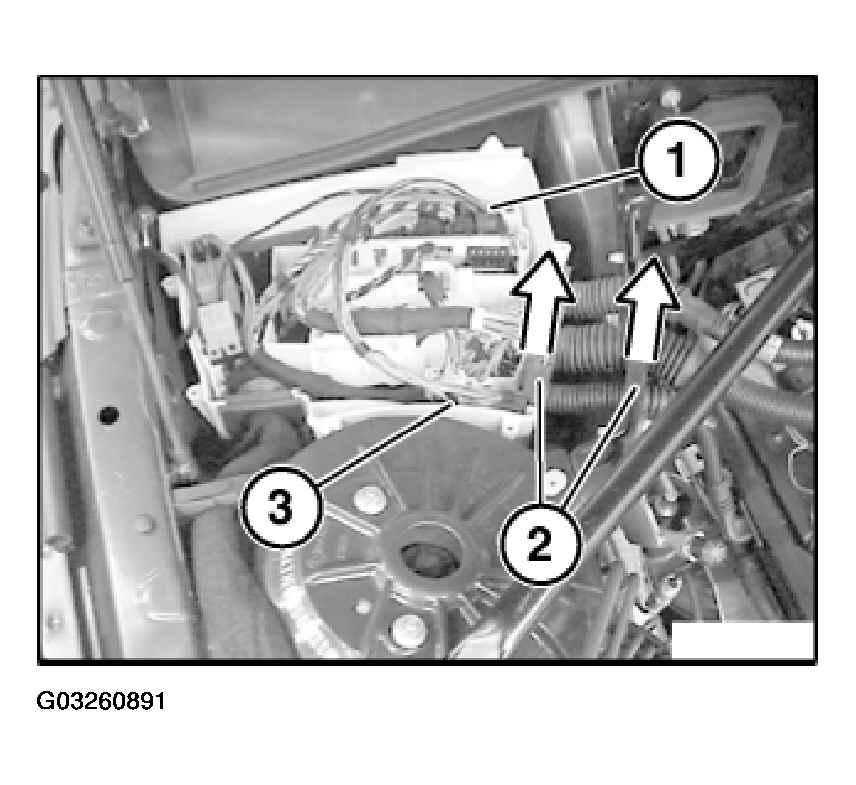

Fig 2: Unlocking Plug And Detaching From DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach grounding strap (2) of cable duct from connecting plates (1) of ignition coils.

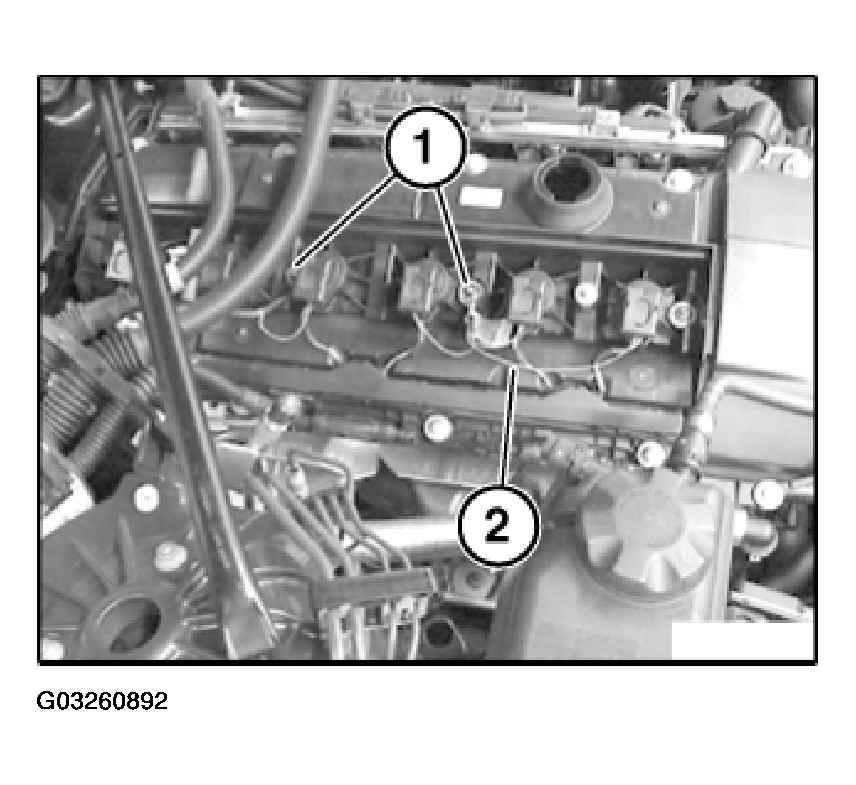

Fig 3: Detaching Grounding Strap Of Cable Duct From Connecting Plates Of Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) and detach from ignition coils.

Unlock cable strip (2) and remove towards top.

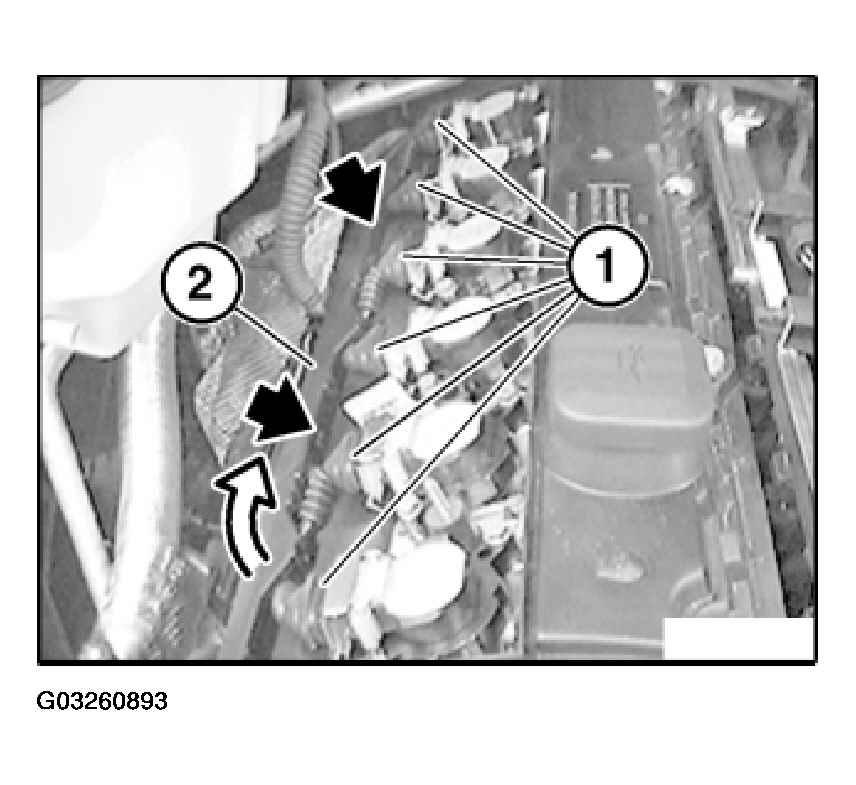

Fig 4: Unlocking Plug And Detaching From Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
