12 31... Replacing alternator belt pulley
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install alternator drive belt. See GENERATOR BELT PULLEY .
Depending on alternator type, grip shaft with:
- hexagon socket
- multi-tooth socket or
- Torx socket wrench

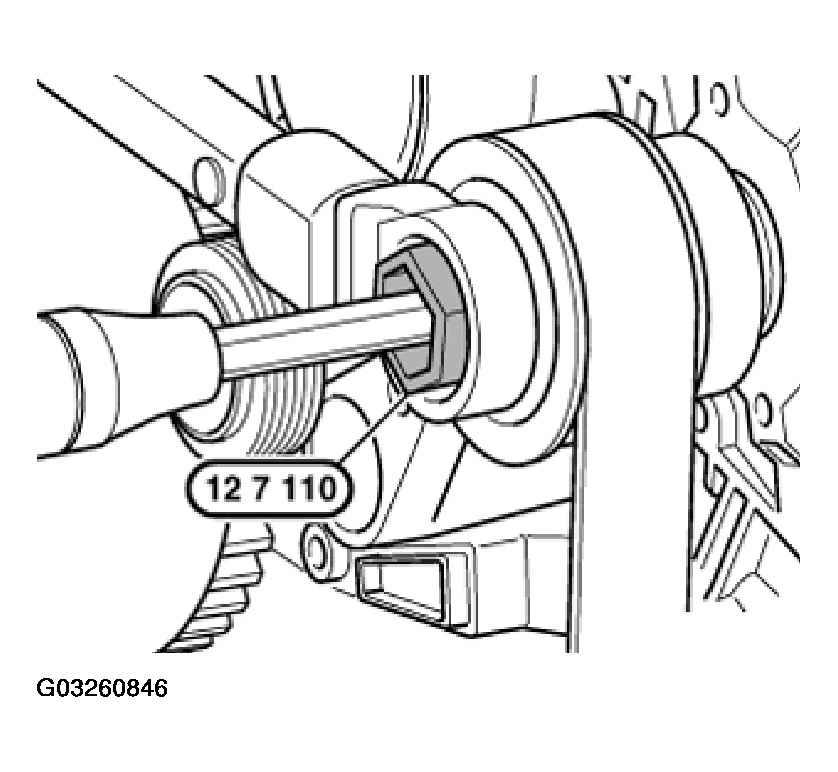

Release nut with special tool 12 7 110.
Installation:
Tightening torque, see 12 31 2AZ / 12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
