Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Flywheel removed!

Using hydraulic press (1) and special tool 21 2 051, press out dual-mass flywheel downwards on engine side.

IMPORTANT: Risk of damage:

Roller bearing must not be driven out.

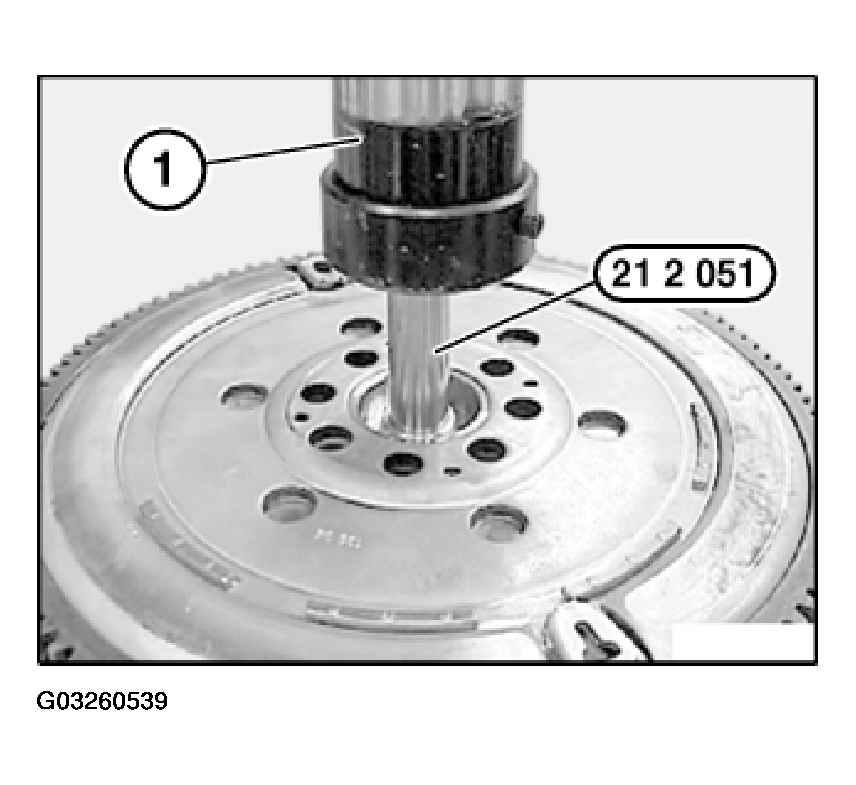

Fig 1: Pressing Out Dual-Mass Flywheel Downwards On Engine Side

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052.

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

IMPORTANT: Risk of damage:

Observe press-in instruction:

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:

Min. 2000N 1 mm before end of pressing in.

Max. 15000N during entire press-in procedure.

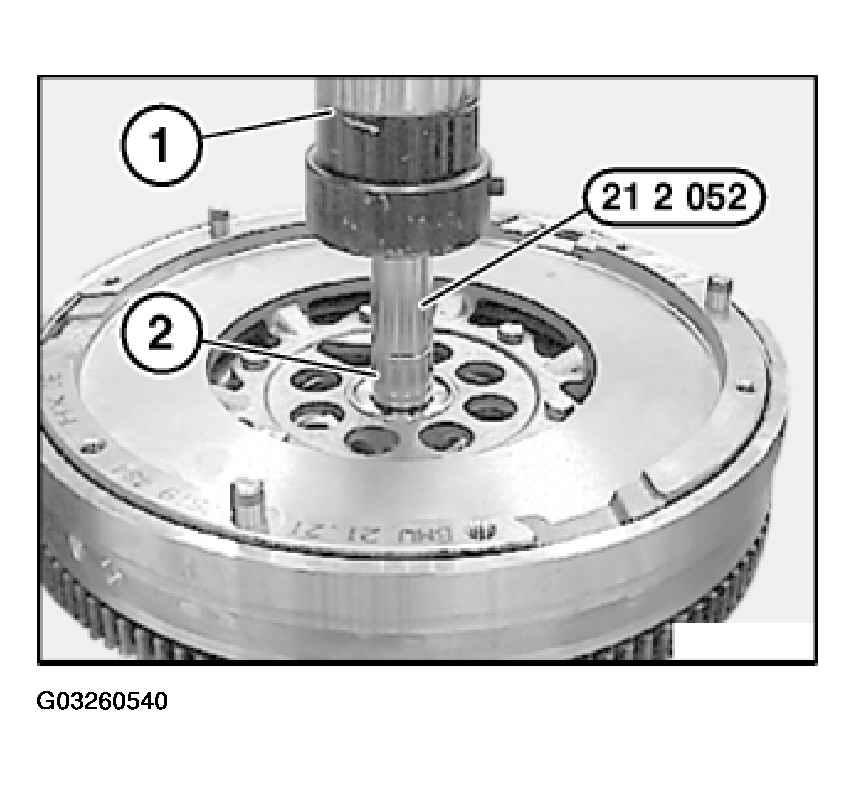

Fig 2: Pressing Roller Bearing Into Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.
