Removal & Installation
WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Follow instructions for disconnecting and connecting battery. See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Disconnect negative battery lead.
Observe specified tightening torque and safety precautions in all work steps.
STEPS FOR REMOVING ENGINE (M54)
| Work step | Note: |
|---|---|
| Lift engine hood into assembly position Secure engine in installation position with special tool Remove gearbox | After removing transmission, secure engine against tilting. |
| Remove intake filter housing | |
| Remove radiator | |
| Remove radiator lines. | |
| Remove expansion tank. | |
| Remove intake air manifold | |
| Release heater cooler line | |
| Unlock engine wiring harness section on control unit and detach. | Wiring harness remains on engine. |
| Unlock spark plug wiring harness section on control unit and detach. | Wiring harness remains on engine. |
| Disconnect positive lead at battery connection point | |
| Detach vacuum line from brake booster | |
| Unlock line on tank venting valve and disconnect. | |
| Remove both monitor sensors | |
| Release negative lead on engine support arm. | |
| Remove alternator drive belt | |
| Release power steering pump on bracket, hydraulic lines remain connected. | Do not remove power steering pump, secure against falling down. |
| Release A/C compressor on bracket, lines remain connected, do not evacuate A/C system. | Do not remove A/C compressor, secure against falling down. |
Vehicles With Dynamic Drive Only:

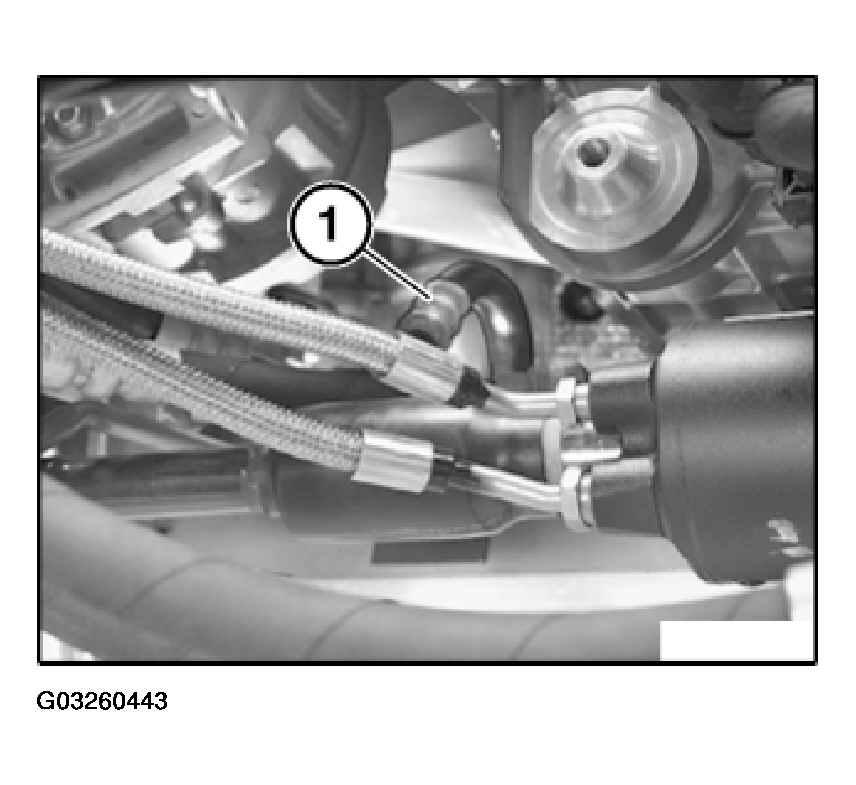

Unlock and detach hydraulic line (1).

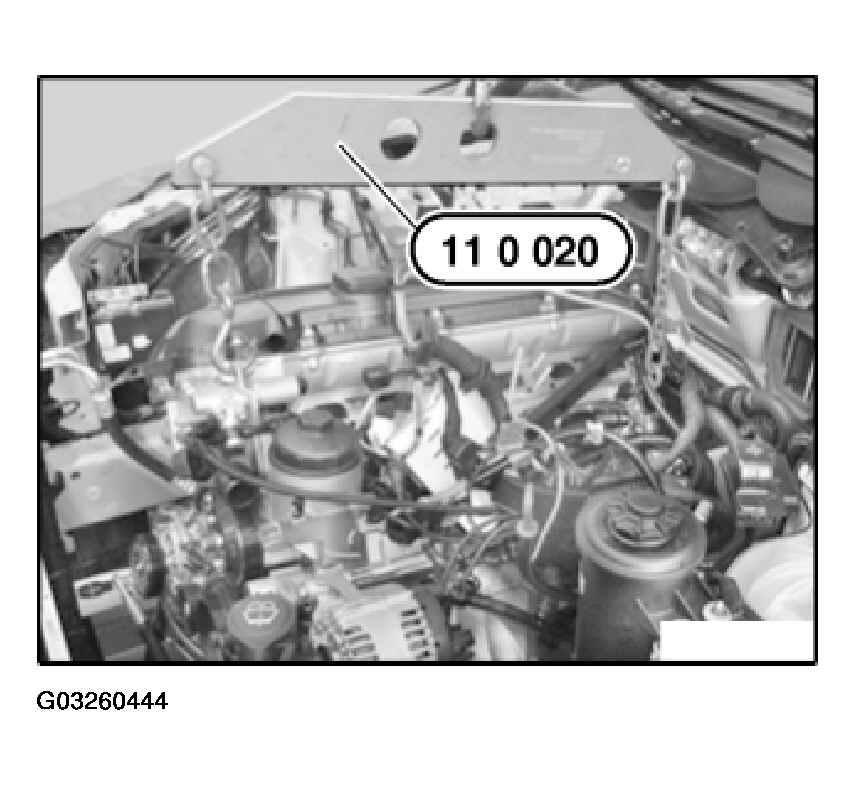

Suspend engine from special tool 11 0 020.
Release engine mounts on left and right from above.
Protect assembly compartment and hydraulic lines against damage.
Installation:
Observe specified tightening torque and safety precautions in all work steps.
