11 00 039 Checking compression of all cylinders (M60 / M62 / M73 / S62 / M54)

WARNING: This page is about a different car, the 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 530i, and 2004 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

11 0 224
11 0 226

IMPORTANT: High tension mortal danger!

Cut off power supply to ignition coils (disconnect plug connection at DME control unit).

Necessary preliminary tasks:

Connect charger or a second battery.
Read out fault memory of DME control unit
Pull fuel pump relay or fuel pump fuse.
Start engine and allow residual fuel to drain out (pressure reduction).
Remove all spark plugs. See 12 12 011 REPLACING ALL SPARK PLUGS .

IMPORTANT: Check Schrader valve on special tool 11 0 226 for tight fit.

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 224.

NOTE: Check that sealing ring is in perfect condition (see arrow).

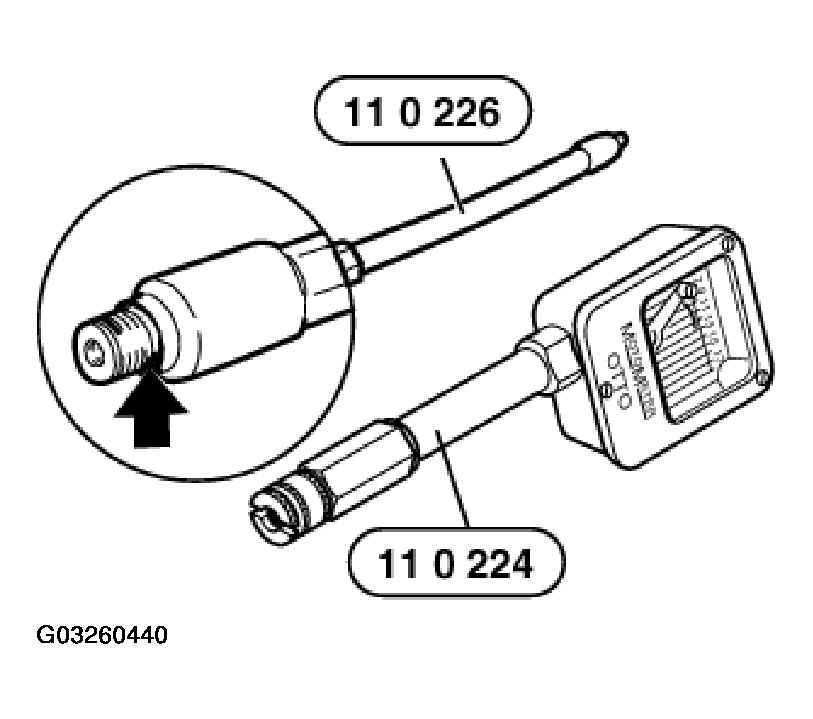

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Depress accelerator and actuate starter until compression stops rising.

Compression pressure.

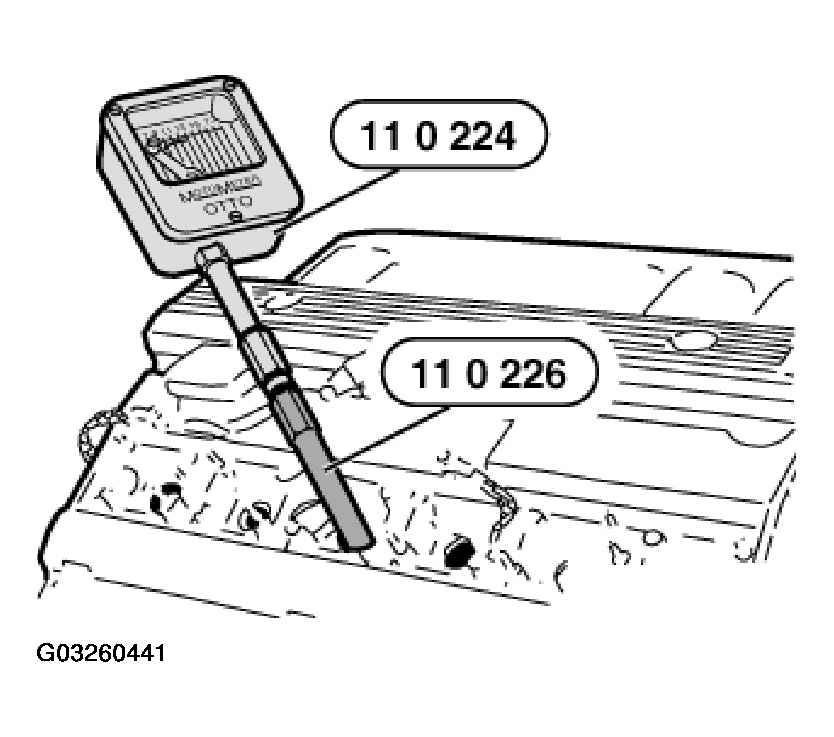

Fig 2: Measuring Compression Pressure

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Now clear the fault memory.
