17 11 370 Removing and installing/replacing cooling loop for power steering (S85)
WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove fan cowl with electric fan .
- Draw off hydraulic fluid.
Recycling:
Catch and dispose of hydraulic fluid.
Observe country-specific waste-disposal regulations.
Unlock and disconnect left and right oil lines. Release screw.
IMPORTANT:
Risk of damage to connecting pipes.

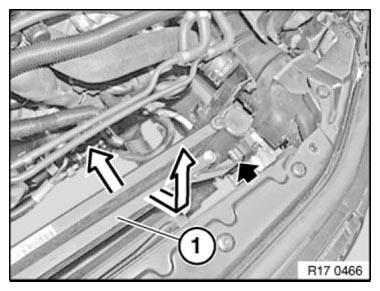

Carefully press cooling coil on left towards front, then clip out on right and remove.
Installation:
Bleed power steering.
