61-4323 Crimping tool

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

0494161 614323 Crimping tool Minimum set: Measuring and testing equipment MP

NOTE: (Crimping head) For crimping optical fibre contacts [Released]

Storage Location

M22 x 201

SI number

02 04 06 (293)

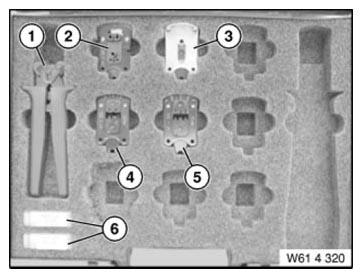

Fig 1: Identifying Crimping Tool (0494161)
G08465692Courtesy of BMW OF NORTH AMERICA, INC.
