61-1352 Mandrel

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

0492741 611352 Mandrel MP

NOTE: (Push-in mandrel) [Discontinued]

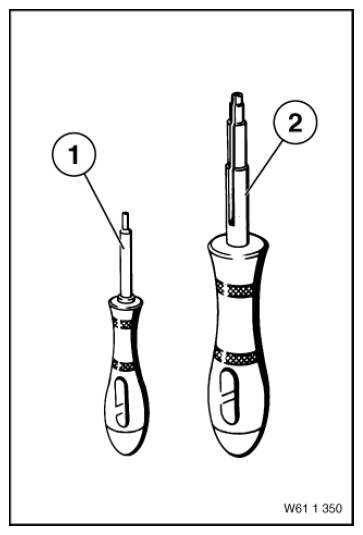

Fig 1: Identifying Mandrel (0492741)
G08524861Courtesy of BMW OF NORTH AMERICA, INC.
