62 11 280 Removing and installing (replacing) instrument cluster

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage: (ESD PROTECTION) .

Extend steering wheel completely and lower.

Release screws (1). Tightening torque 62 11 1AZ .

Pull instrument cluster (2) forwards a little.

Disconnect associated plug connection.

Remove instrument cluster (2).

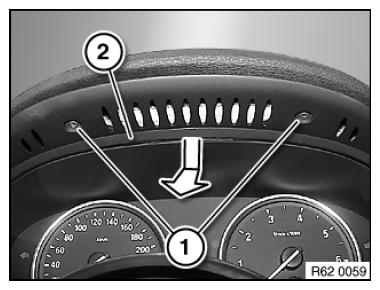

Fig 1: Removing Instrument Cluster With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Check values for Condition Based Service (CBS) and correct if necessary.
