62 30 010 Removing and installing/renewing head-up display

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage: (ESD PROTECTION) .

IMPORTANT: Comply with notes and instructions on HANDLING OPTICAL FIBRES .
Risk of damage!
Do not scratch lens of head-up display.

Necessary preliminary tasks

Remove INSTRUMENT PANEL TRIM .
E71:
Remove WINDSCREEN AIR DUCT .

Remove sound insulation (1) from head-up display.

Disconnect plug connection (2).

Release screws (3). Tightening torque 62 30 2AZ .

Carefully feed out head-up display towards top.

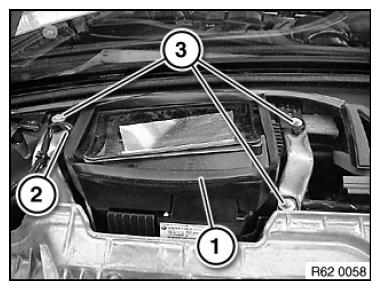

Fig 1: Identifying Sound Insulation, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean lens of head-up display.

Adjust HEAD-UP DISPLAY .

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
